Mason’s Build: Superlite SLC

[Kurt Hoffman]

Pacific Customs

Electric Speedometer Pulse Generator Ring For Porsche 930 Cv Joint

Electric Speedometer Pulse Generator Ring For Porsche 930 Cv Joint from Pacific Customs Unlimited your best source for Street, Off Road, Sandrail, Dune Buggy, Manx, Rock Crawler, Volksrod, or Mud Buggy VW Parts.

www.pacificcustoms.com

and Moore Parts

930 CV Joint Pulse Generator Ring For Hall Effect Speedo Sensor VDO340020

Pulse Generator - 930 CV Joint: Electric Speedometer Pulse Generator Ring For Use With Sending Unit Vdo340020 , 930 C.V. Joint, Each

www.mooreparts.com

both sell a bolt on option that may work for you.



[Steven Lobel]

I have a quick question about tone rings (reluctor rings/ABS wheel sensor rings).

I have contacted RCR 3 times to buy the rings without success and I have also spoken to The Driveshaft Shop and they are unaware of this item.

Is there an alternative source for these press on rings for the Porsche 930 axles used with my Graziano?

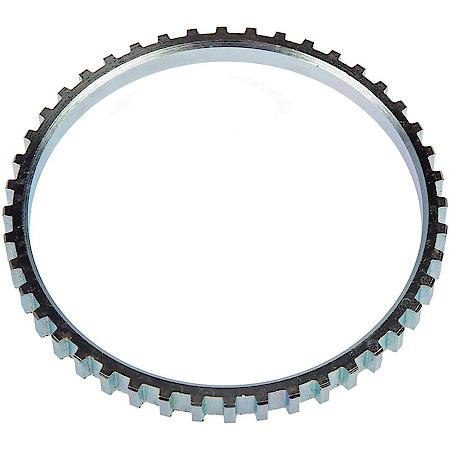

View attachment 109572

For my GT-R with Graz and RCR axles. CV part number is on my thread to see if same part number you use on SLC.

Steve's GT-R Build Thread

Is this a common problem? The LS7 in a GT-R has a stock water pump that can be removed with the engine in place. 6 bolts (all the same size). Belt slides off tensioner and can be removed. 4 hoses removed from water pump (used clean 5 gallon bucket to be able to recycle some Dex-cool). SLC...

www.gt40s.com

Driveshaft shop part number: ABS-GM-10-X9
ABS Ring Machined for 108mm CV
$40.00

The Driveshaft Shop
Phone # 1-704-633-2380

Fax # 1-704-633-2385

[email protected]



[Mason S]

Kurt, I kept running into the bolt-on versions That you linked but my ecu specifies a higher tooth count if I want to use the built in traction control.

Steven, thanks for the part Numbers that will work perfectly since my CV axles are 108mmx40mm.



[Mason S]

Latest update is on YouTube, check it out!



[Jasper]

Yeah, got that shout out on DR25 and SCL.. :-D you fallen down the same rabbit hole called HP Academy, and you will never look at your wiring the same ever again.
Also.. you want to redo your entire car at least another 3 times after this.. believe me, been there.



[Mason S]

Jasper! You were the catalyst.

I’ve actually bought the entire lifetime HPacademy.com package and I’m taking the Motorsport level wiring course. Thanks for your advice!

I have resisted terminating/sheathing long runs while I continue to document and test every circuit and sensor. I’m so nervous to bundle it all up!

I discovered that my headlight switch is bad and since my existing column is a bit crusty I bought a salvage 99-02 Oldsmobile Intrigue column to swap out.

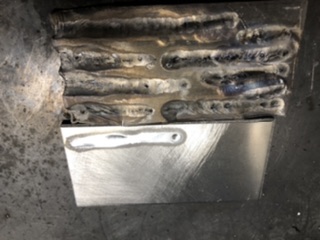

Also, in other news I tracked down my aluminum welding issues to a bad bottle of Argon. After weeks of leak testing, replacing the torch and switching tungstens, the bad gas was the culprit and now my welds are beautifully shiny!



[Mesa]

Nothing like 'bad gas' to ruin your day.



[Jasper]

I have resisted terminating/sheathing long runs while I continue to document and test every circuit and sensor. I’m so nervous to bundle it all up!

My advice.. do all the prototyping you are doing right now. Then do the drawings and design as you were taught in the courses, and build a wiring loom from scratch based on all your learning from the prototyping phase. Drive the car for a while in this prototyping phase too, You'll learn about things that work, things you'd want to include, etc.

Starting from scratch will allow you to build the harness exactly to the spec you want, have quick connectors to easilty disconnect your body shells/dashboard/engine loom etc.
Reuse your connectors, use new terminals everywhere, use tefzel wiring for reliabilty and small packaging.

Awesome progress, on a magical combination of the V10 in this package, keep going!



[Mason S]

Jasper, this is fantastic advice. Thinking of this as a prototype harness will free up my mind to experiment and develop the car without being obsessed about every wire run being perfect on the first try. Thanks dude!

BTW Do you use the fancy PDMs or the normal fuse box and relays?



[Mason S]

I‘m replacing my steering column due to a bad headlight switch and sticky bearings. Previous owner had let it sit in the elements, so it was not in good shape.

A low mileage salvage 99-02 Oldsmobile intrigue column was $80 Shipped and it is buttery smooth and It needs a few modifications to fit the Superlite.

Steering Column mods

1. Remove clockspring electronics
2. wire wheel removal of surface rust
3. Grind off welds on the tail end bracket to loosen it
4. Trim bracket to fit Superlite dash mount bracket
5. Weld tail bracket in vertical position
6. Insert Double-D steering shaft that protrudes 1 1/4” beyond steering tube
7. weld DD steering shaft to tube
8. Paint column and brackets black
9. mount column
10. Install switches, cover, steering wheel
11. Done

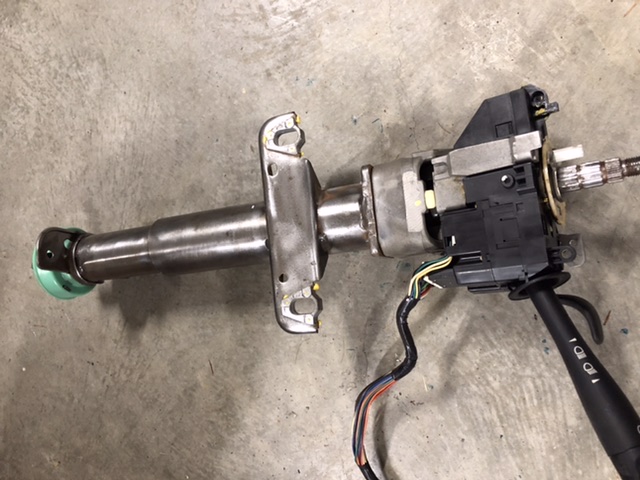

Top is original / Bottom is the replacement column

After wire wheel rust removal

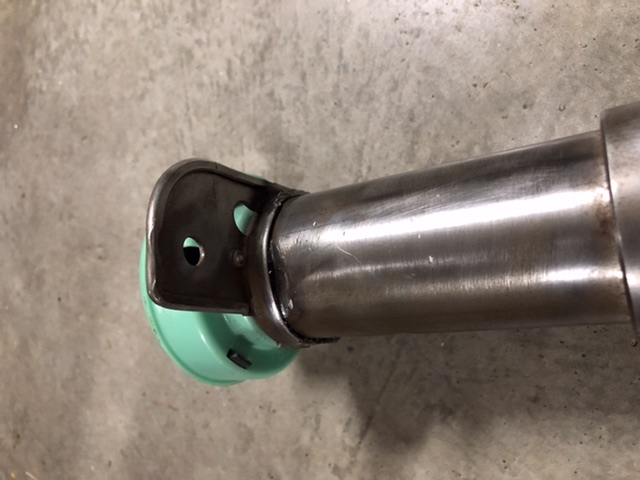

Tail bracket rotated, still needs trim and re-weld



[Mason S]

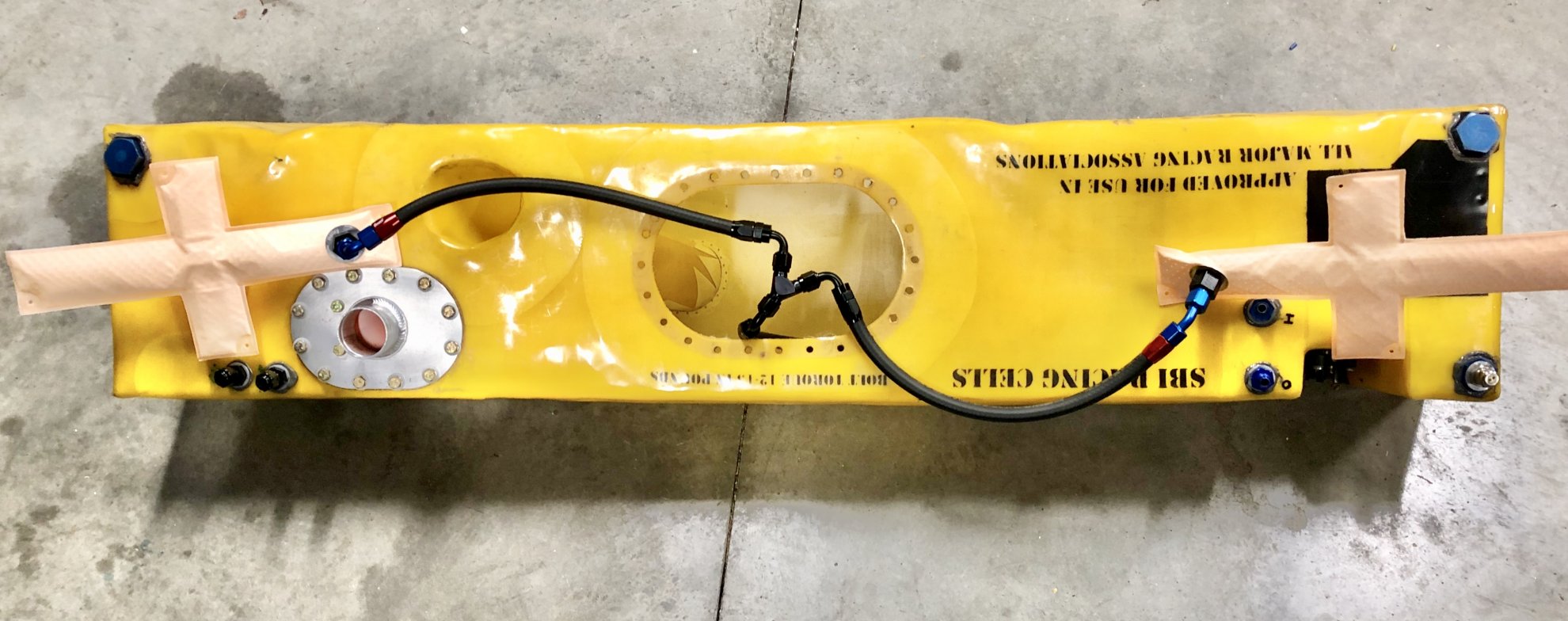

Before closing up the fuel tank I added a second Holley Hydramat to my fuel cell. This will provide fuel under heavy cornering even when the fuel level is very low.

Fingers crossed that this works well, since the Hydramats and fixtures are not cheap! The fuel cell has added cost and complexity to the build but it does give me peace of mind.



[Mark]

Wise modification Mason!

Since you've probably done some digging into this I was wondering what you think is a reasonable lifespan is for your fuel cell?



[Neil]

Mason, you've connected the two pickups with a "Y" connector into a single line so when only one pickup is submerged the other will be sucking air and no fuel will be picked up. I think you would be better off with one pickup in the lowest or rearmost place in your fuel cell. That fuel cell is a good idea!



[Mark]

Neil, the way Hydramat is designed the micro orifices "close" when they're not sucking fluid so this design should work and Holley themselves recommend this configuration.



[Neil]

I stand corrected, Mark. I didn't know they did that. Tricky!



[Mason S]

Thanks Mark, one other detail is that the Y should be centered so that the pressure is equalized.
If you do this also make sure you buy submersible fuel hose, I bought a 10’ spool of dayco for $120.
The official lifespan for the cell is 5 years max, and +2 years if it passes inspection so best case is 7 years.
I will make sure that my access panels are easy to remove, so that the 5 year R&R is not too bad.

Disconnect lines / remove driver seat / remove panel / Buy new custom fuel cell



[Mason S]

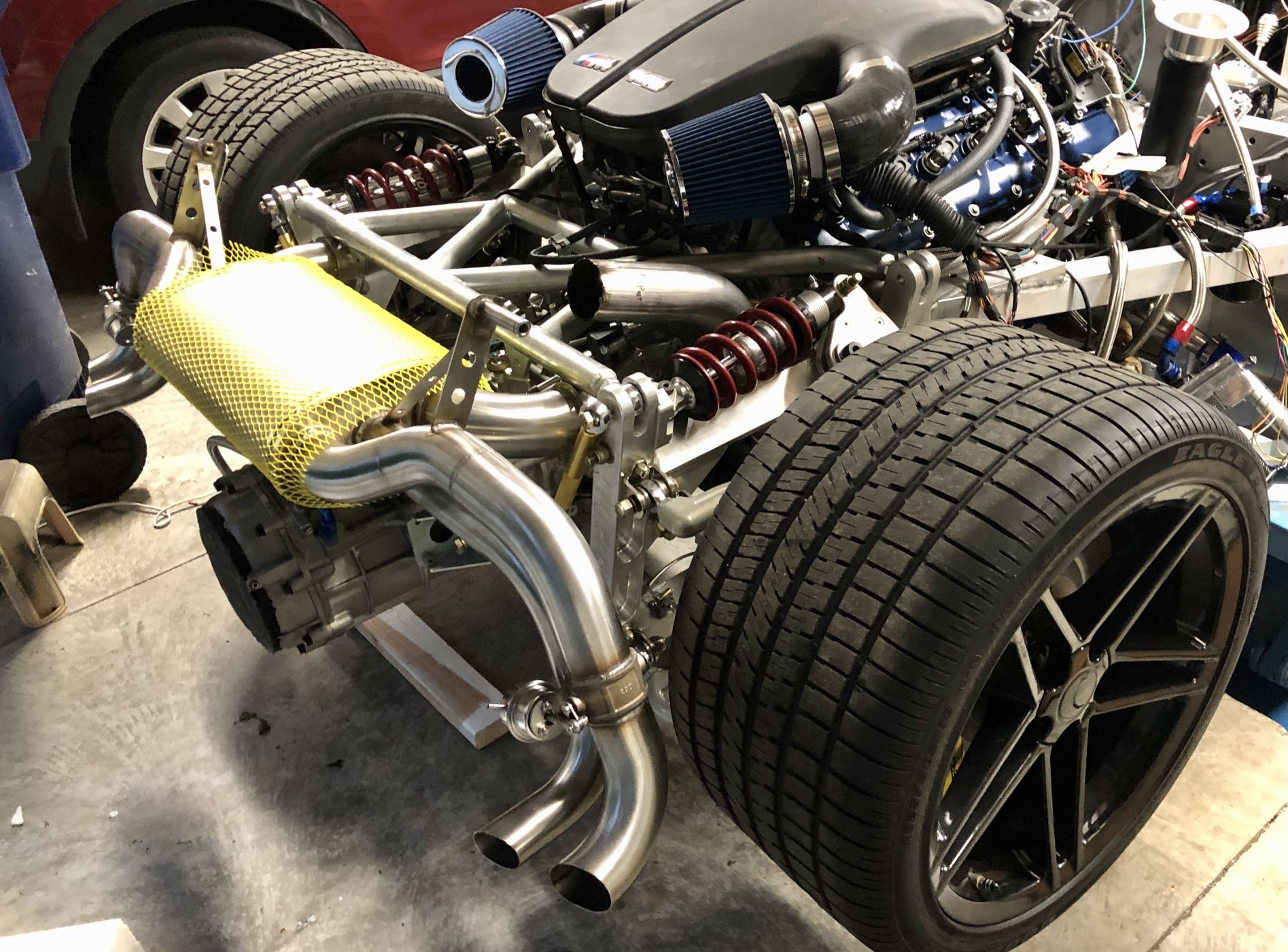

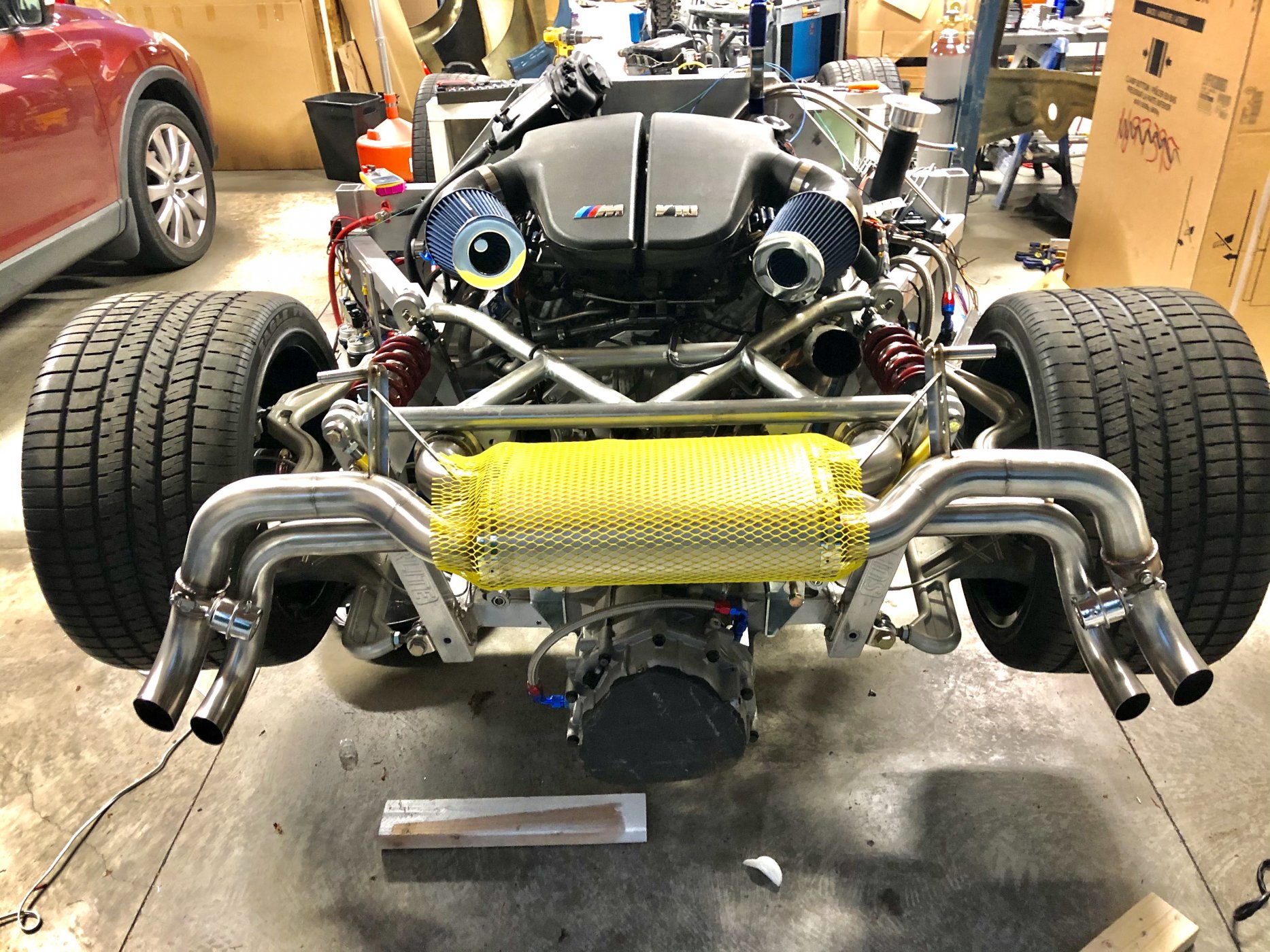

Things are about to get very loud up in here!

I’m so anxious to get this exhaust mounted, that I may hire some help.
It will be interesting to see if the current mounts fit under the race tail.



[Roger Reid]

Mason, who makes that muffler you used? I've been looking for something like that.



[Jasper]

Very nice muffler design indeed. Custom built on your rig I assume? Can't wait for you to start her up.. better be sharing a video here!



[Mason S]

Very nice muffler design indeed. Custom built on your rig I assume? Can't wait for you to start her up.. better be sharing a video here!

I contemplated a custom build, but the time investment in the titanium muffler chamber wasn’t worth it vs. buying a close fit and modifying it.

This is a Quicksilver Titan Active valve exhaust for Audi R8 / Lamborghini Gallardo. It has a nice high pitch ring since the muffler is titanium, but most of the tubing is stainless steel. This cost half of a full titanium tuned exhaust which can go from 8k-11k usd!

This system is tuned for the Audi/Lamborghini V10 engines and is designed to fit snug around the Graziano transaxle.
I need to fabricate mounts and source a vacuum pump to have electronic control over the exhaust valve.
