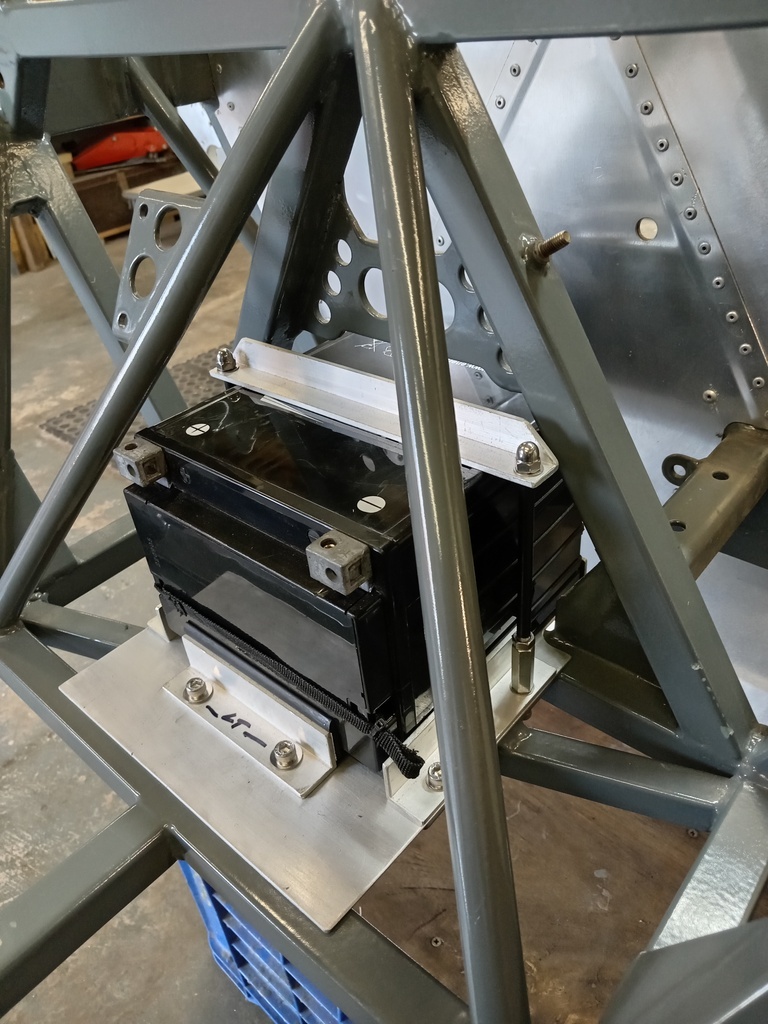

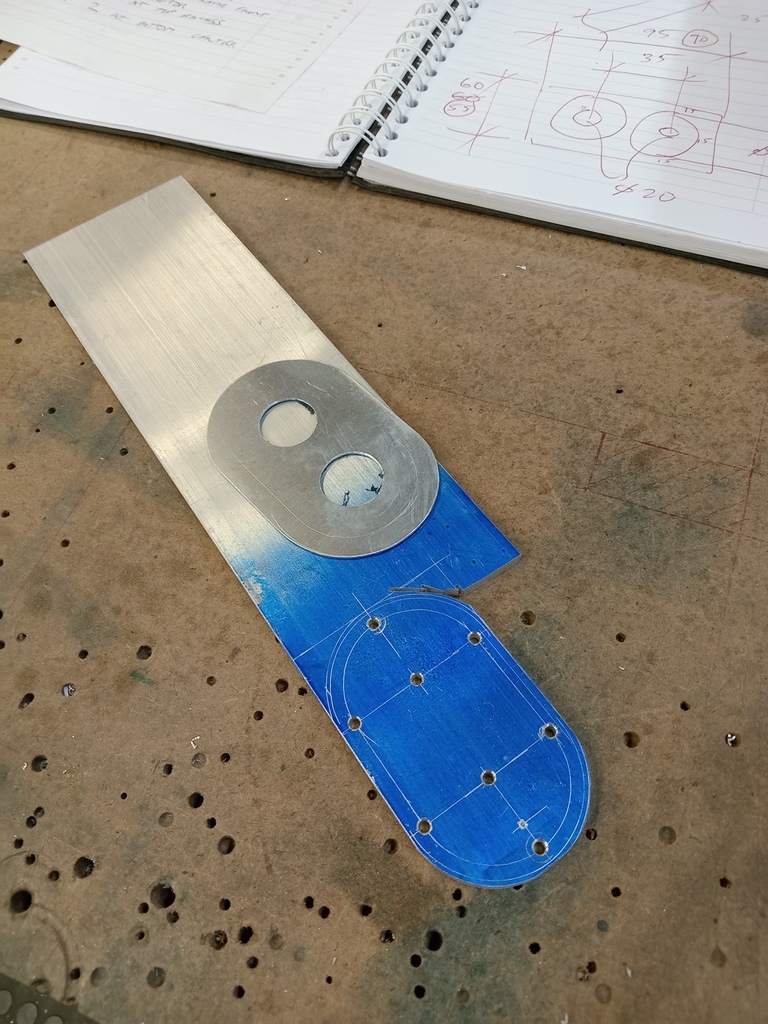

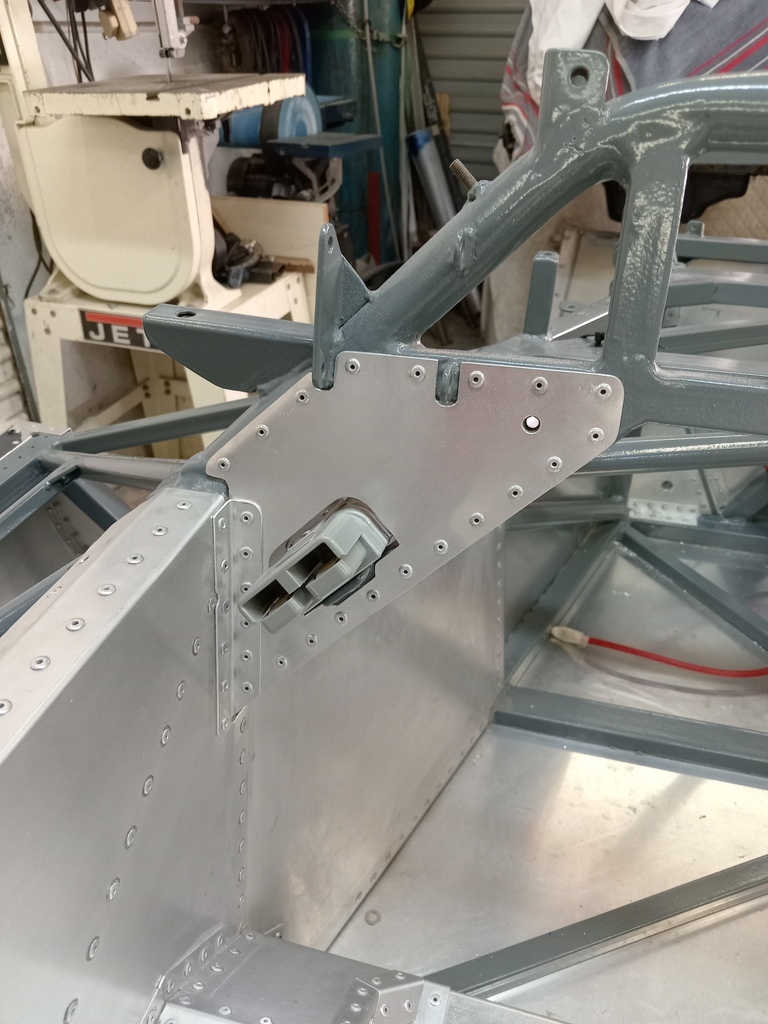

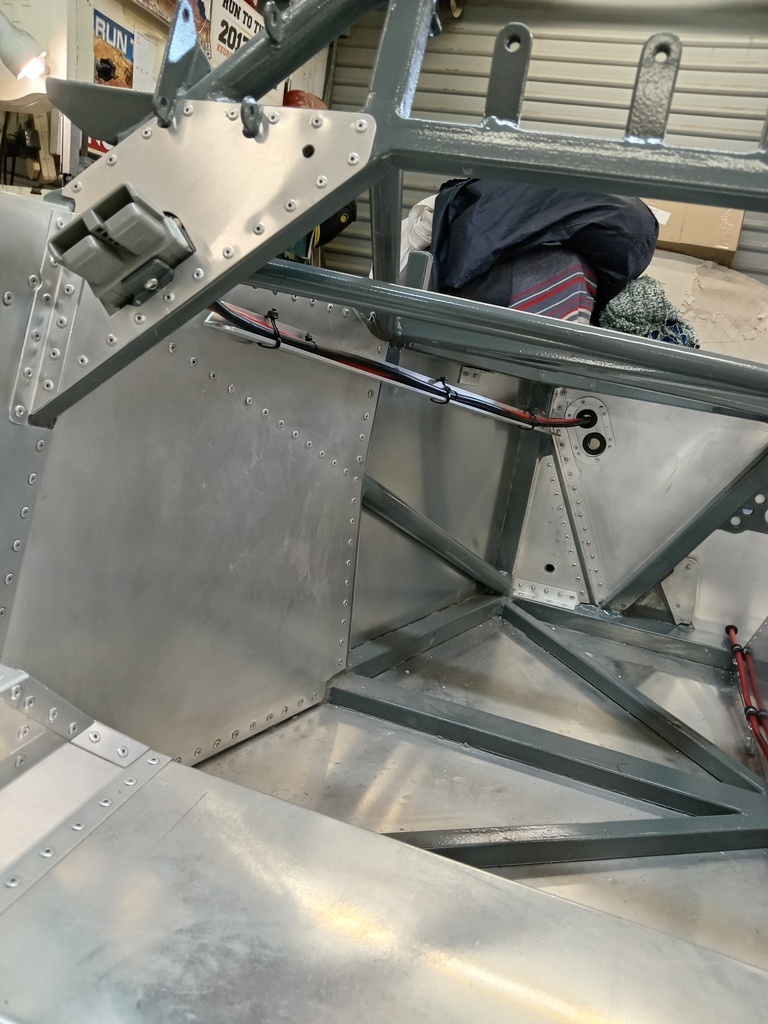

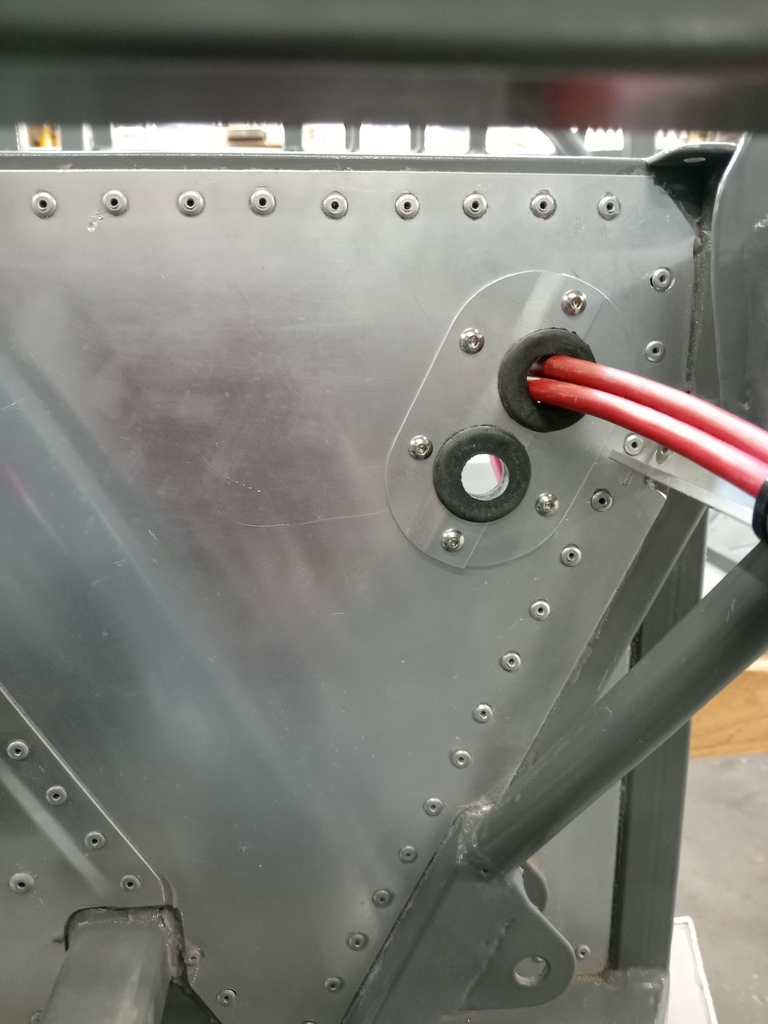

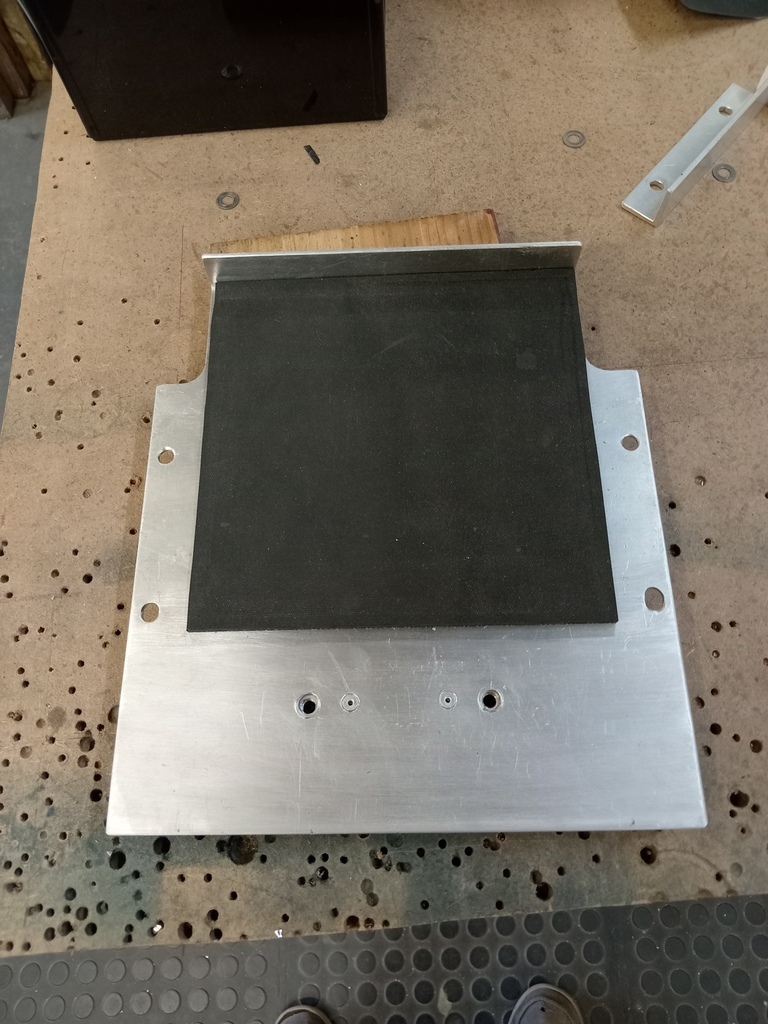

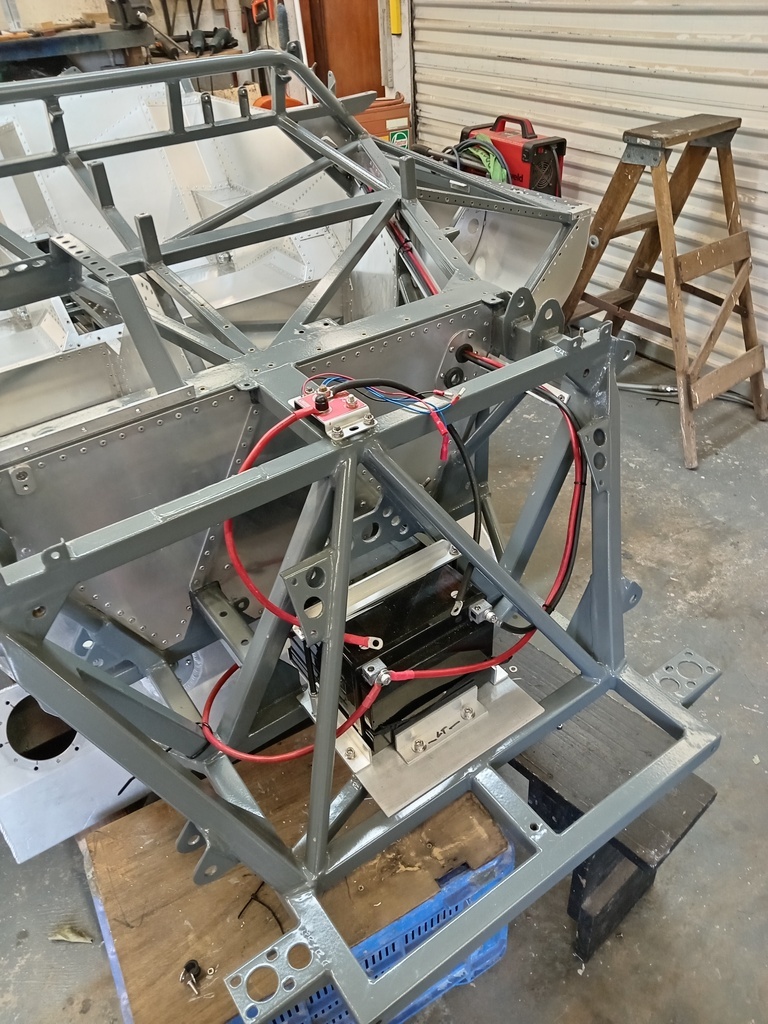

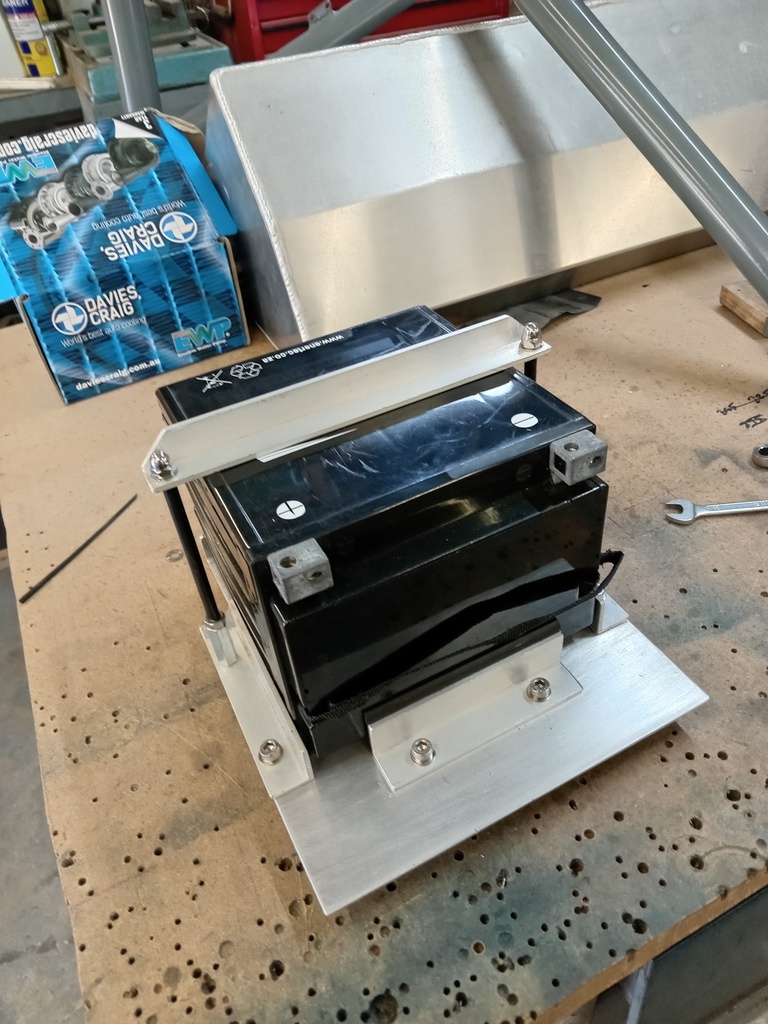

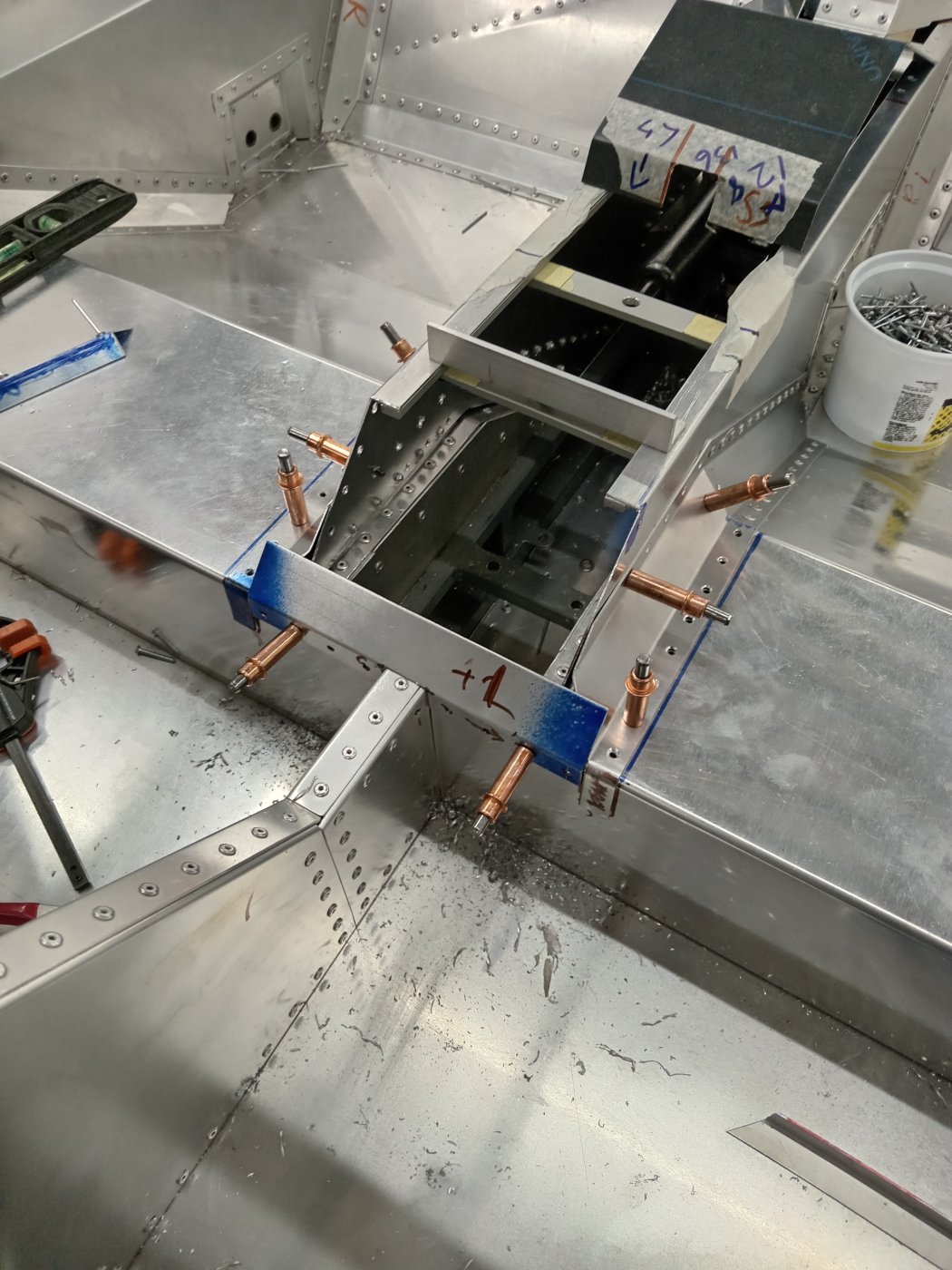

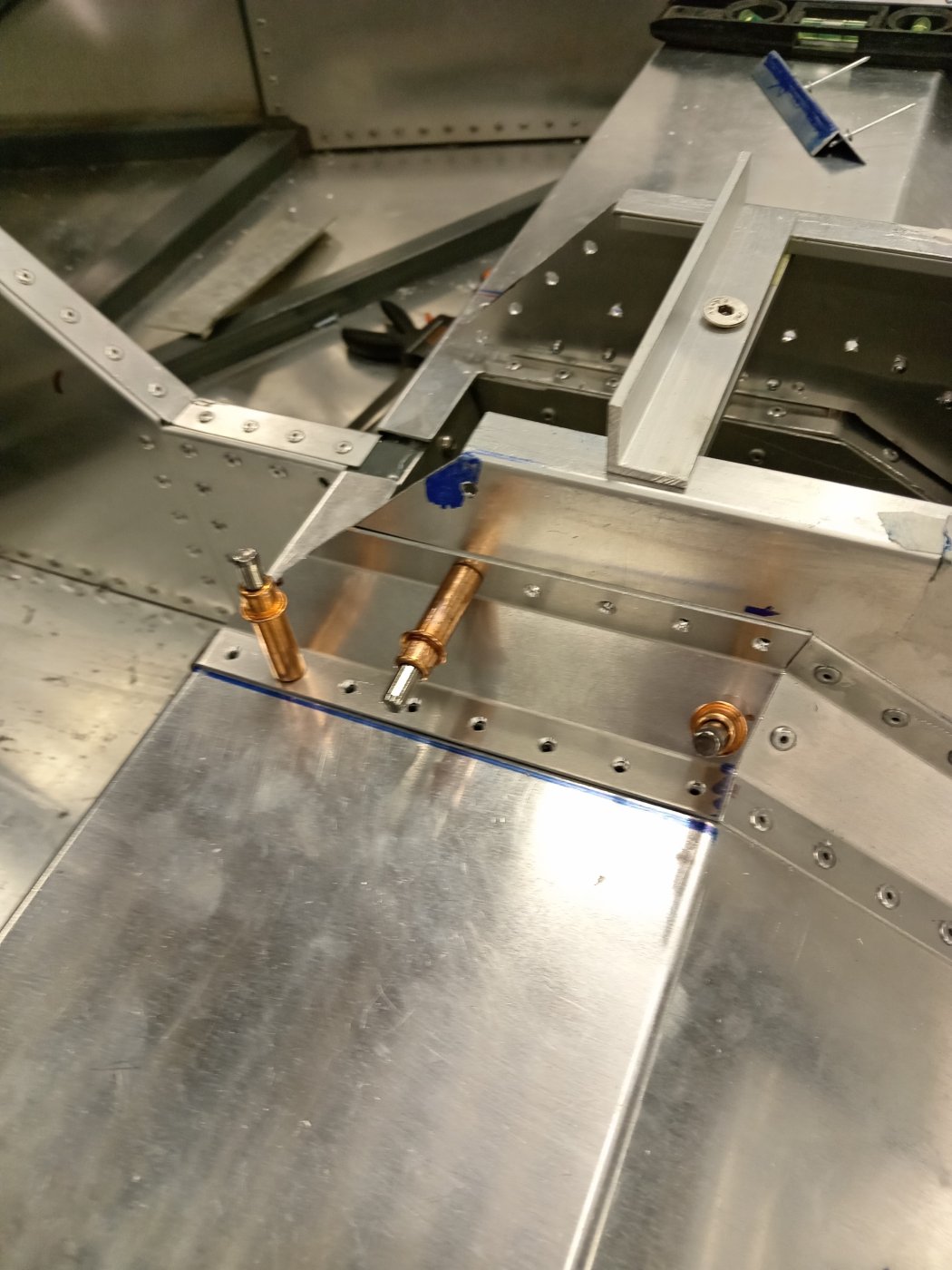

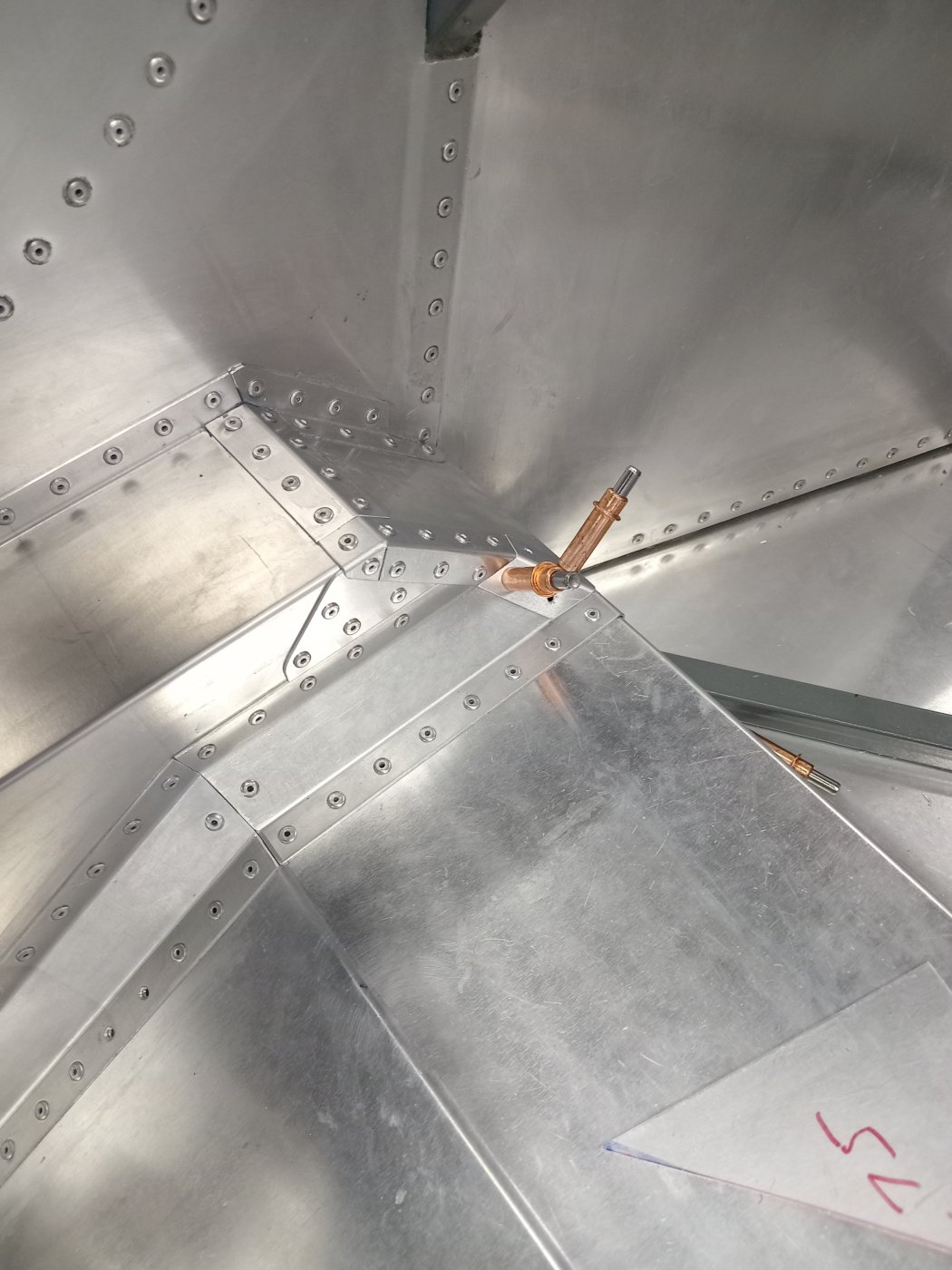

You might have noticed no pictures so far showing clecos. I finally broke down and ordered some, should have done so much earlier, they definitely make fitting up much easier.

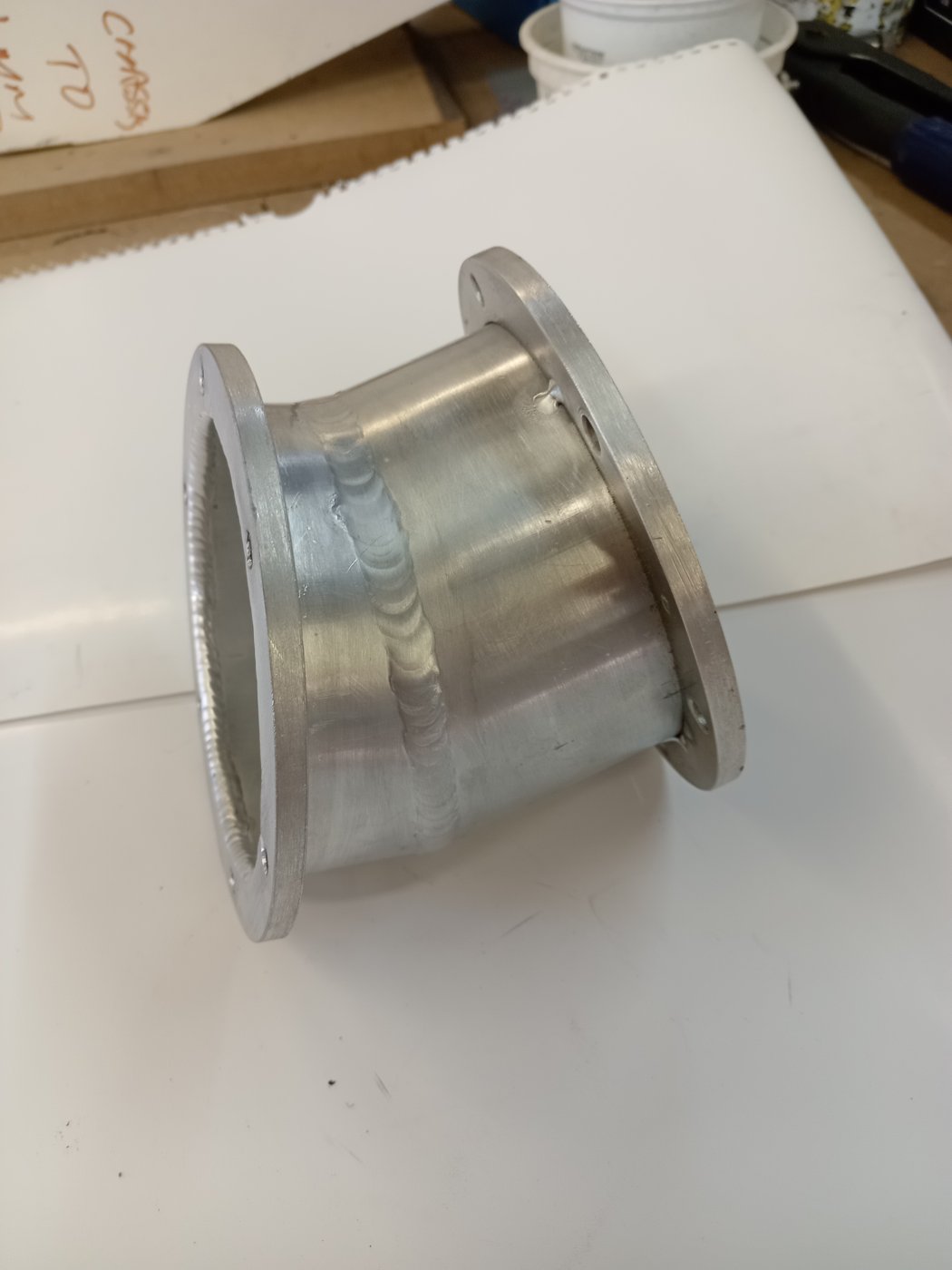

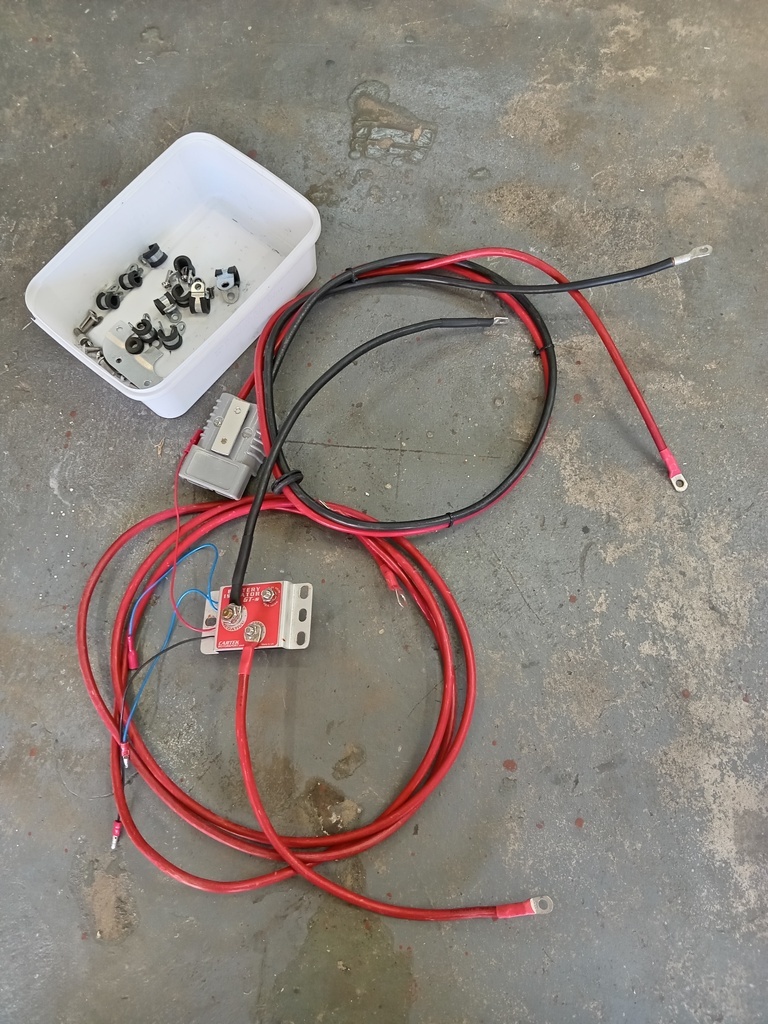

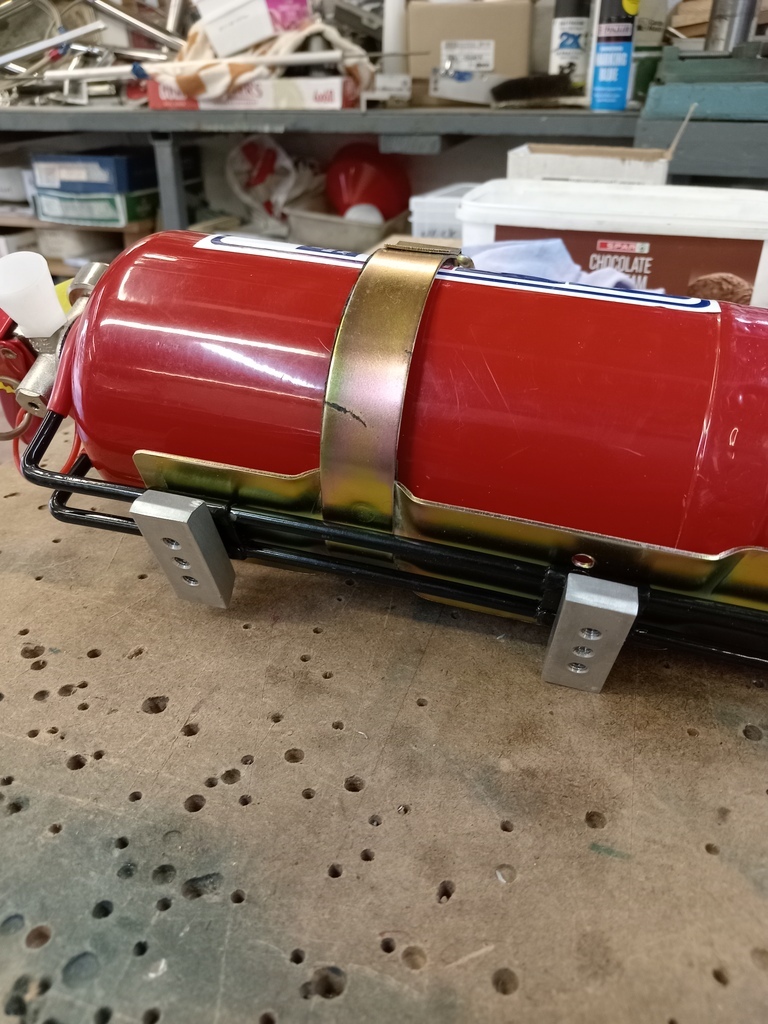

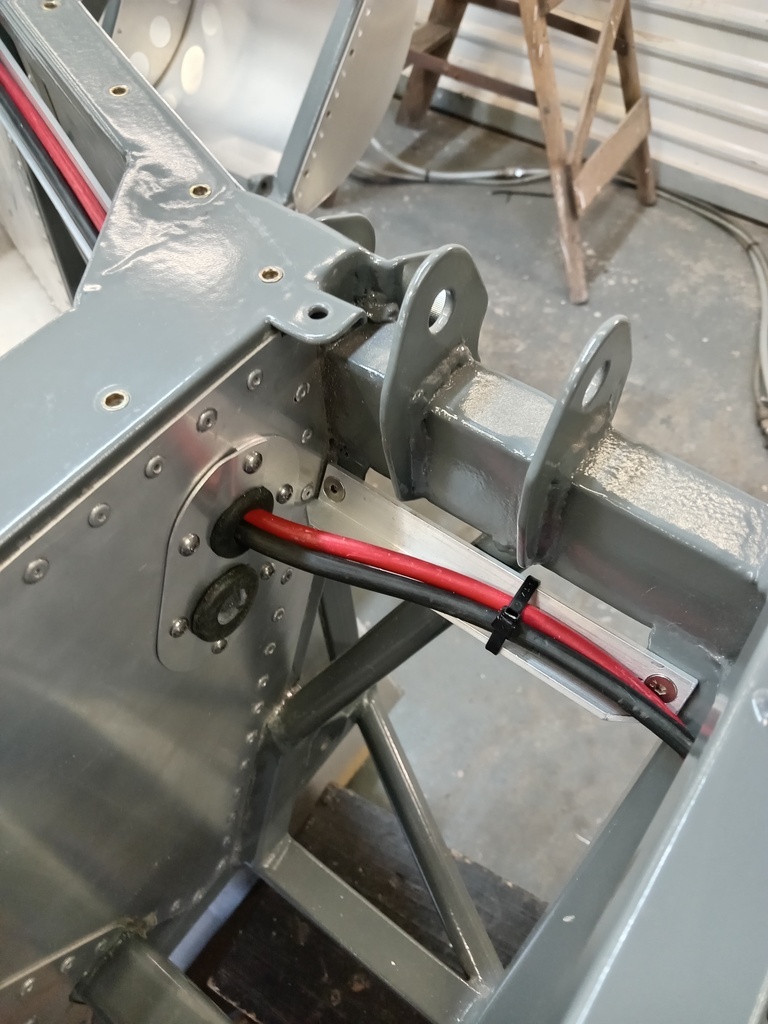

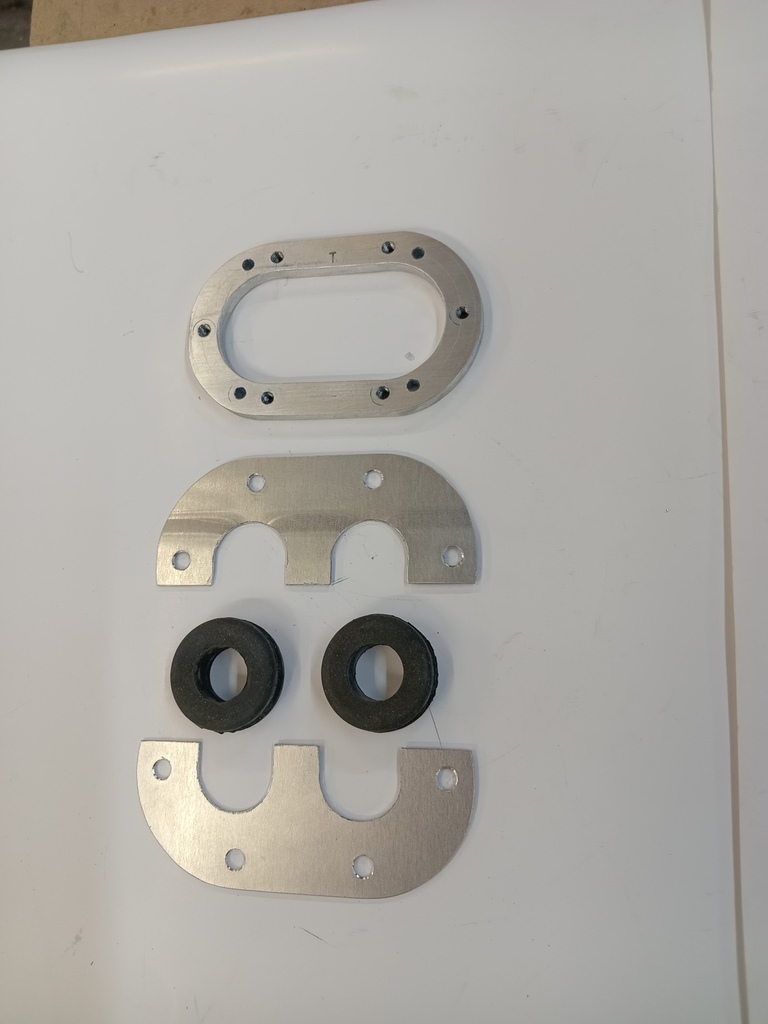

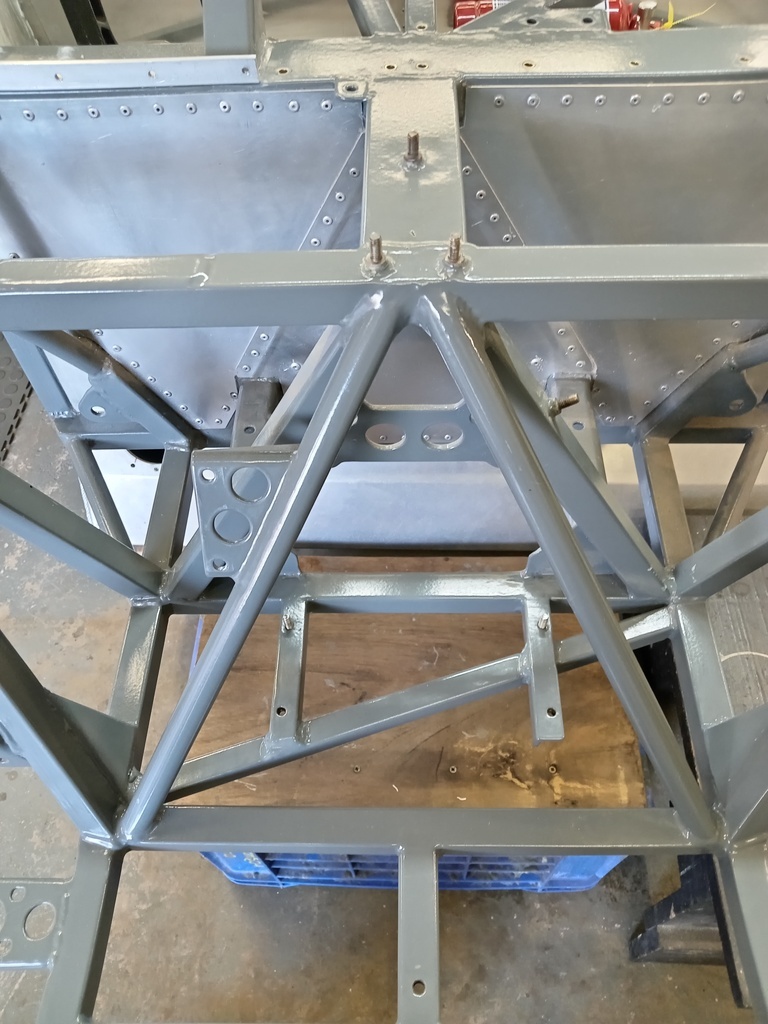

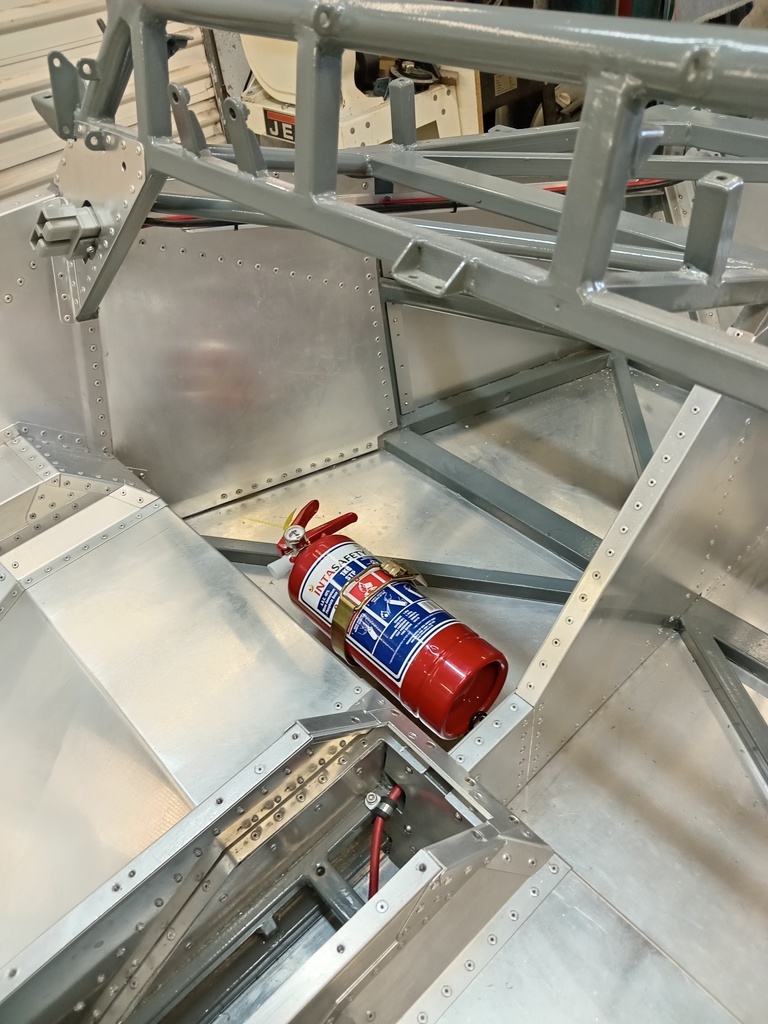

CANAMSA - SA stratch build
- Thread starter Fred W B
- Start date

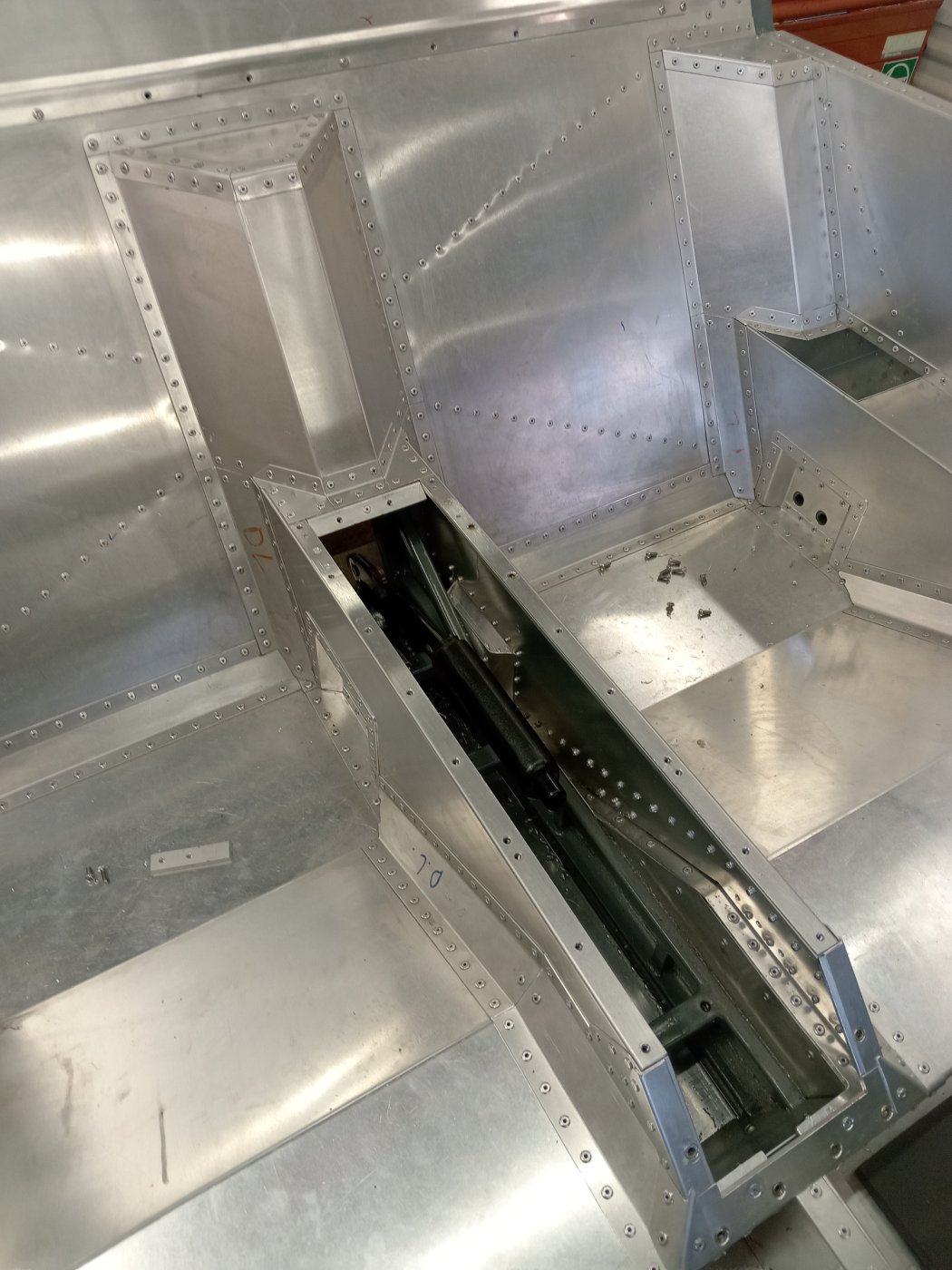

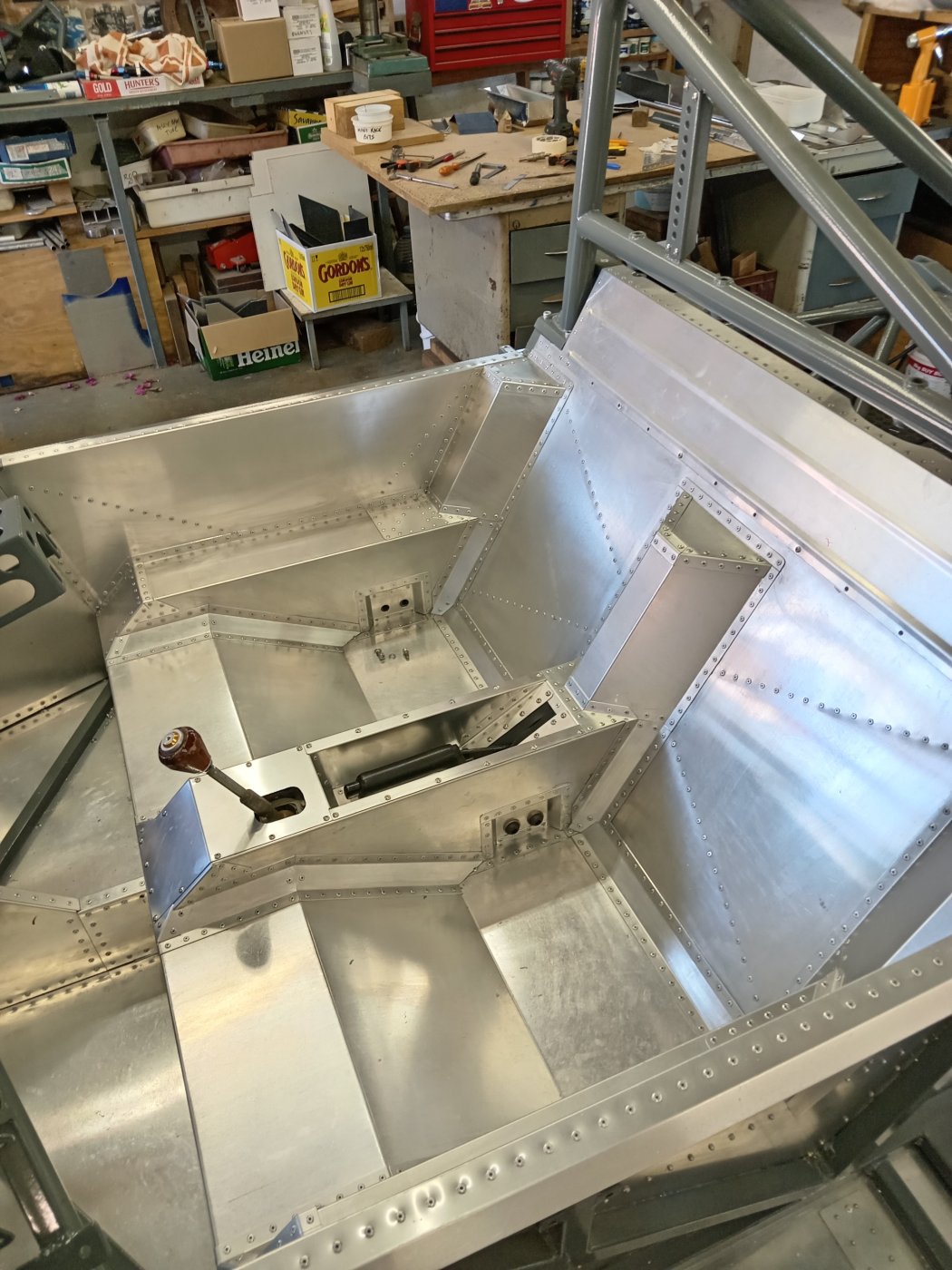

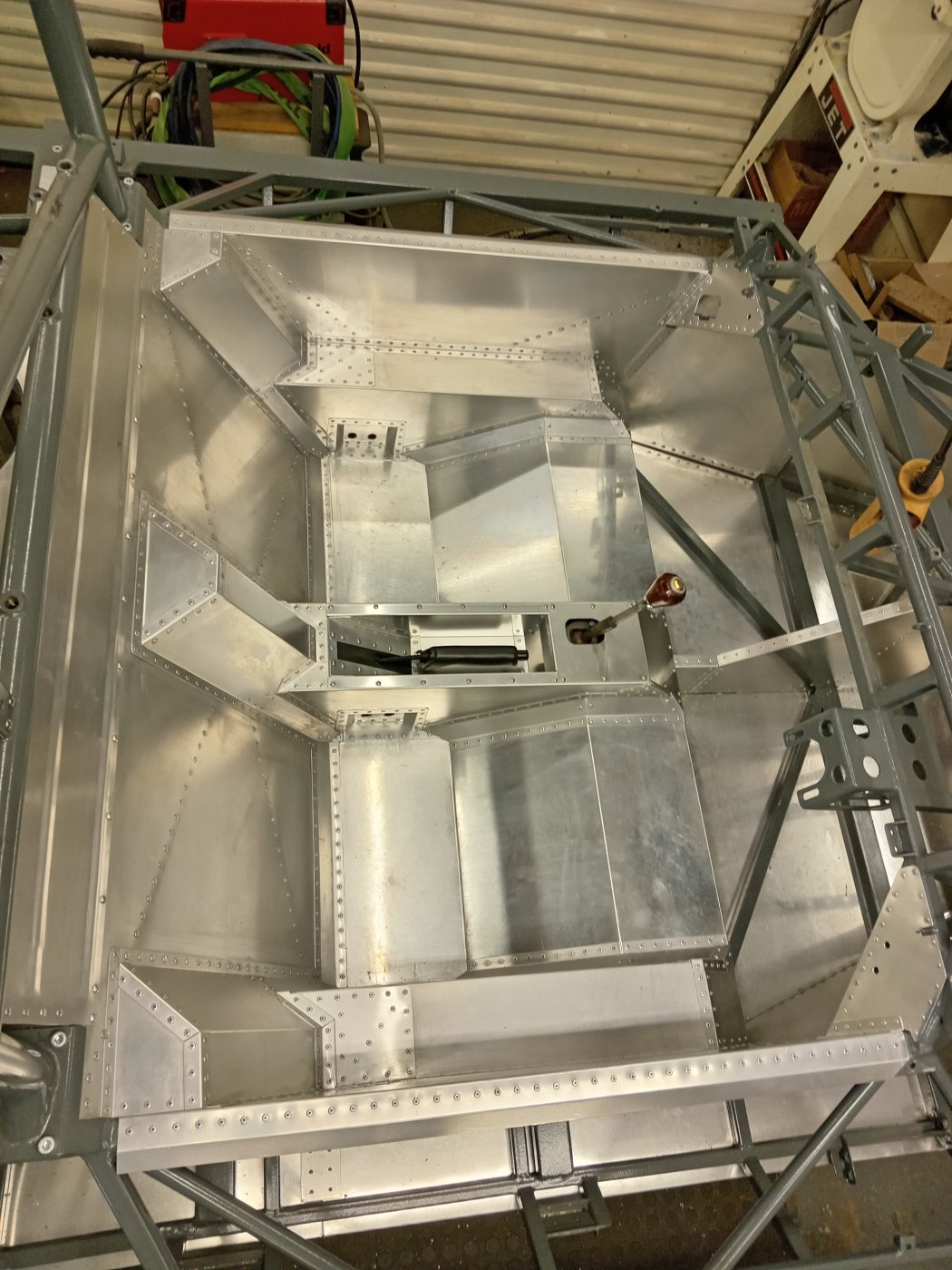

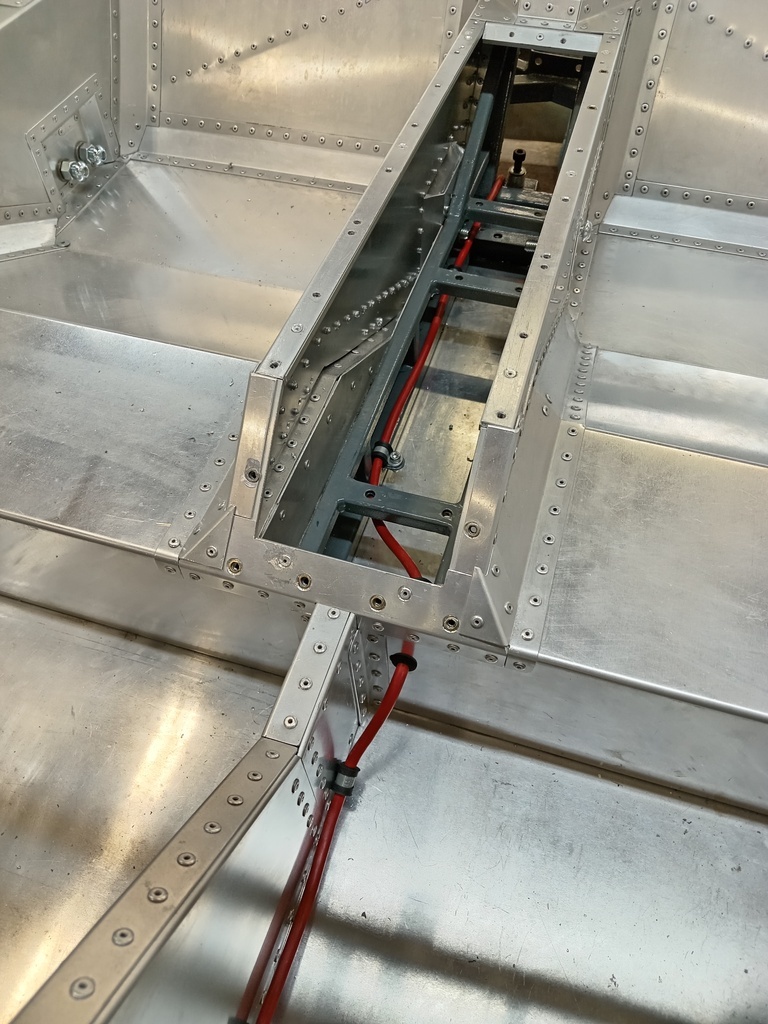

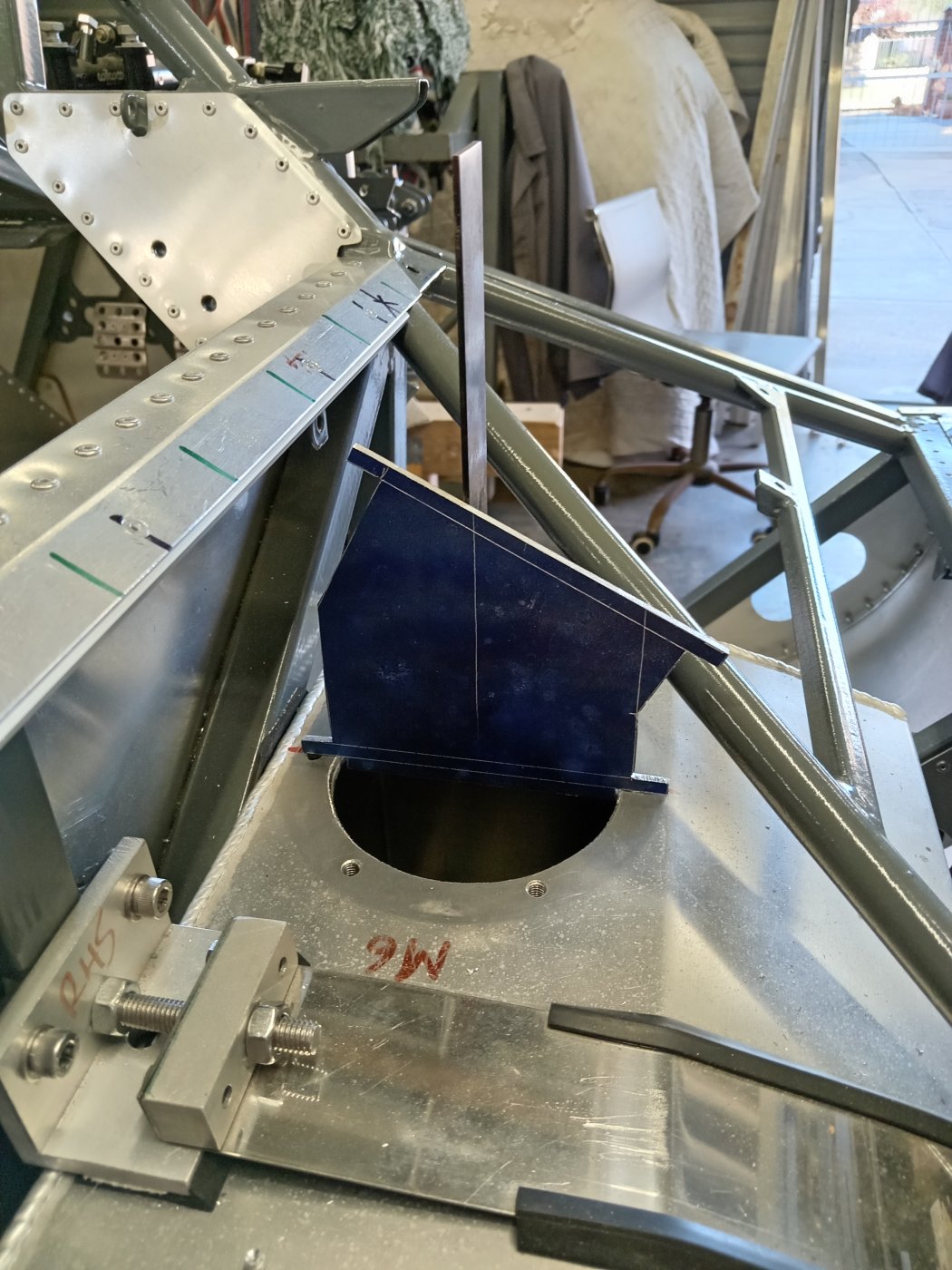

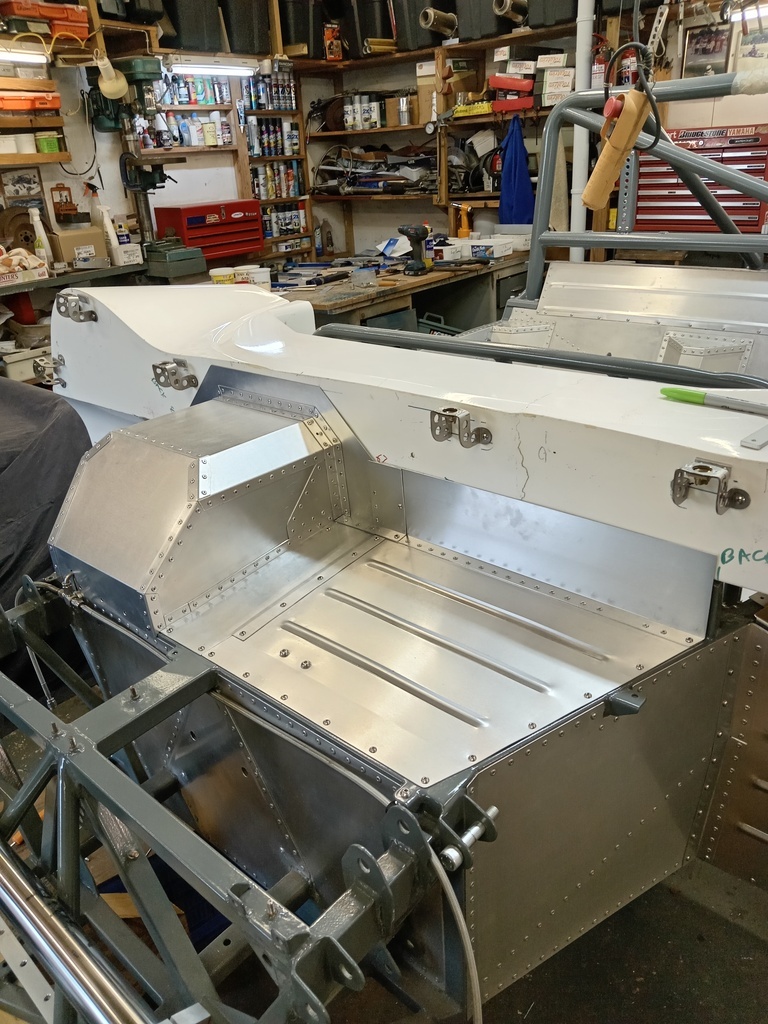

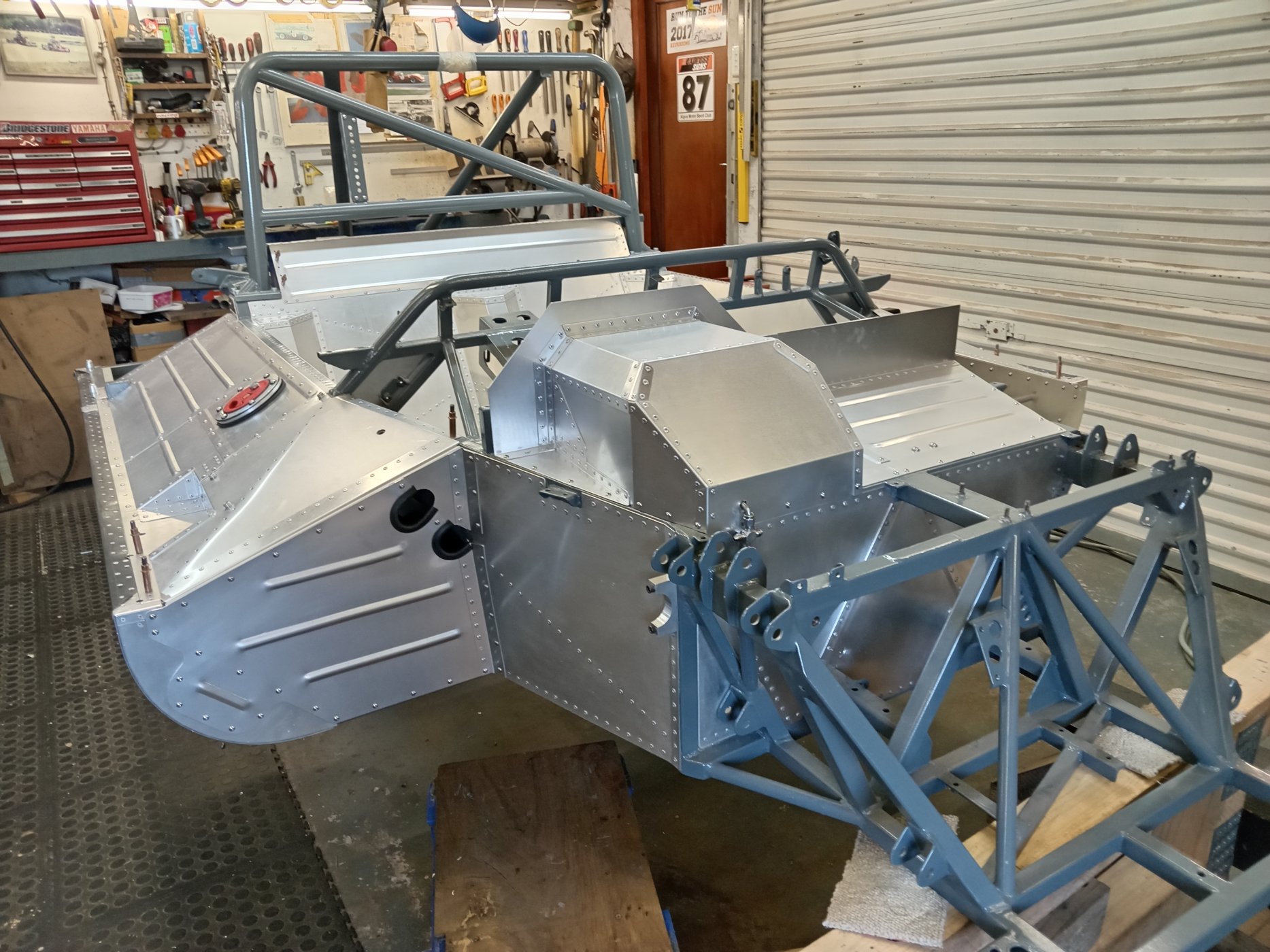

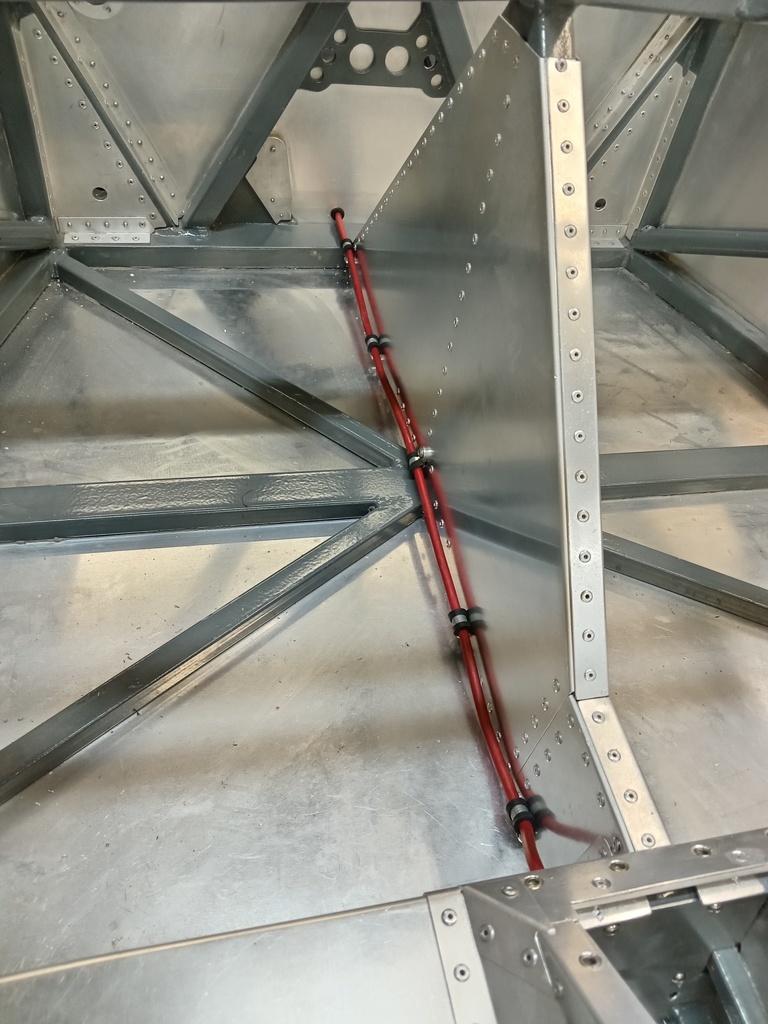

So now I had a center tunnel that contains the gearshift mechanism and the handbrake lever. I wanted a handbrake as my 7 does not have one at all and that’s a pain sometimes. The rear of this tunnel is open to the engine compartment.

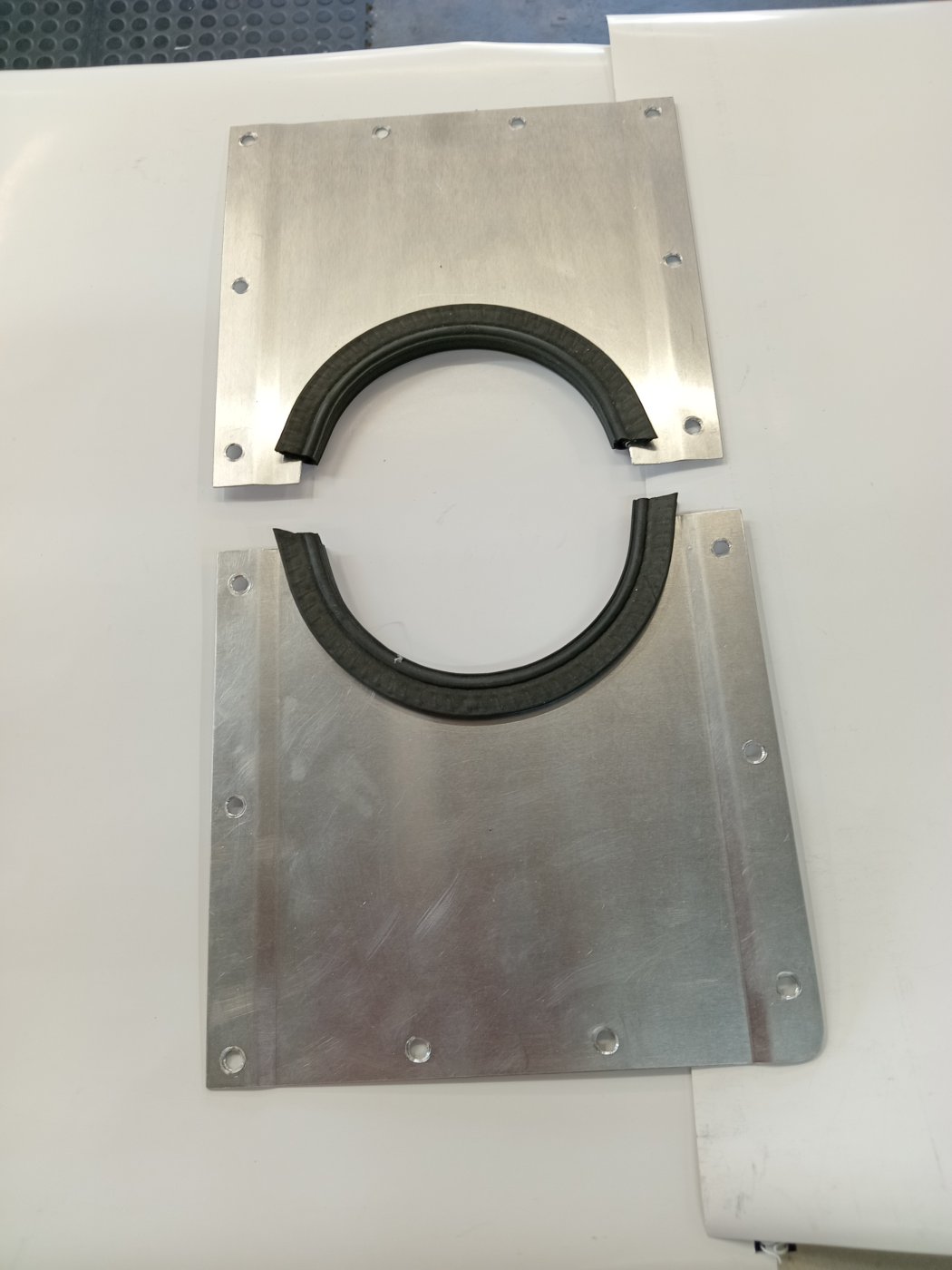

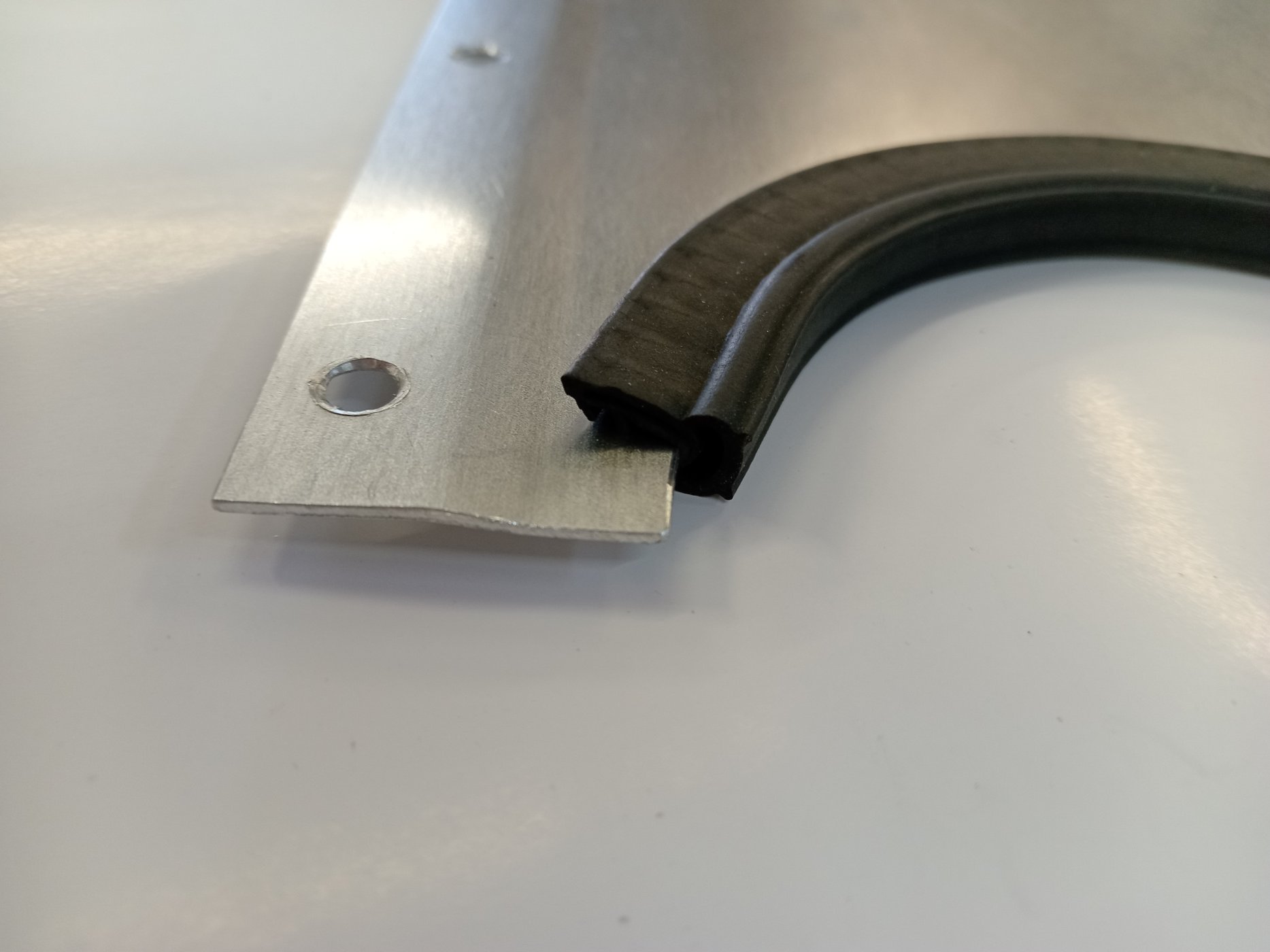

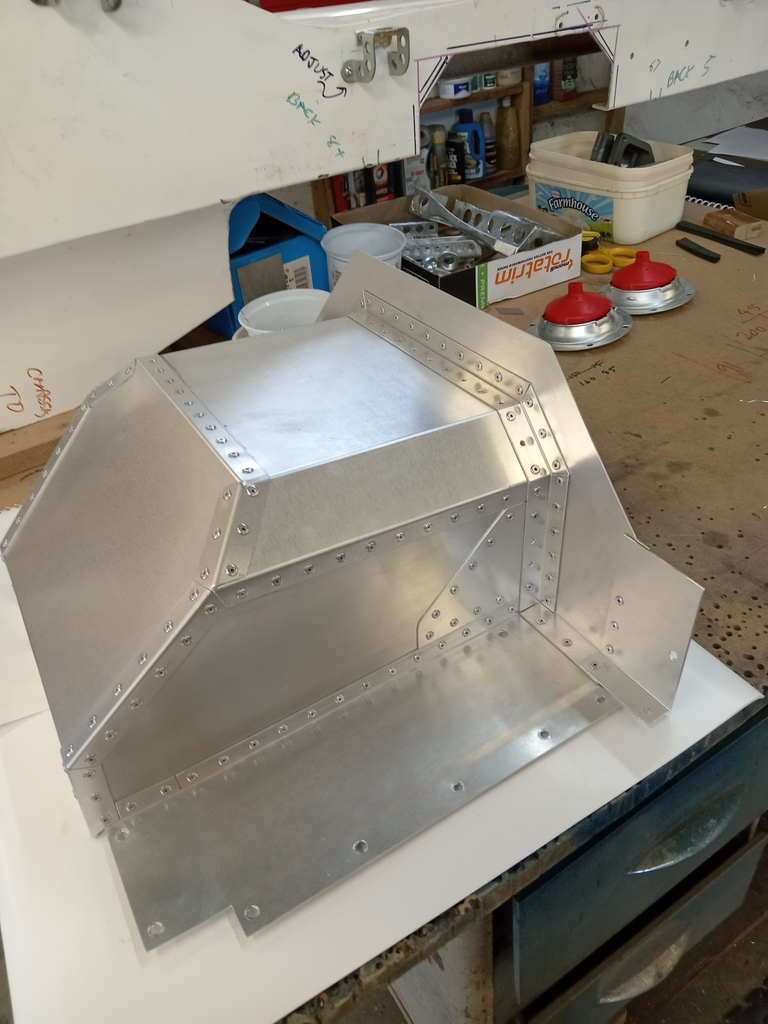

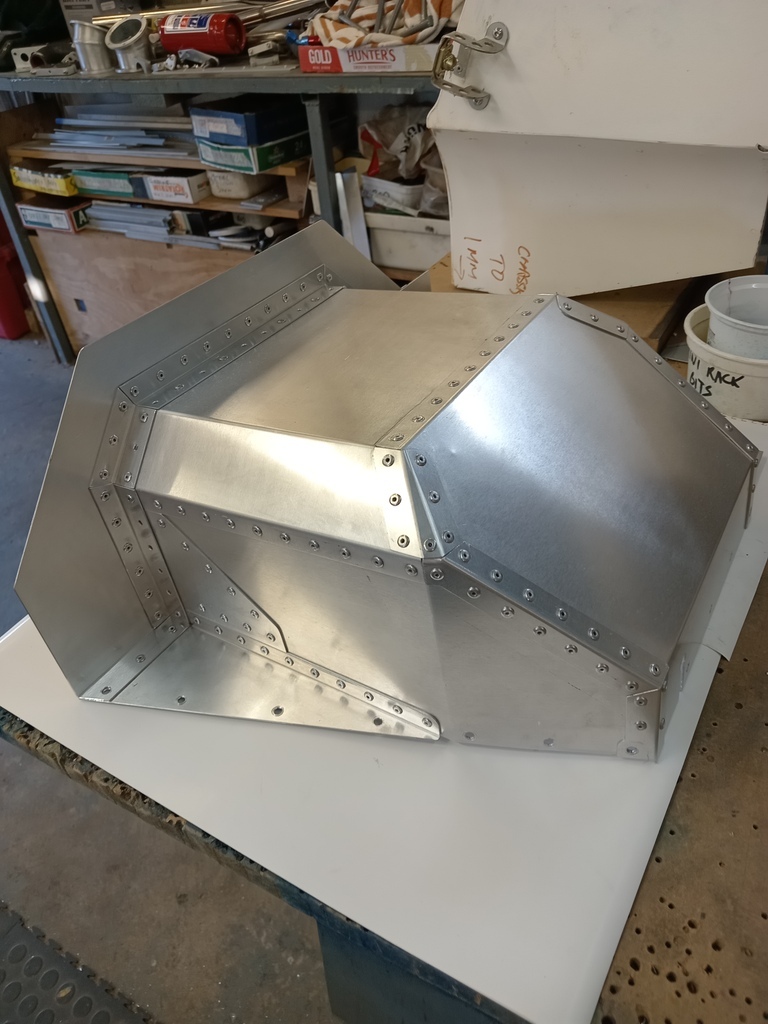

To close off the top of it I made a pressing that goes under the handbrake. This bolts in again with m4 fasteners and I’m experimenting with some rubber strip to provide at least some sealing around the lever.

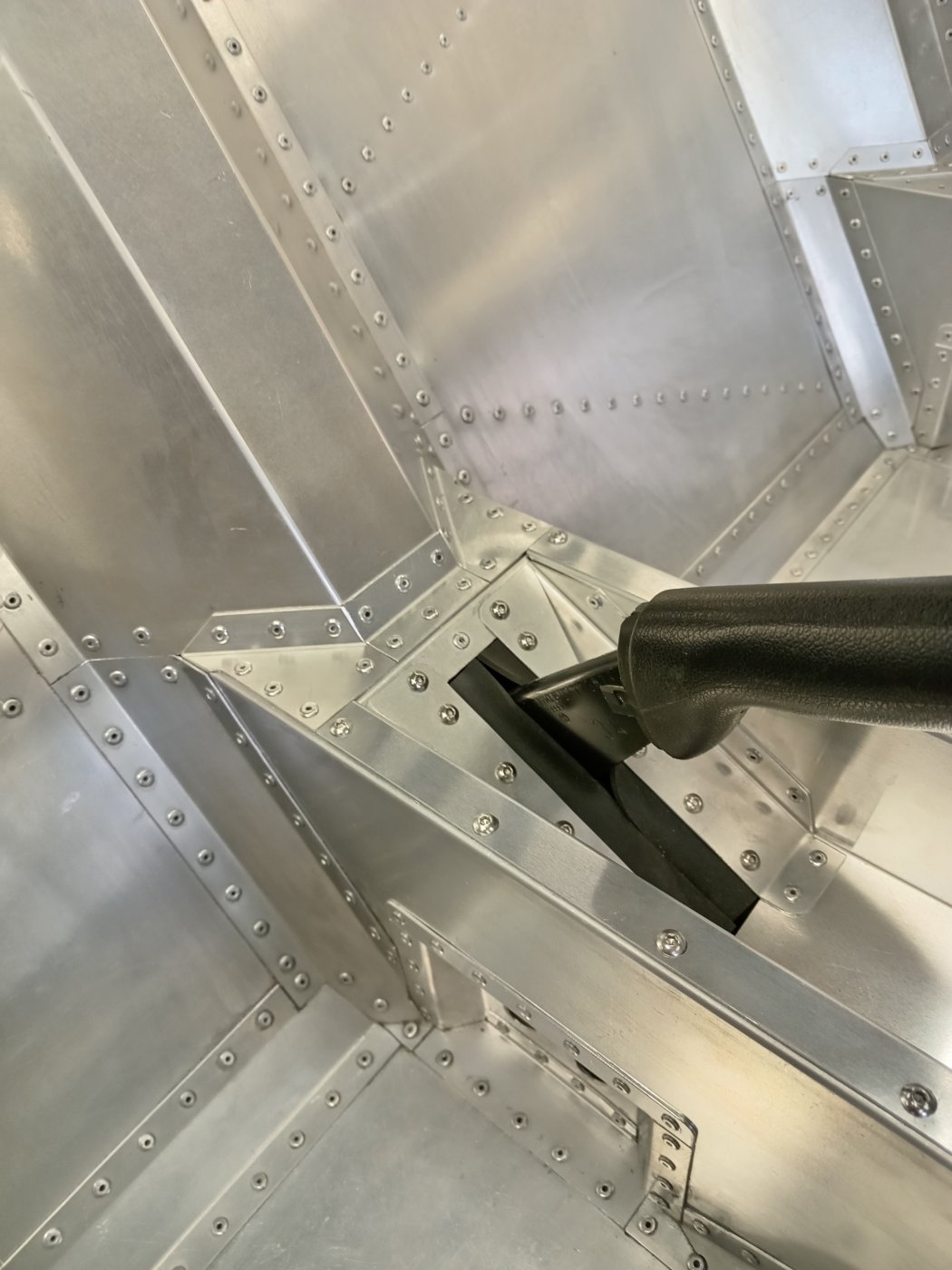

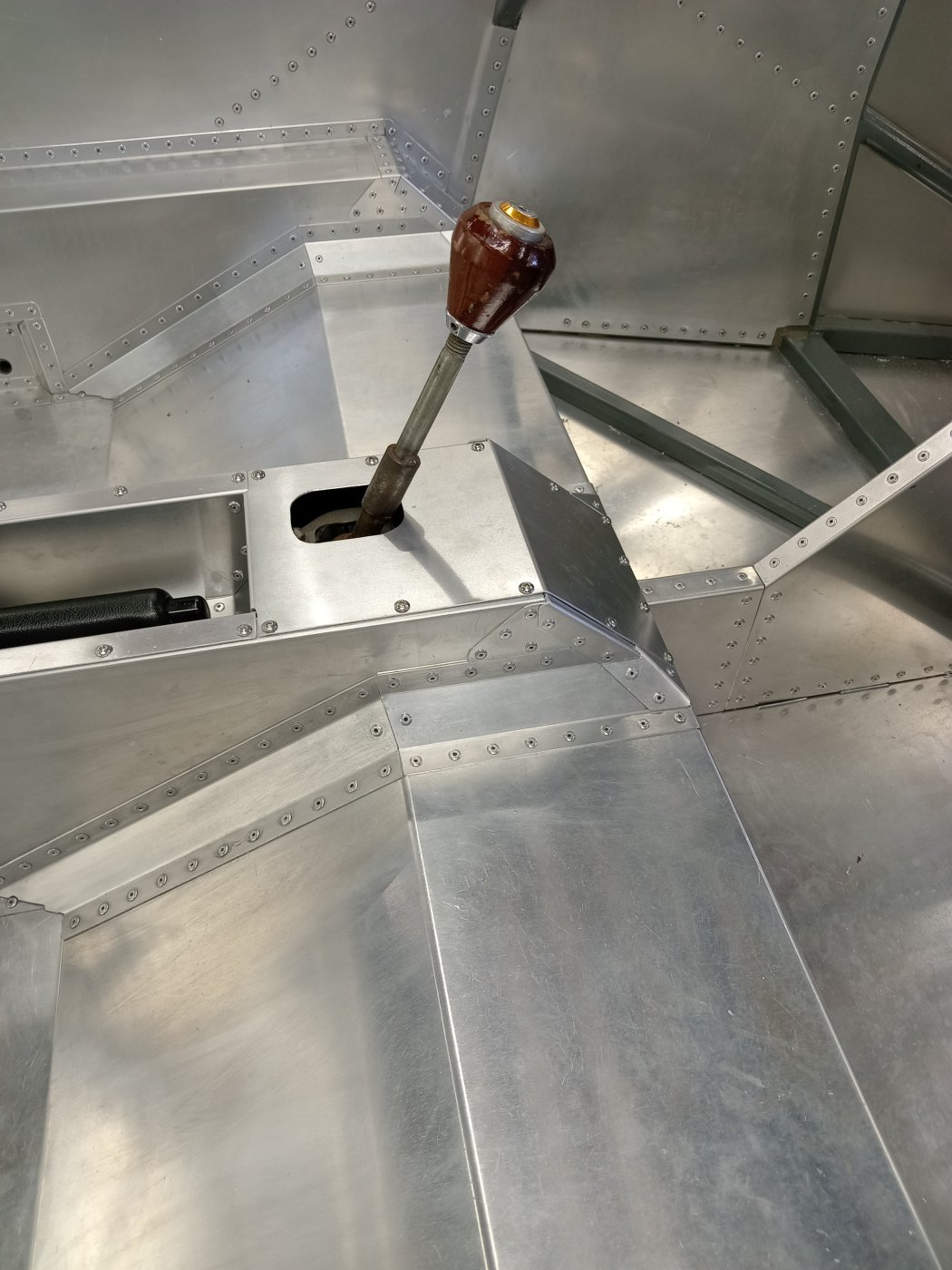

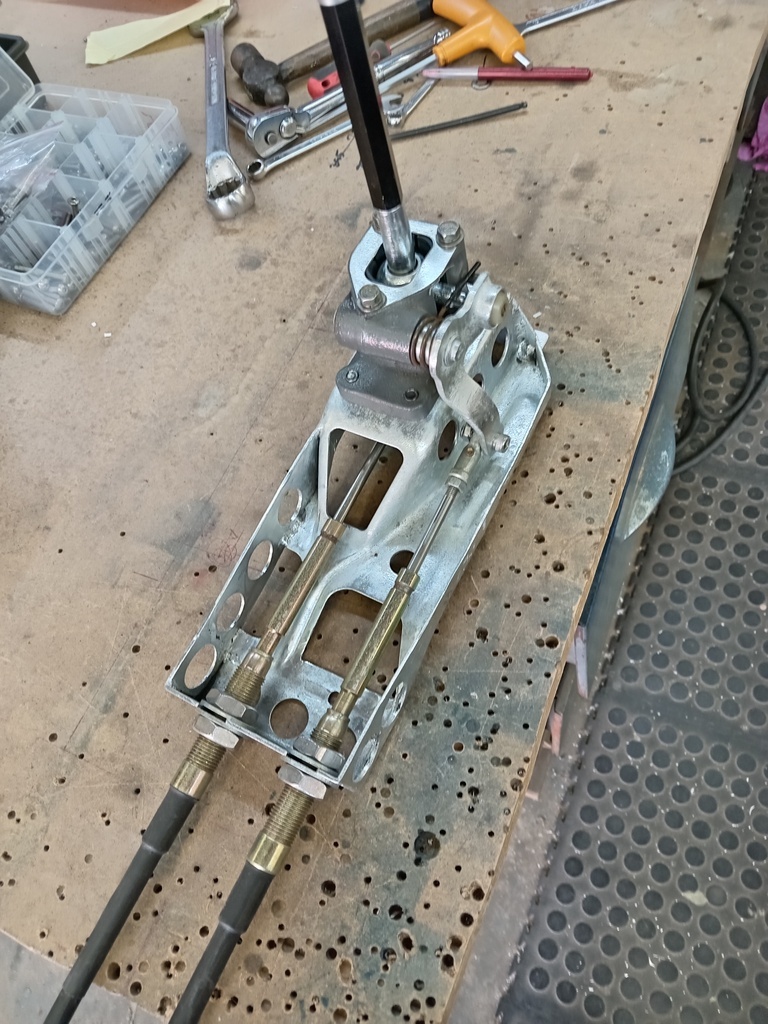

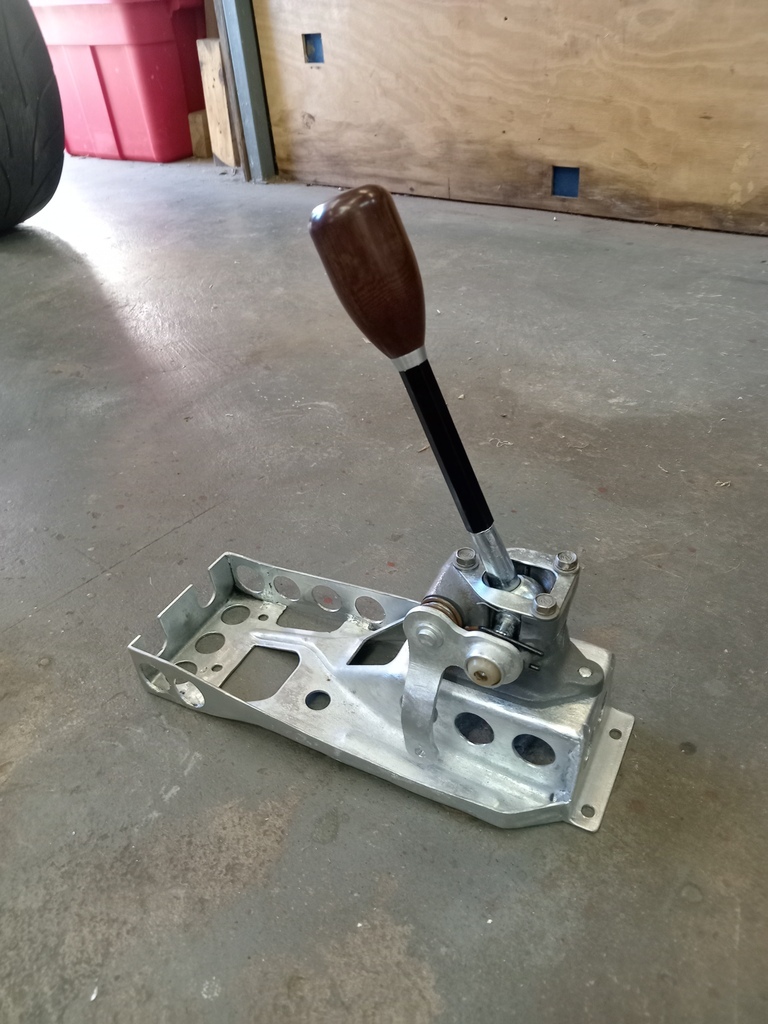

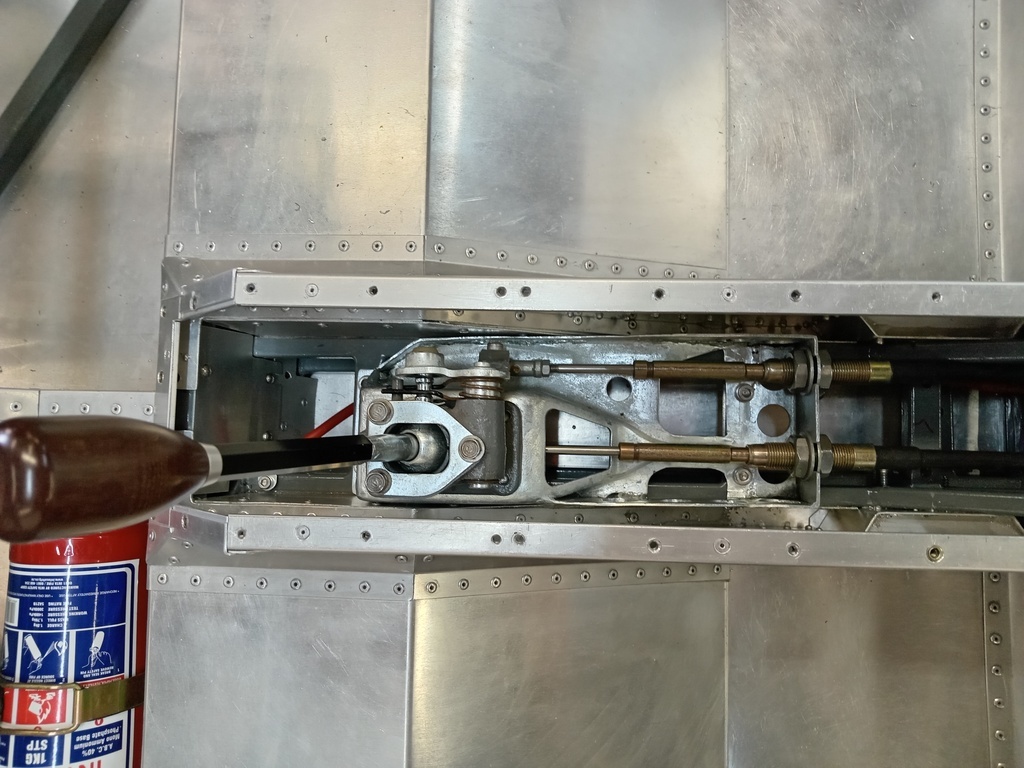

There is a separate closing plate over the gearshift mechanism. Still mockup gearlever shown, and I may still make a bezel for the gearstick hole.
To close off the top of it I made a pressing that goes under the handbrake. This bolts in again with m4 fasteners and I’m experimenting with some rubber strip to provide at least some sealing around the lever.
There is a separate closing plate over the gearshift mechanism. Still mockup gearlever shown, and I may still make a bezel for the gearstick hole.
Last edited:
And the final effect. I intend to eventually have some closed cell foam pads sewn into covers that will fit into the seats and be retained with press studs around the edges. I could also make an expanding foam seat insert for the driver.
Hi all, hope everyone had a good festive season and best wishes for the new year.
The next step was to panel the outer skins of the side pods. Very early on in the project I has tested the torsional rigidity of the mock up chassis both with and without riveted on side pods and that exercise convinced me of the benefit of making the side pods part of the structure. The original T70 has GRP sill covers over the outer edges of the monocoque but I thought to make the skins serve both purposes by making them so that they form the lower part of the body between the wheel arches.
I had made the chassis outer longitudinal side rails slightly narrower than the body width to give some ability to adjust the overall width to suit the body fit when I fitted the skins.
I spent quite some time positioning where the skins would sit to get them both dead parallel to and equidistant from the chassis center line.

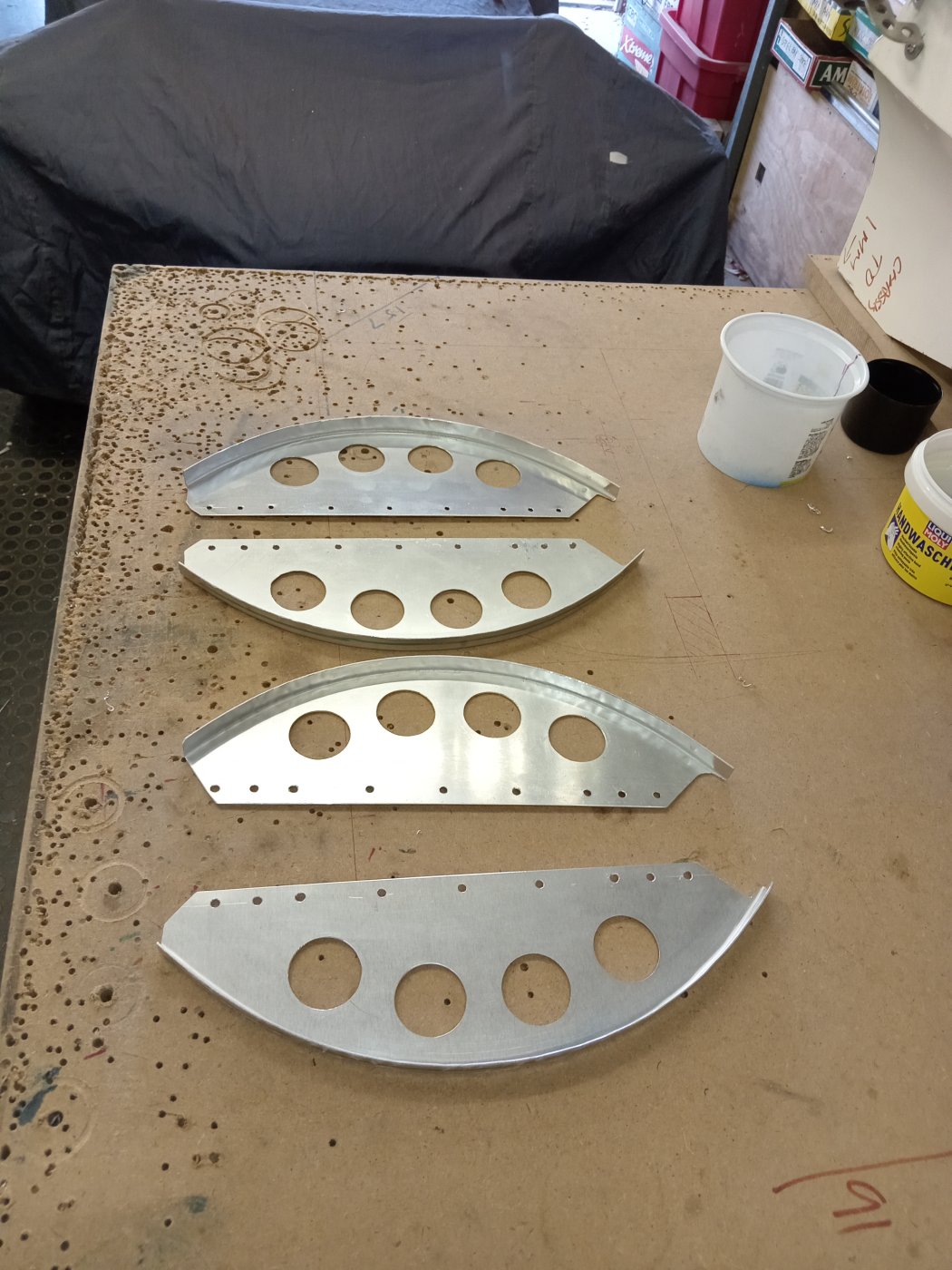

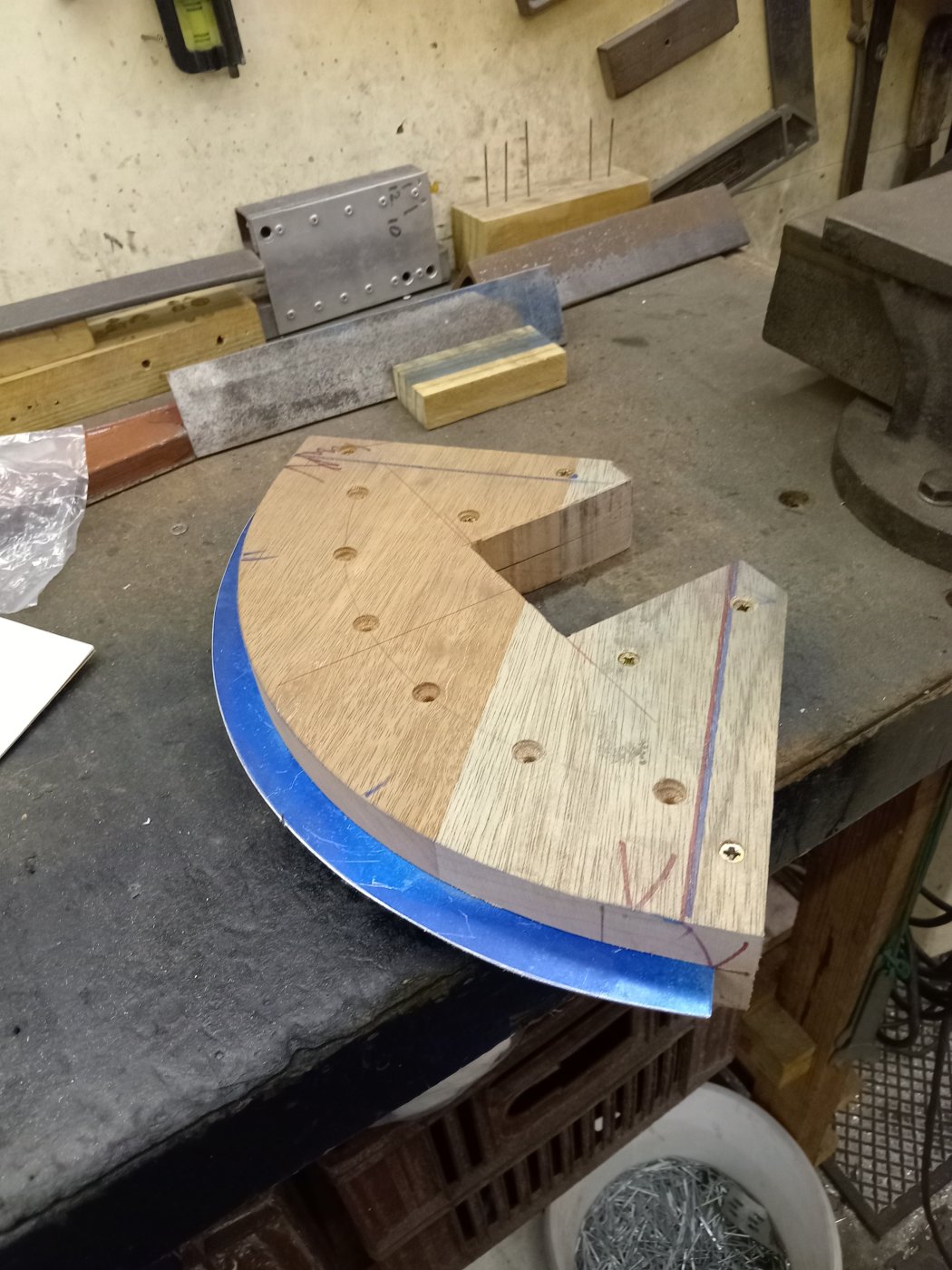

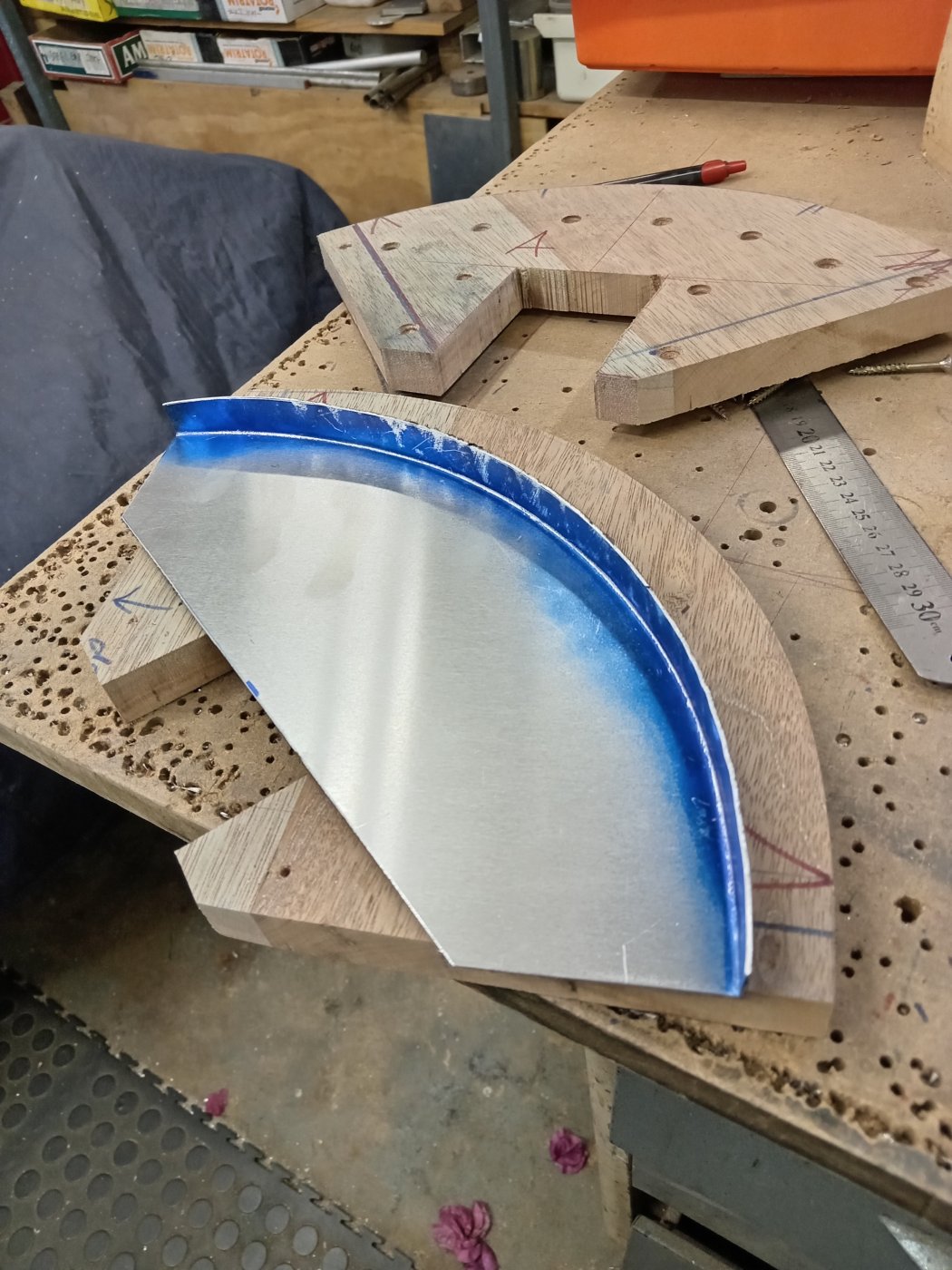

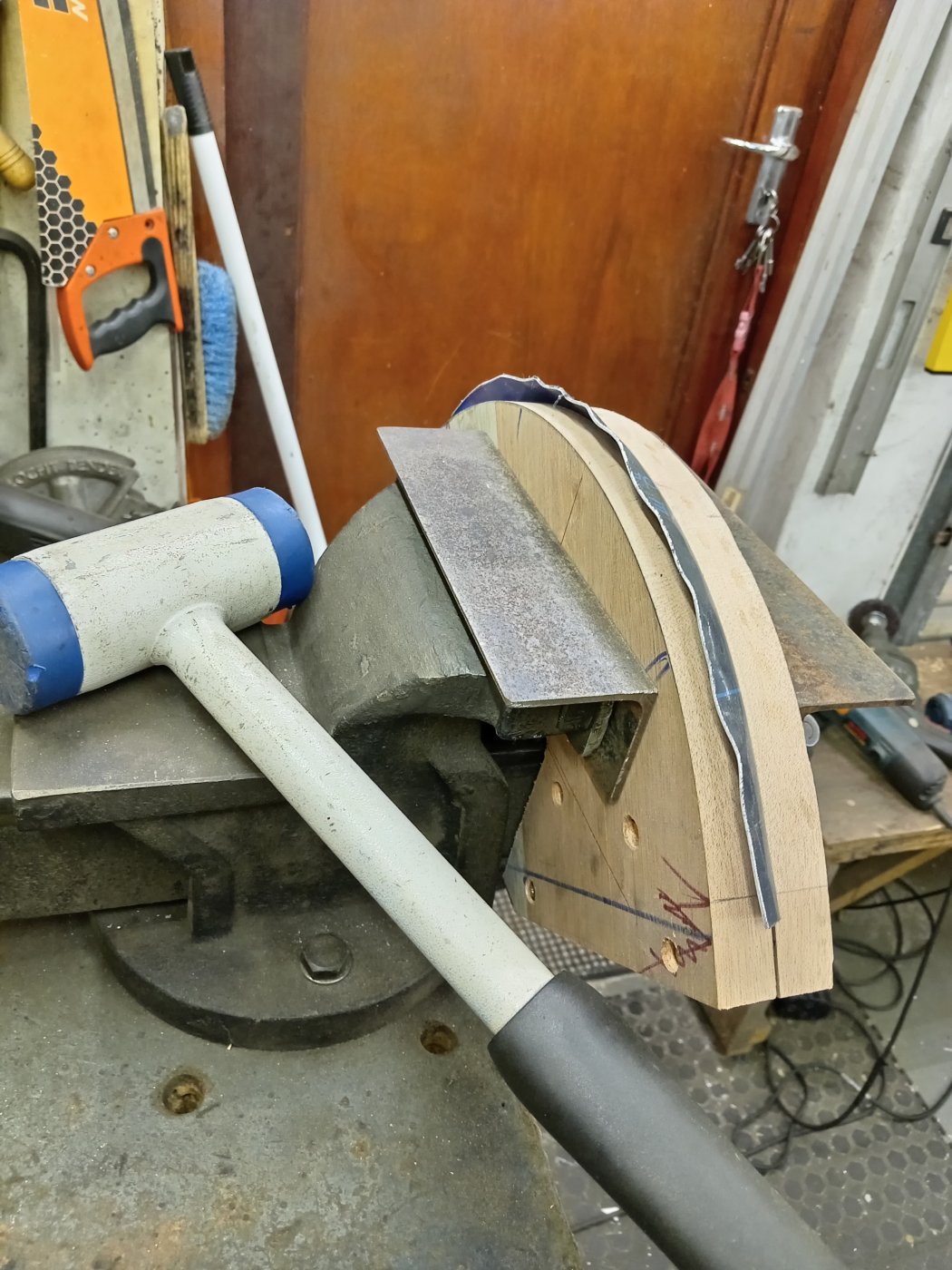

I made a hammer form to bend a flange onto support ribs that would define the curve of the side pods. I agonized over whether to make this a consistent radius, or to make the skin first angle in more steeply below the belt line, as the original T70s appear to do. Eventually I decide to make a constant radius for simplicities sake. As the side pods are taller than they are wide this means that there is a 45 mm wide band of theoretically flat vertical surface at the top of the side pods which would prove problematic later on as I don’t have any stringers between the ribs. After the flanges were bent onto the ribs the flange width was trimmed to a uniform dimension.
I must state that I didn’t have any prior practical experience forming sheet metal beyond simple panel bending and folds. I’m figuring this out as I go along which is no doubt well apparent to the more accomplished metal workers.
The next step was to panel the outer skins of the side pods. Very early on in the project I has tested the torsional rigidity of the mock up chassis both with and without riveted on side pods and that exercise convinced me of the benefit of making the side pods part of the structure. The original T70 has GRP sill covers over the outer edges of the monocoque but I thought to make the skins serve both purposes by making them so that they form the lower part of the body between the wheel arches.
I had made the chassis outer longitudinal side rails slightly narrower than the body width to give some ability to adjust the overall width to suit the body fit when I fitted the skins.
I spent quite some time positioning where the skins would sit to get them both dead parallel to and equidistant from the chassis center line.
I made a hammer form to bend a flange onto support ribs that would define the curve of the side pods. I agonized over whether to make this a consistent radius, or to make the skin first angle in more steeply below the belt line, as the original T70s appear to do. Eventually I decide to make a constant radius for simplicities sake. As the side pods are taller than they are wide this means that there is a 45 mm wide band of theoretically flat vertical surface at the top of the side pods which would prove problematic later on as I don’t have any stringers between the ribs. After the flanges were bent onto the ribs the flange width was trimmed to a uniform dimension.
I must state that I didn’t have any prior practical experience forming sheet metal beyond simple panel bending and folds. I’m figuring this out as I go along which is no doubt well apparent to the more accomplished metal workers.

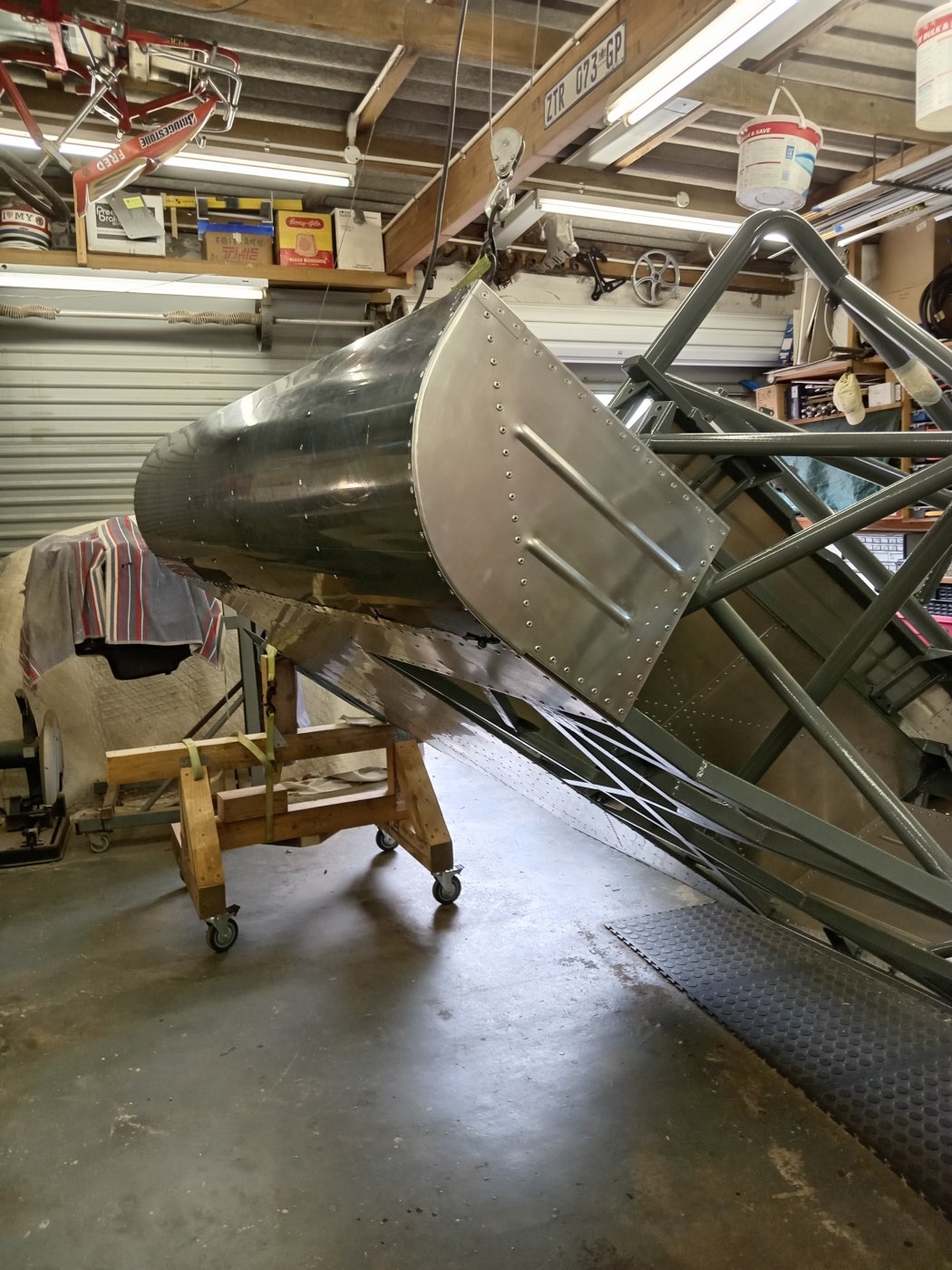

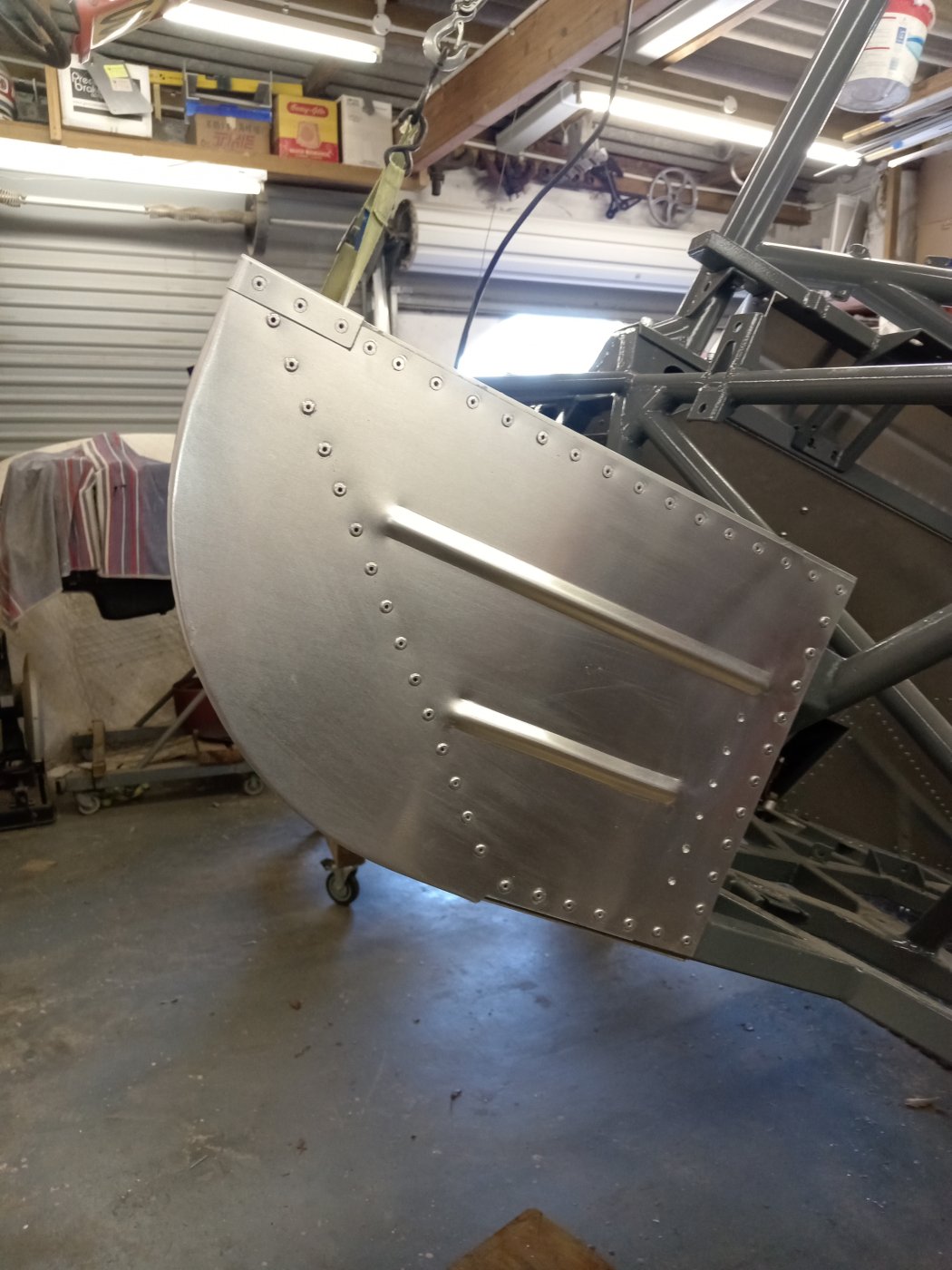

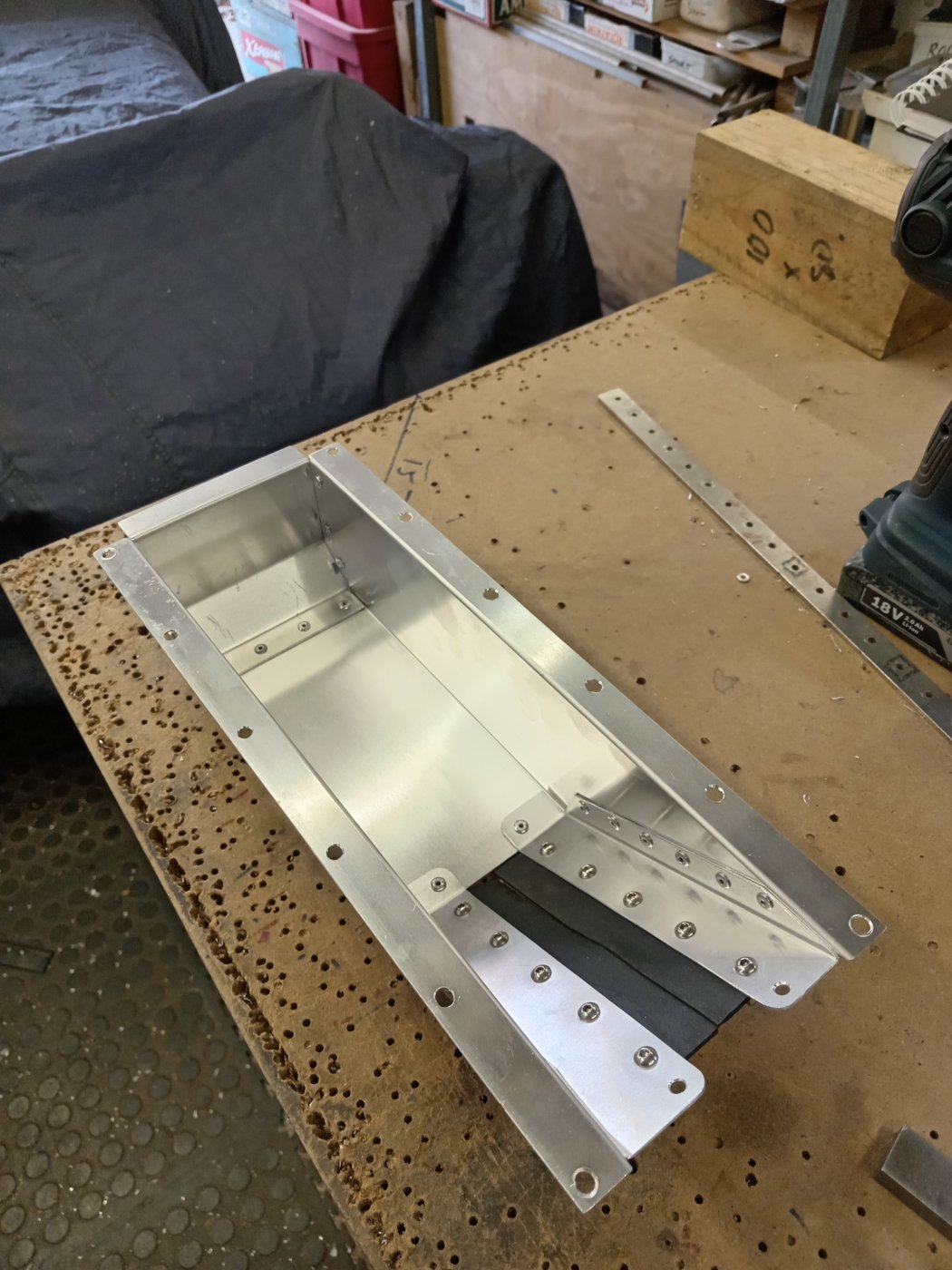

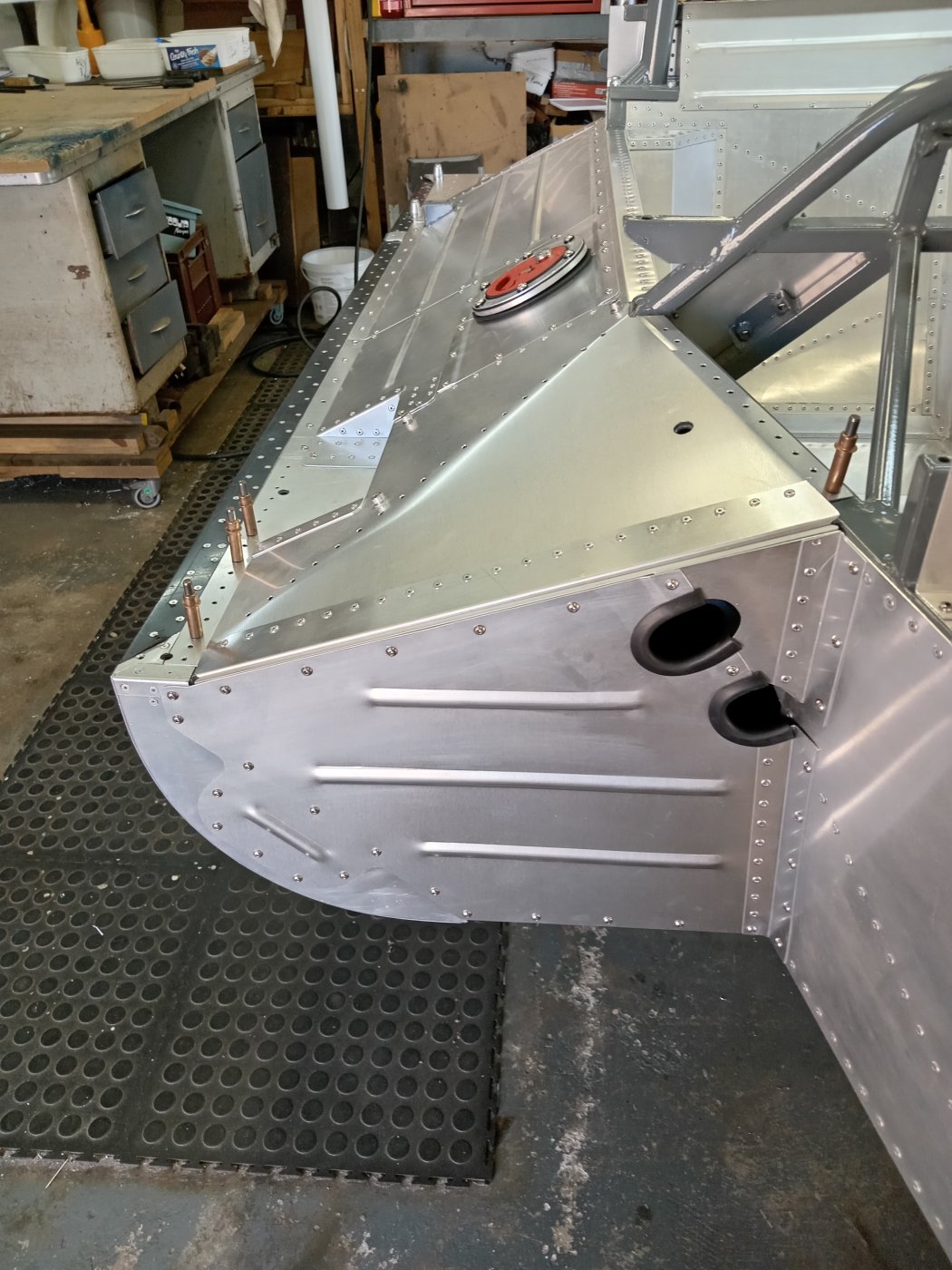

The rear end of the pod is closed by a single panel, to which we added some stiffing detail. The top row of rivets is countersunk as they will be overhung by a flange on the removable top panel.

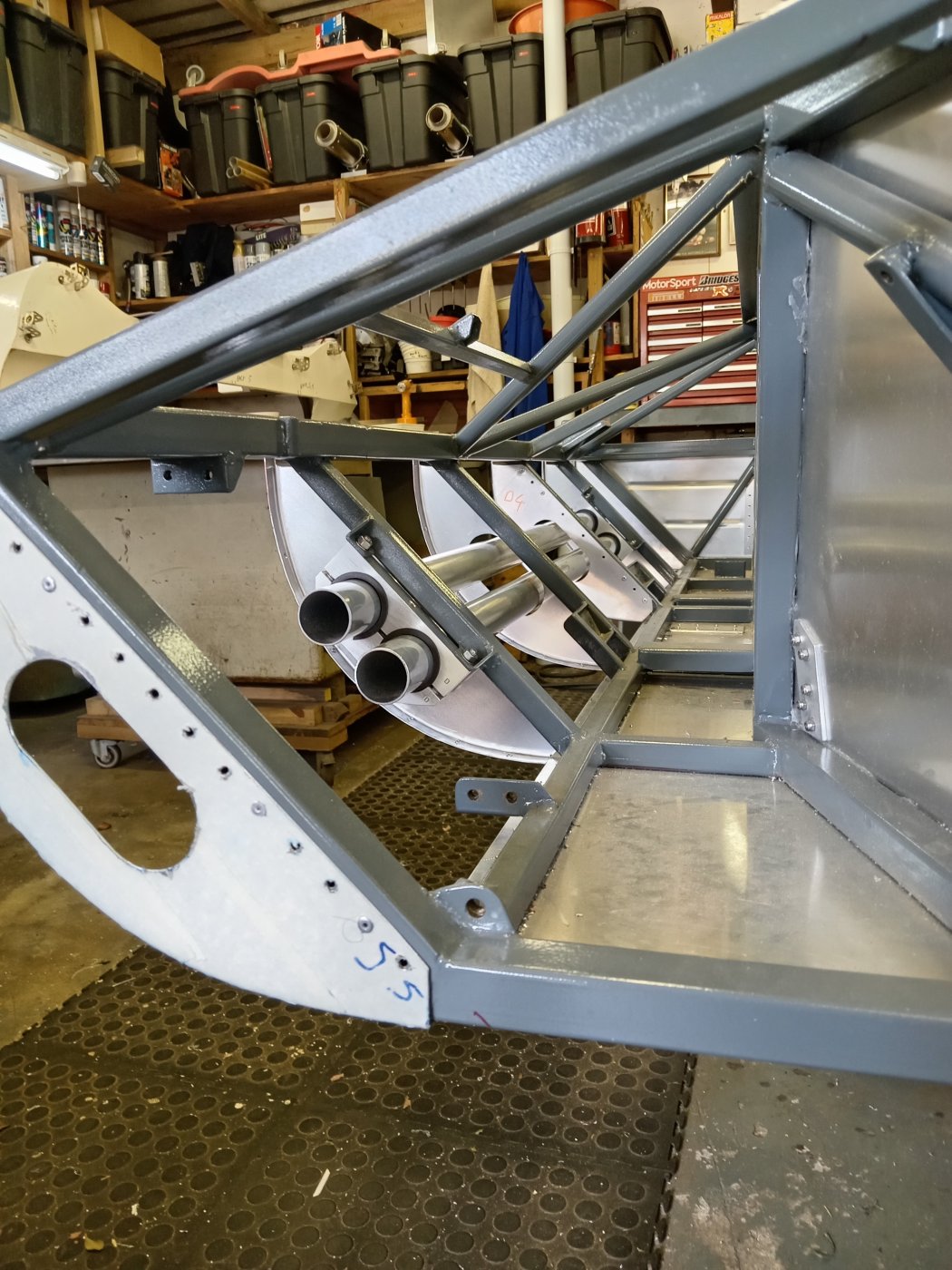

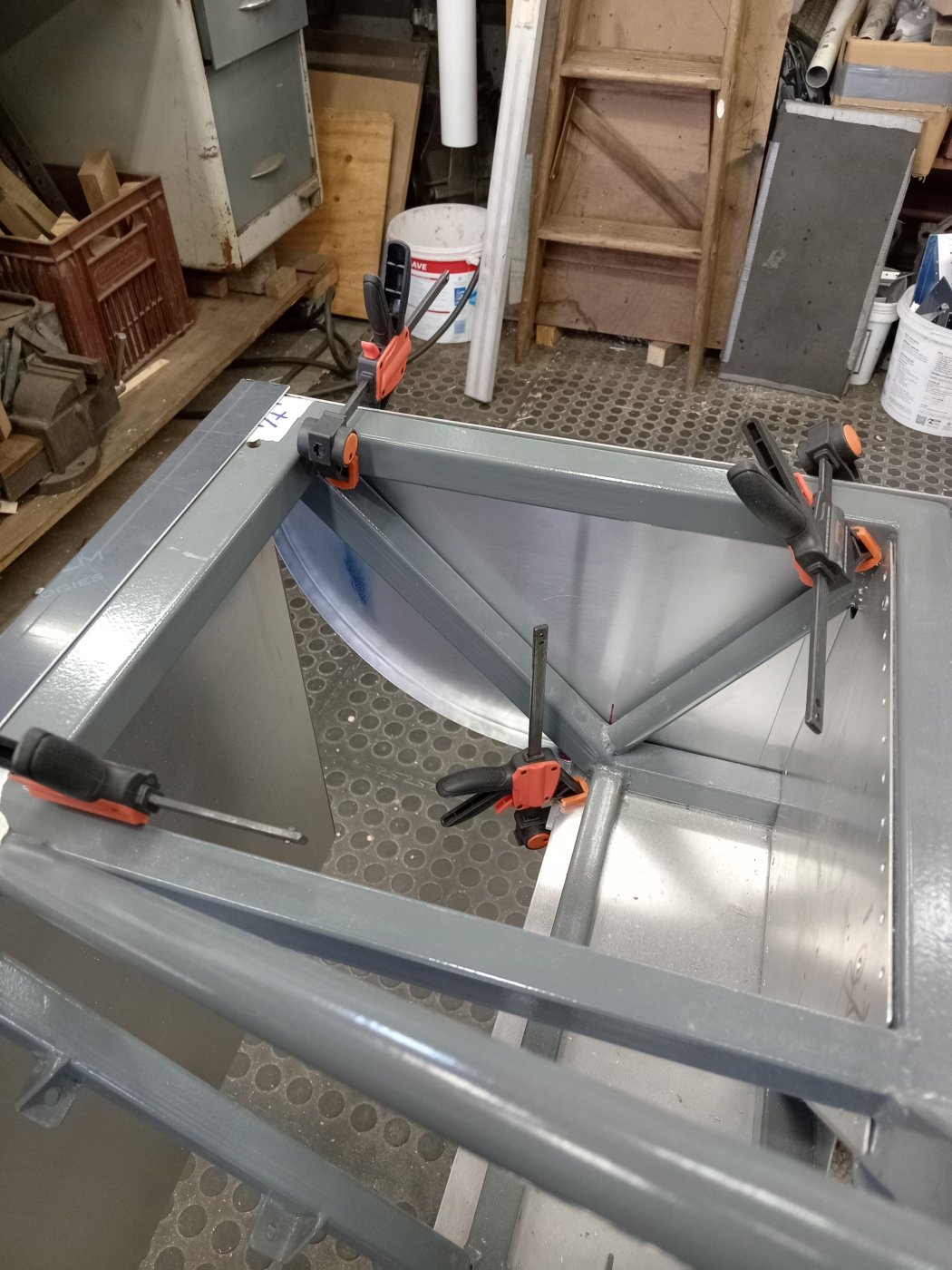

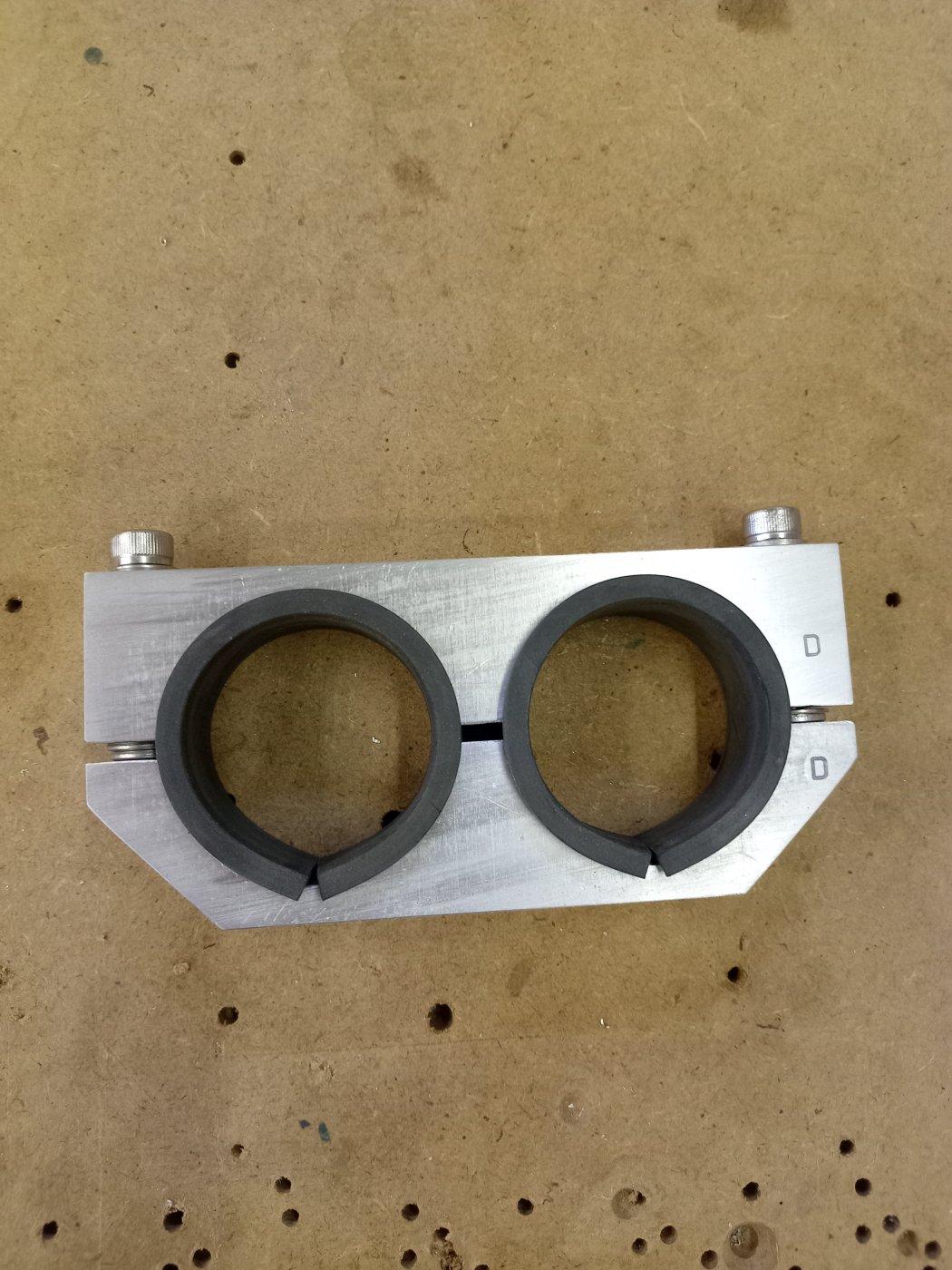

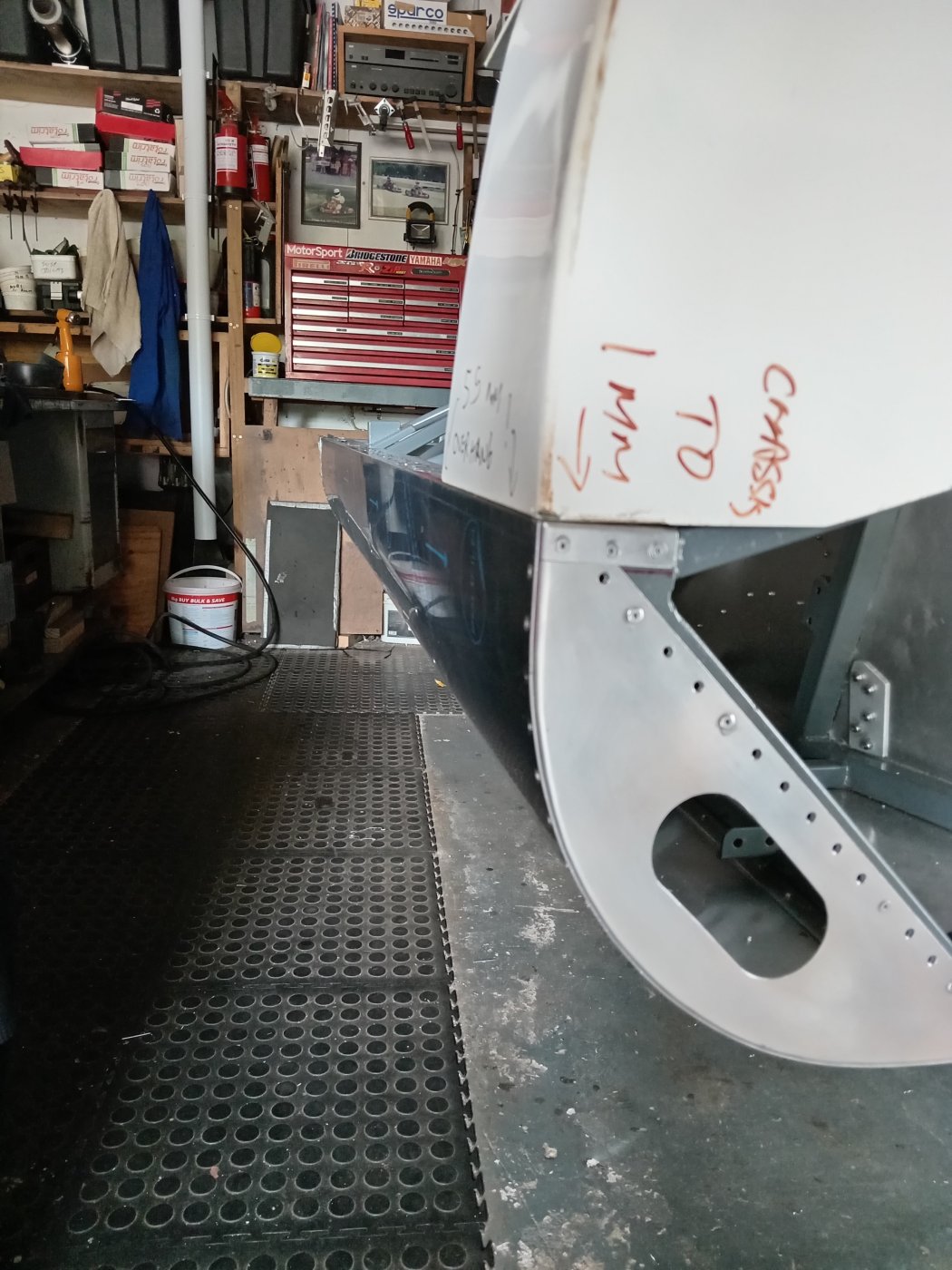

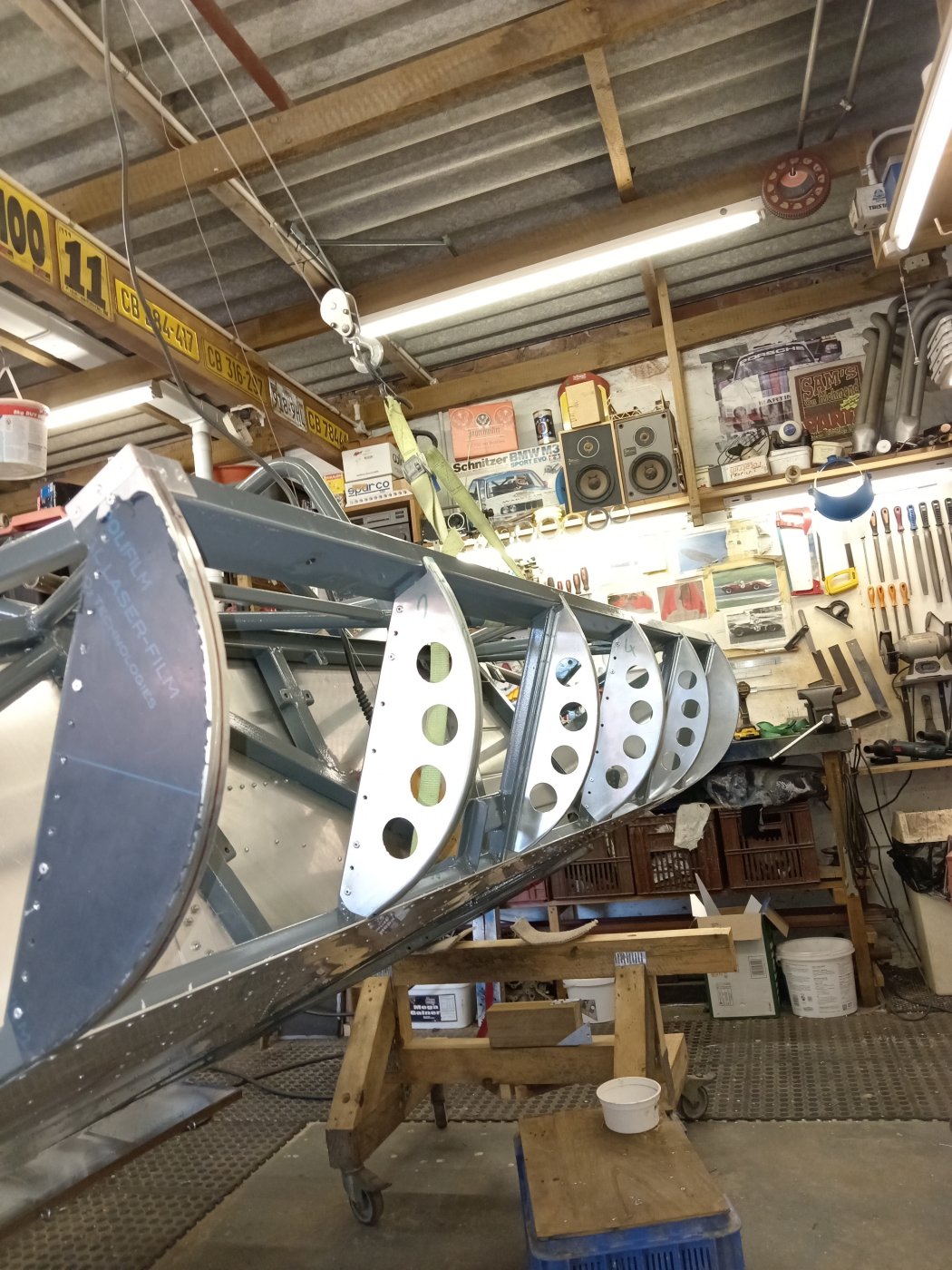

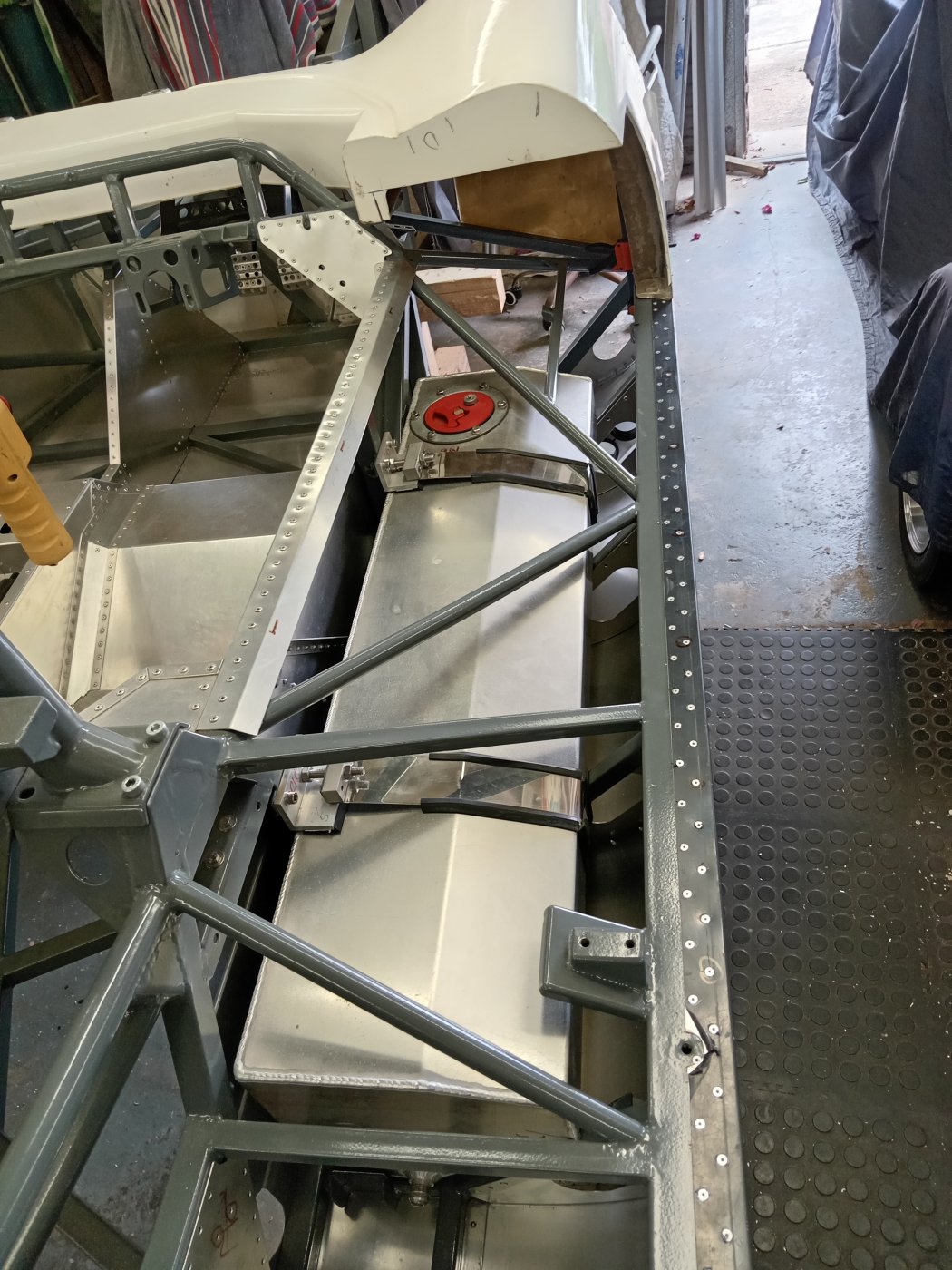

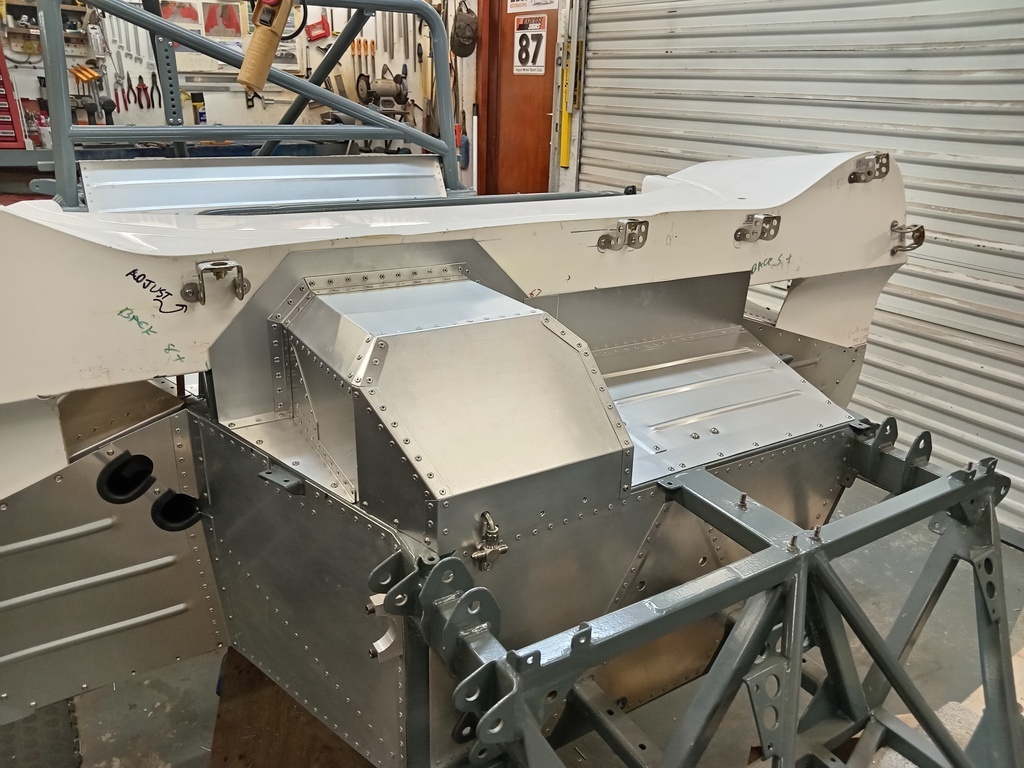

The front end of the pods have to have multi-piece closing panels, as the major part of them needs to be removable to enable the fuel tanks to be fitted into the side sills. On the driver side windows are needed in the ribs to accommodate pipes that transport the cooling fluid from the engine to the front mounted radiator. These pipes are supported in some brackets I had machined up. The accessibility once the skins are fitted needed to be considered. The ribs were carefully fitted to maintain a straight line down the length.
On the passenger side I put some holes in the ribs merely for the BS factor.
The front end of the pods have to have multi-piece closing panels, as the major part of them needs to be removable to enable the fuel tanks to be fitted into the side sills. On the driver side windows are needed in the ribs to accommodate pipes that transport the cooling fluid from the engine to the front mounted radiator. These pipes are supported in some brackets I had machined up. The accessibility once the skins are fitted needed to be considered. The ribs were carefully fitted to maintain a straight line down the length.
On the passenger side I put some holes in the ribs merely for the BS factor.

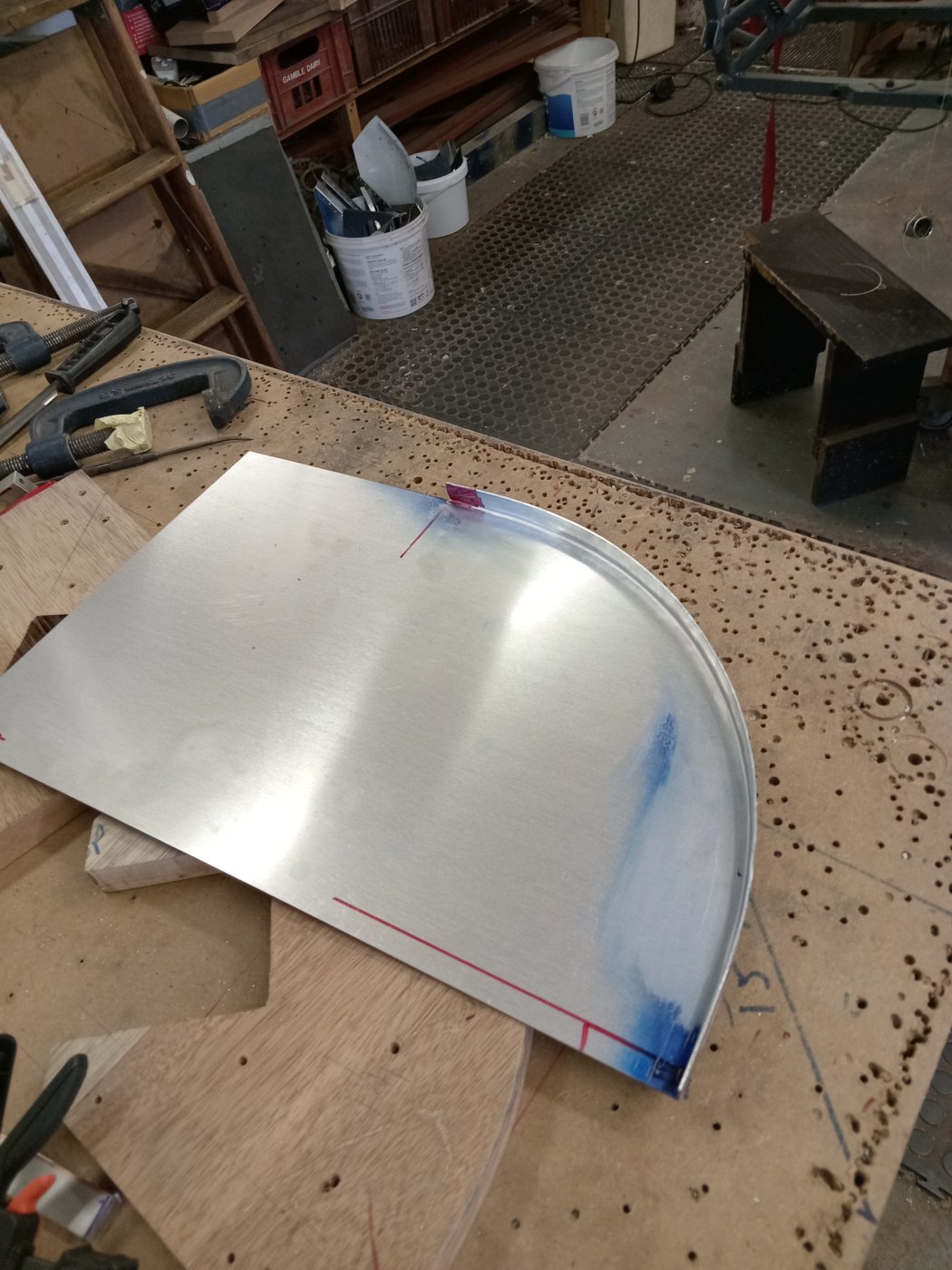

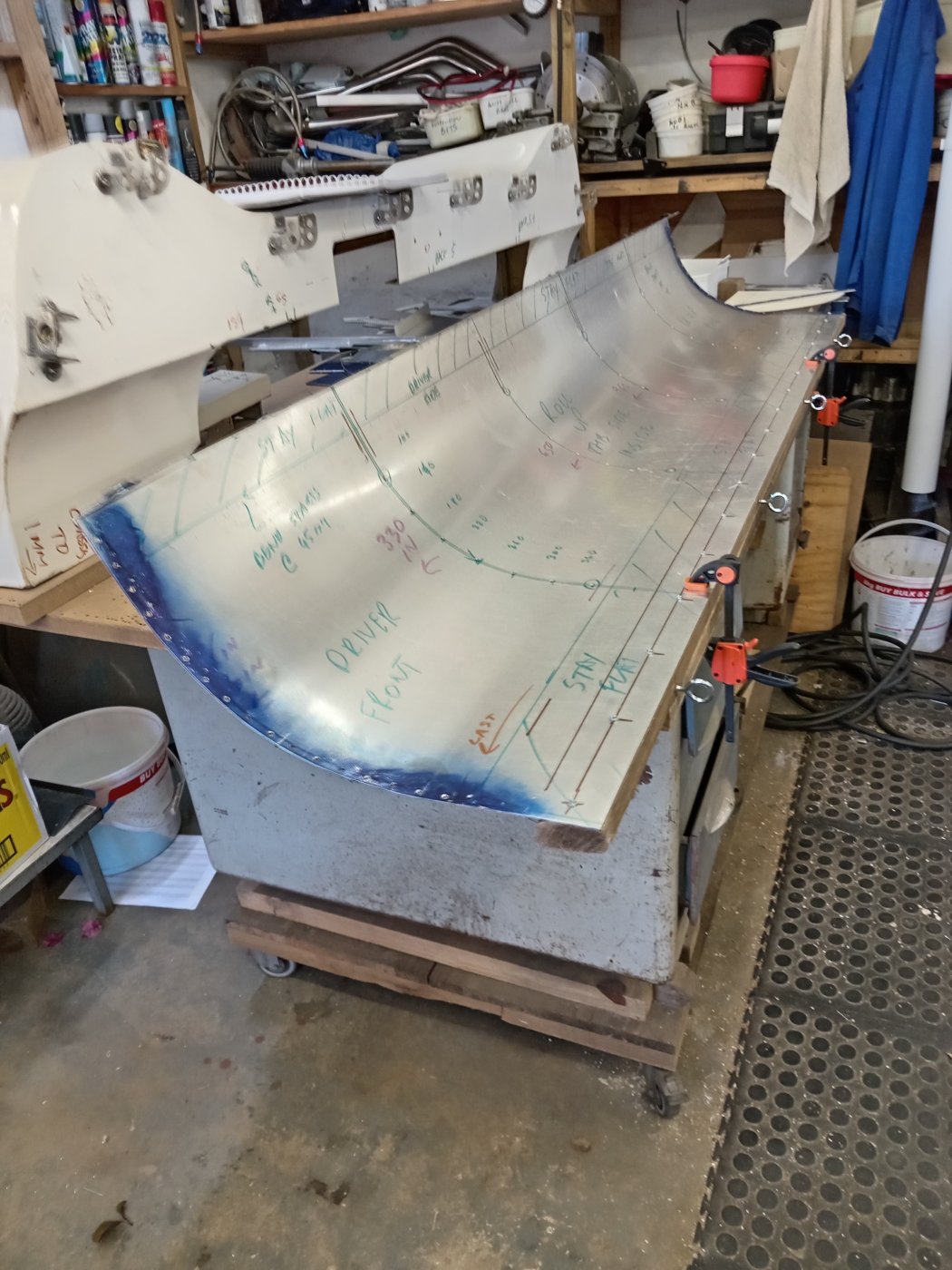

The skins were prepared with a folded flange at the top and the rivet holes drilled to meet the flanges of the ribs. Lacking access to a slip roller long enough to roll the curve into the skins in one operation we resorted to putting some shape into the skins by bending them on a bench with pipes, clamps, planks of wood and muscle.

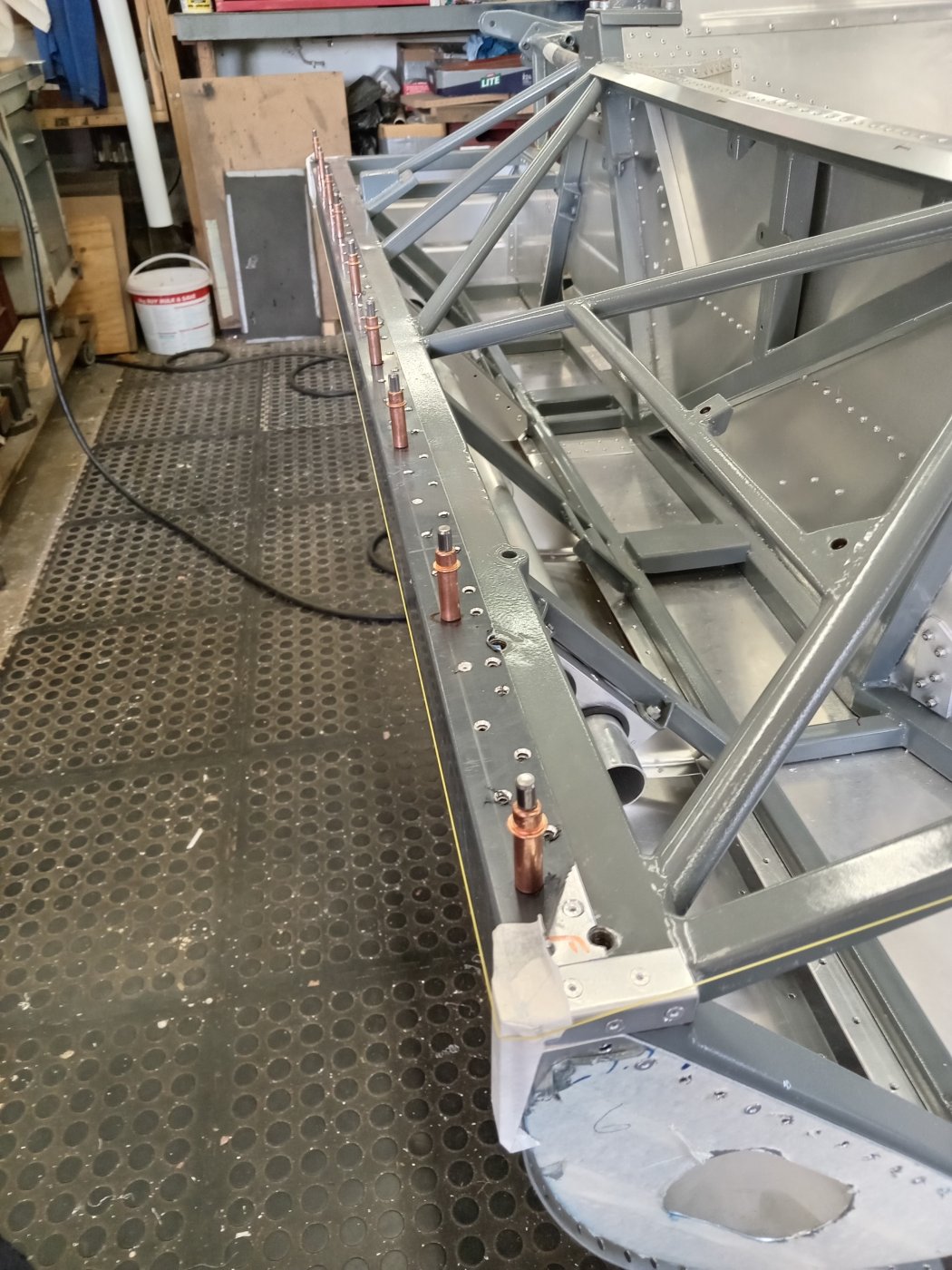

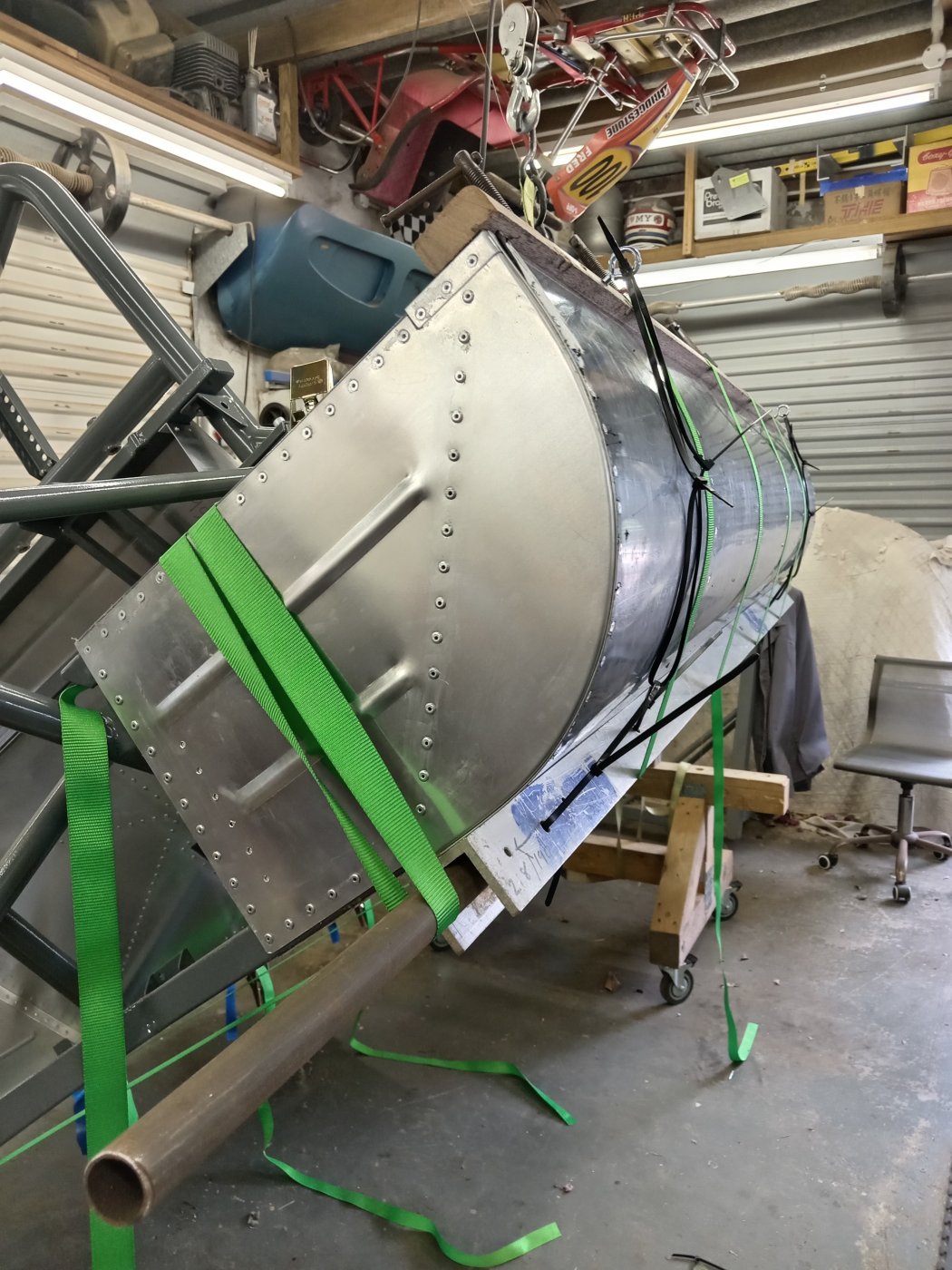

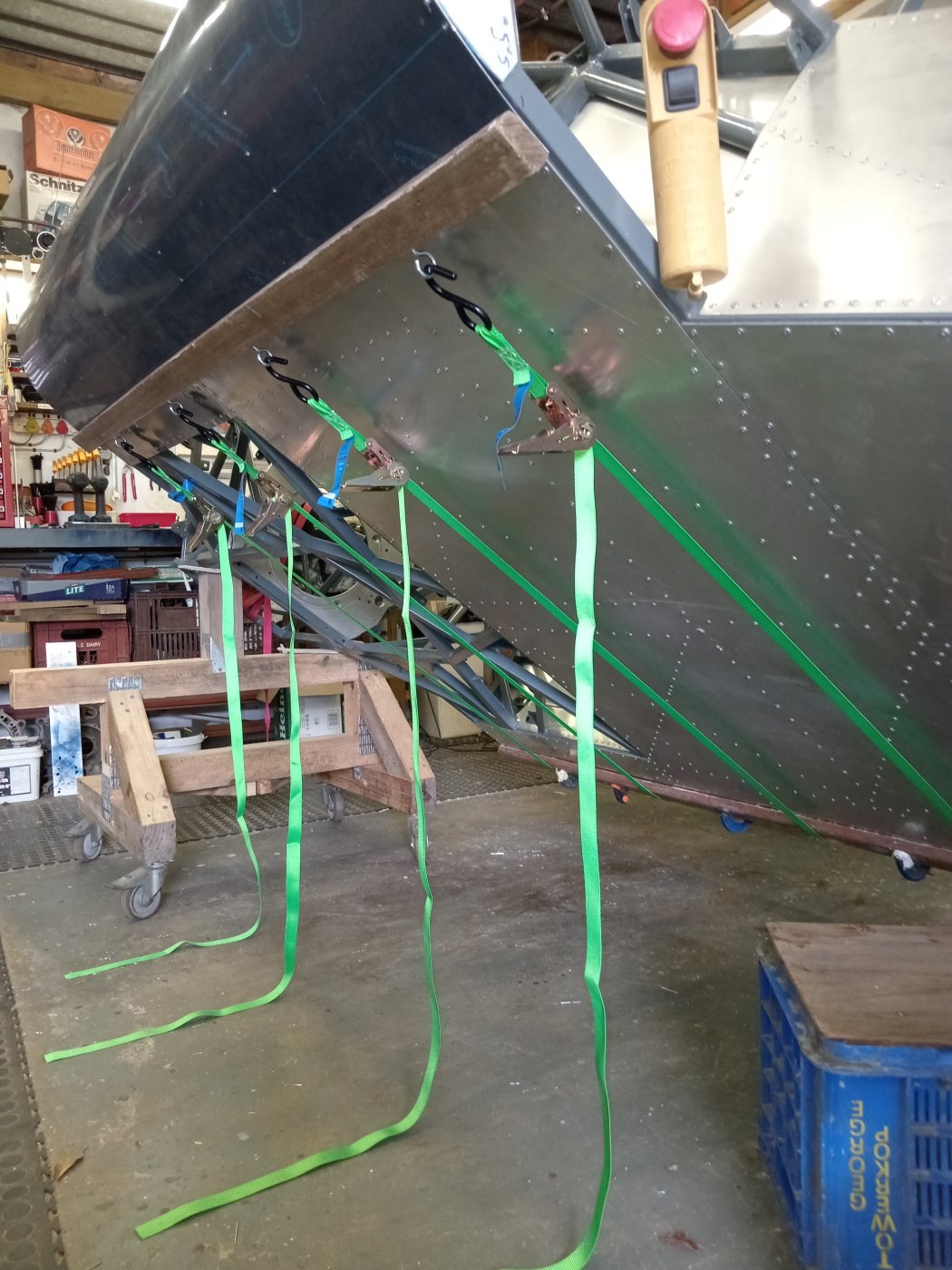

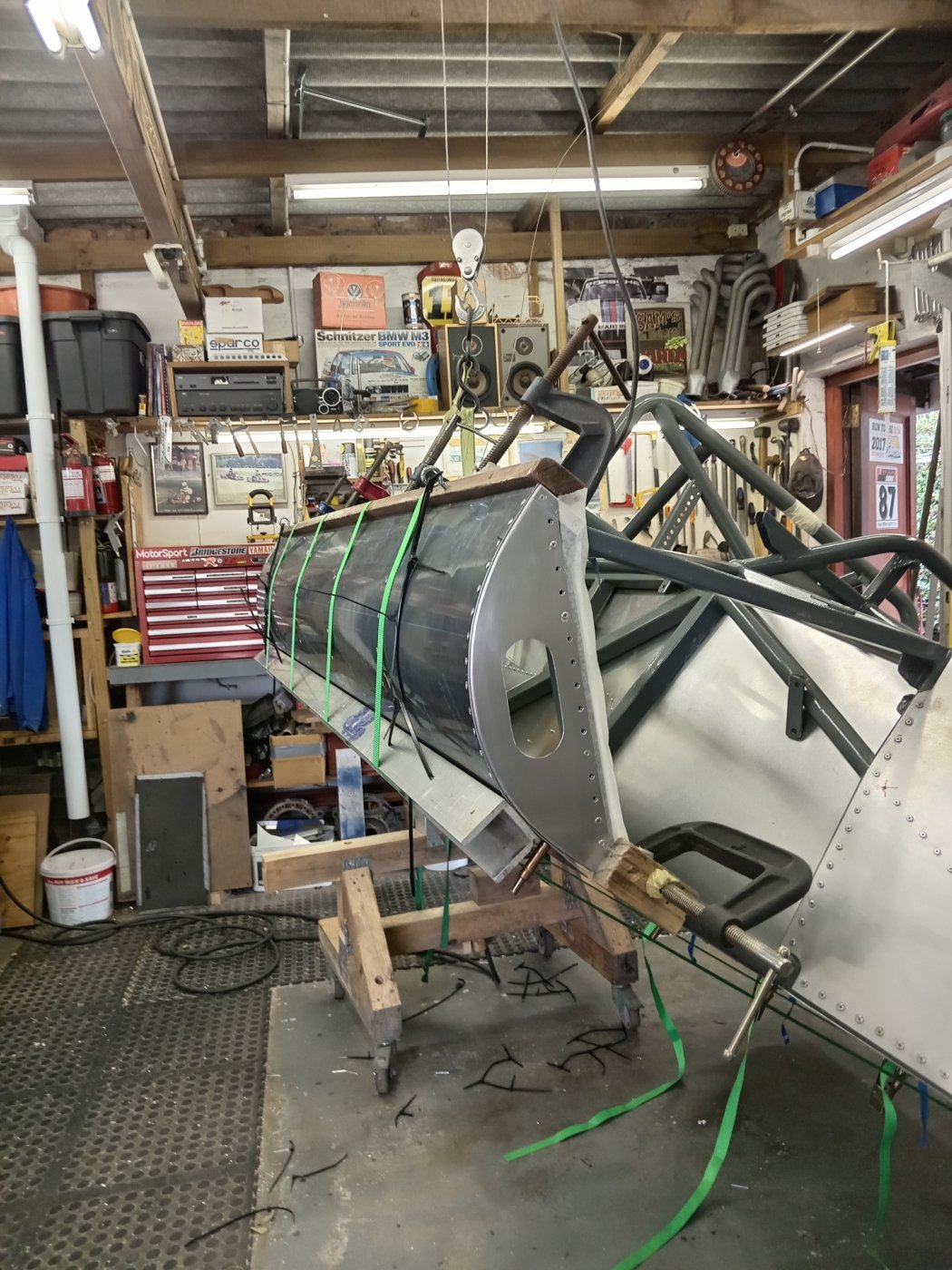

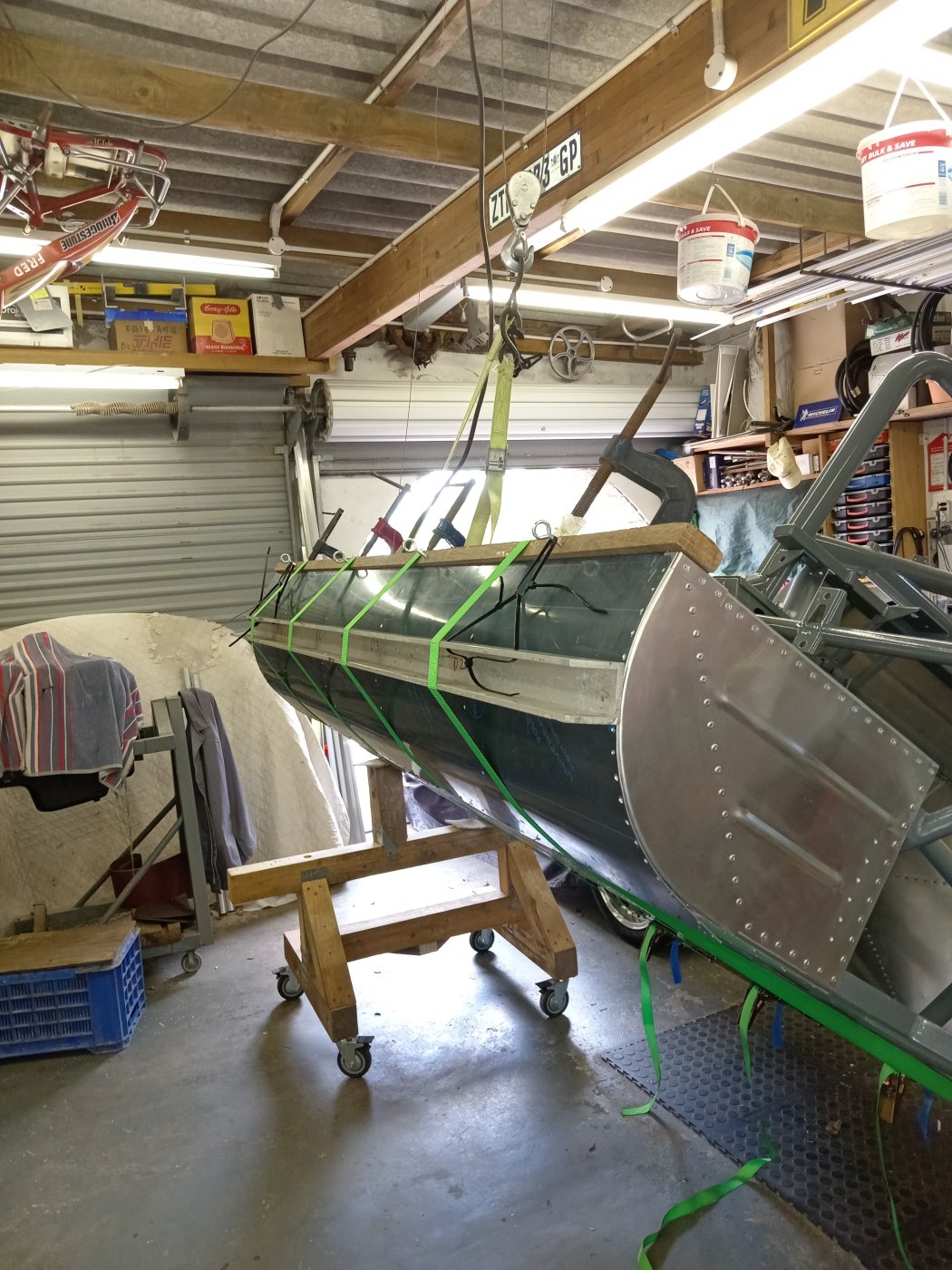

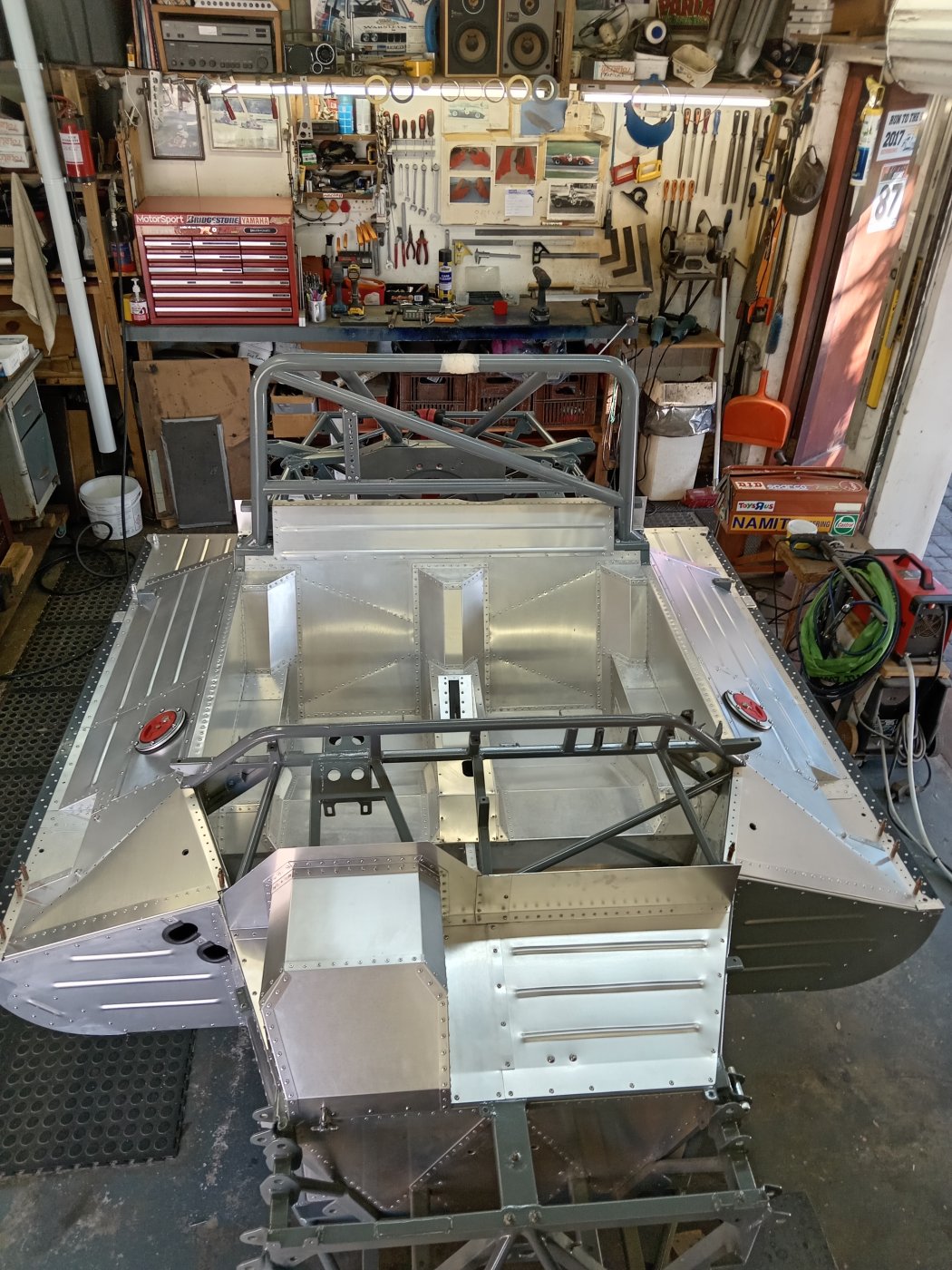

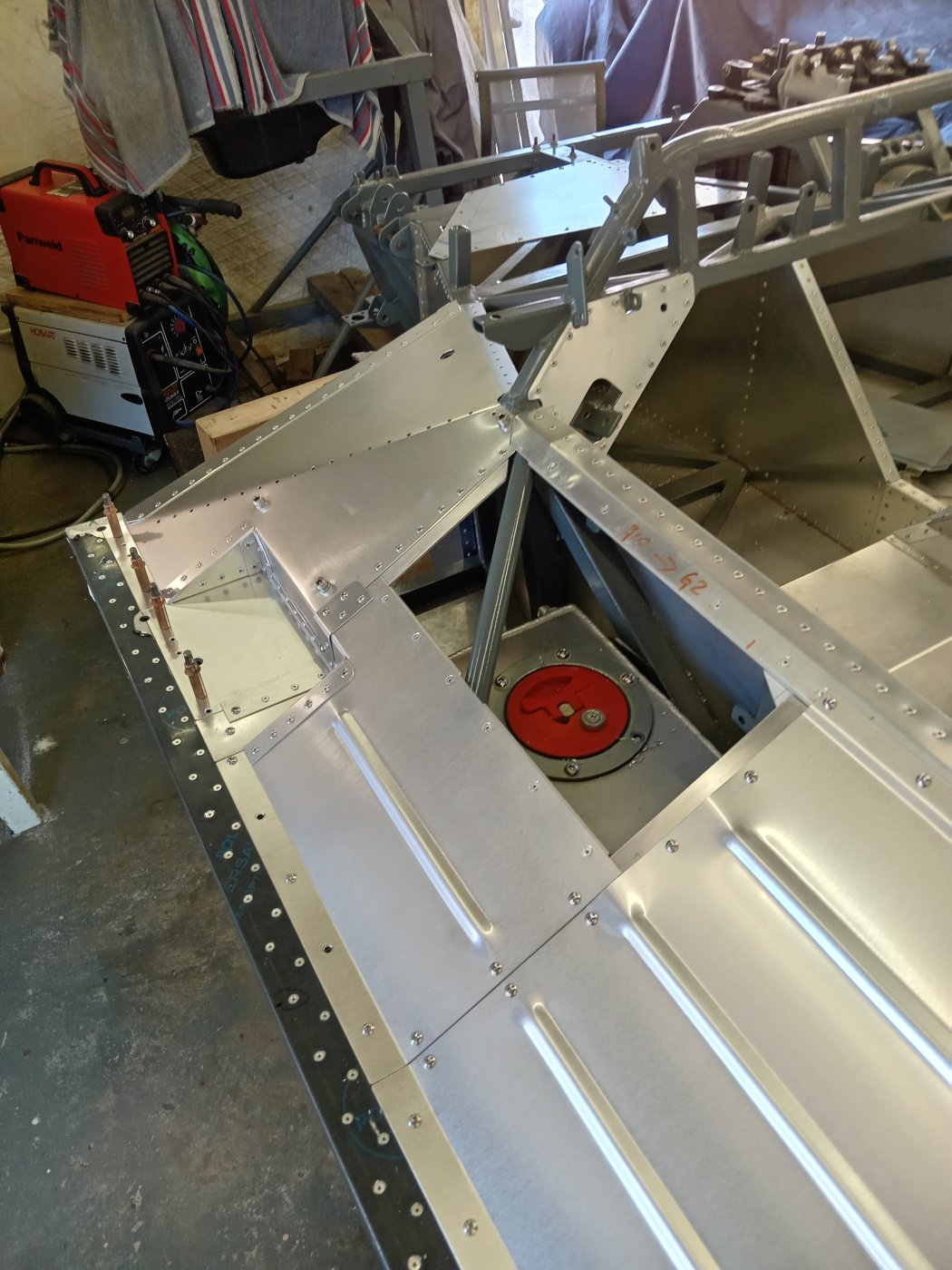

The top of the skins was secured to the chassis with clecos. The skins were initially cut larger than necessary to enable battens to be screwed to the lower ends. I screwed some hooks into the battens so I could draw the lower ends together with ratchet straps and the skins would take the shape of the ribs. Once tight I drilled through the predrilled holes in the skins into the edges of the floor plate at the bottom and into the flanges on the ribs. I had let the floor plate overlap the lower frame members enough that the skins are riveted only though the floor material, and on the outer side of the floor. This with a view to making it easier to remove a skin later should damage repairs be necessary.
I then released the straps and removed the skins again to trim the excess material. Then refitted the skins now with countersunk rivets through the top flange, ensuring they were dead straight.
The top of the skins was secured to the chassis with clecos. The skins were initially cut larger than necessary to enable battens to be screwed to the lower ends. I screwed some hooks into the battens so I could draw the lower ends together with ratchet straps and the skins would take the shape of the ribs. Once tight I drilled through the predrilled holes in the skins into the edges of the floor plate at the bottom and into the flanges on the ribs. I had let the floor plate overlap the lower frame members enough that the skins are riveted only though the floor material, and on the outer side of the floor. This with a view to making it easier to remove a skin later should damage repairs be necessary.
I then released the straps and removed the skins again to trim the excess material. Then refitted the skins now with countersunk rivets through the top flange, ensuring they were dead straight.
Last edited:

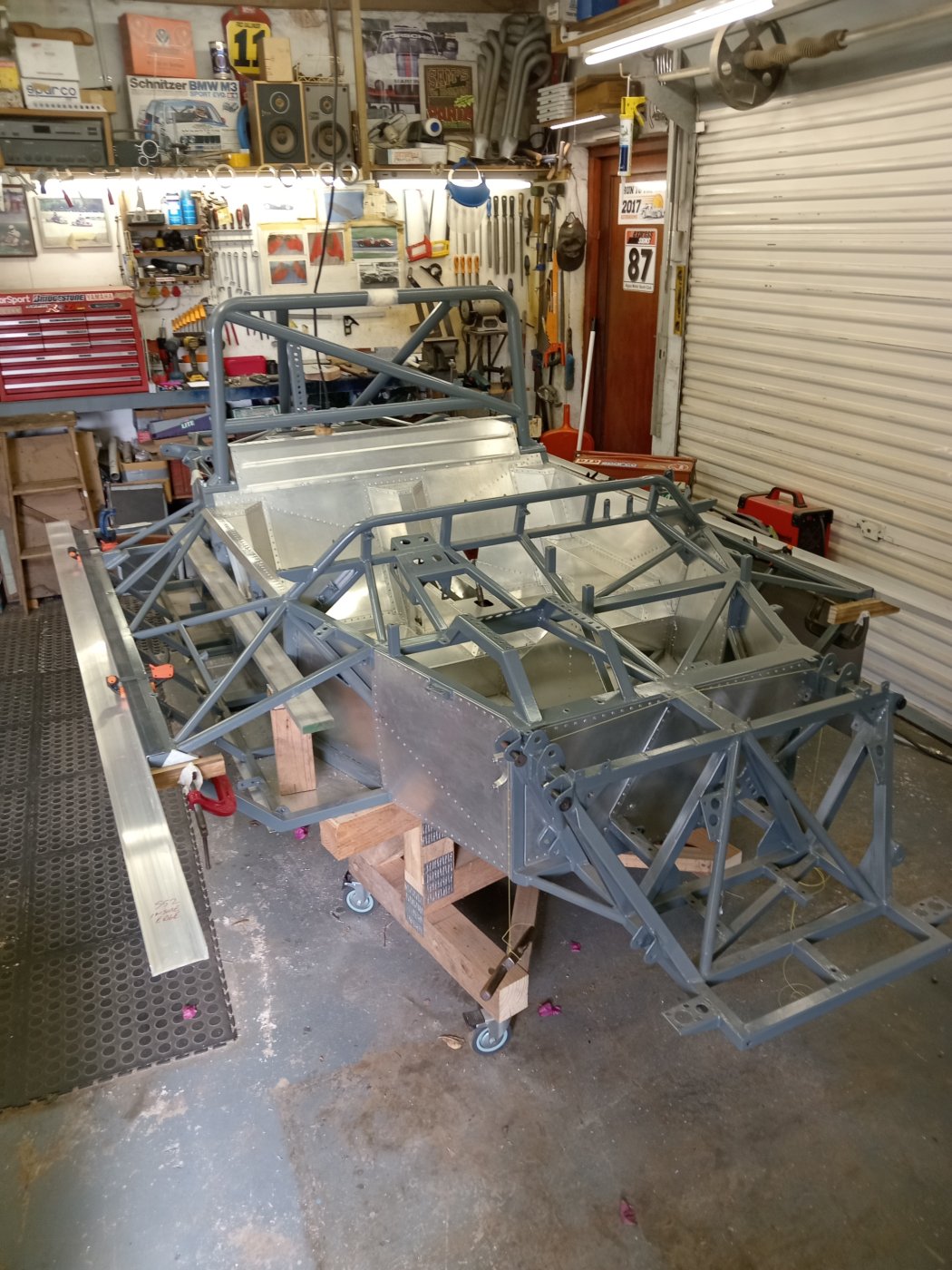

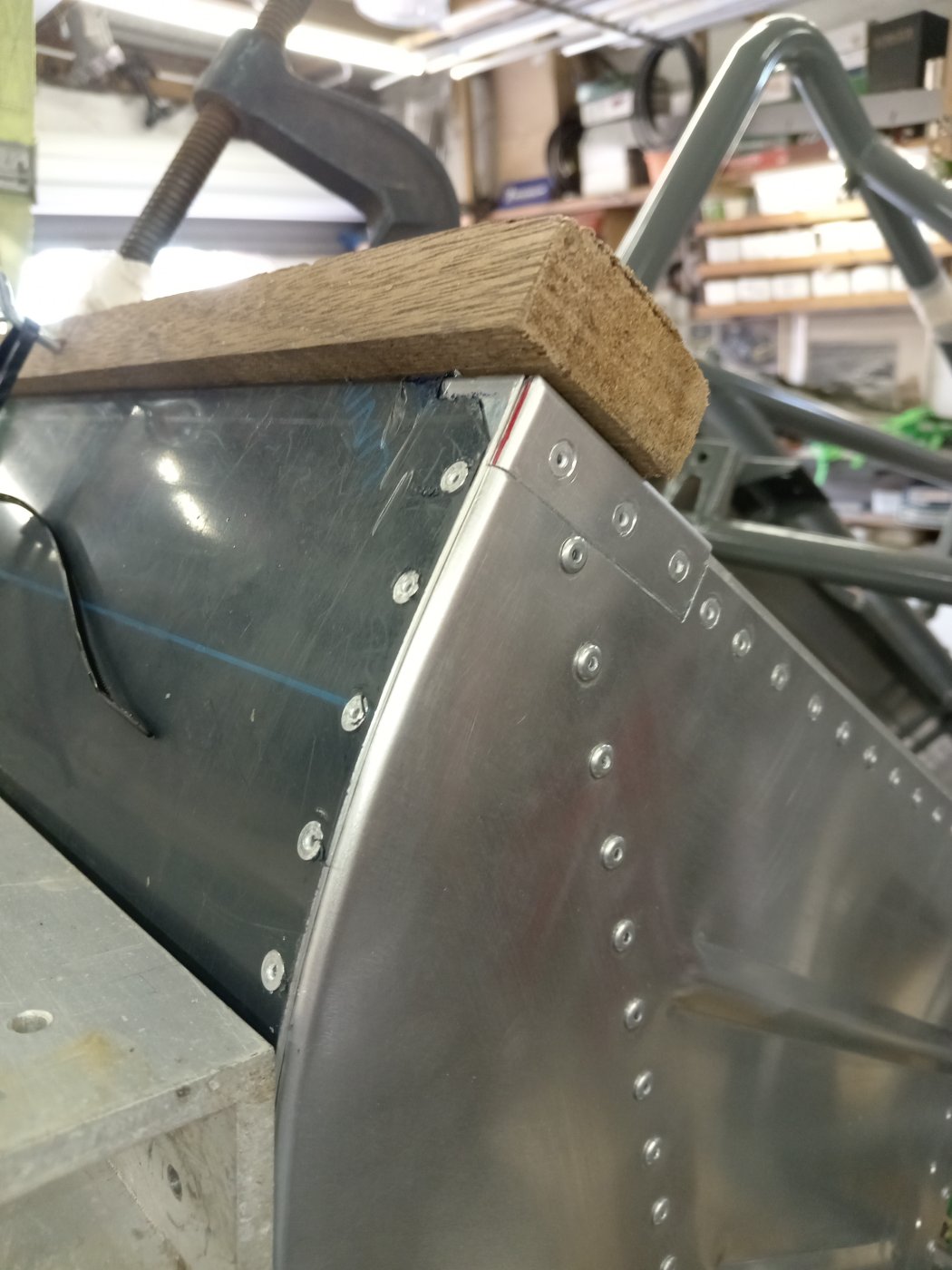

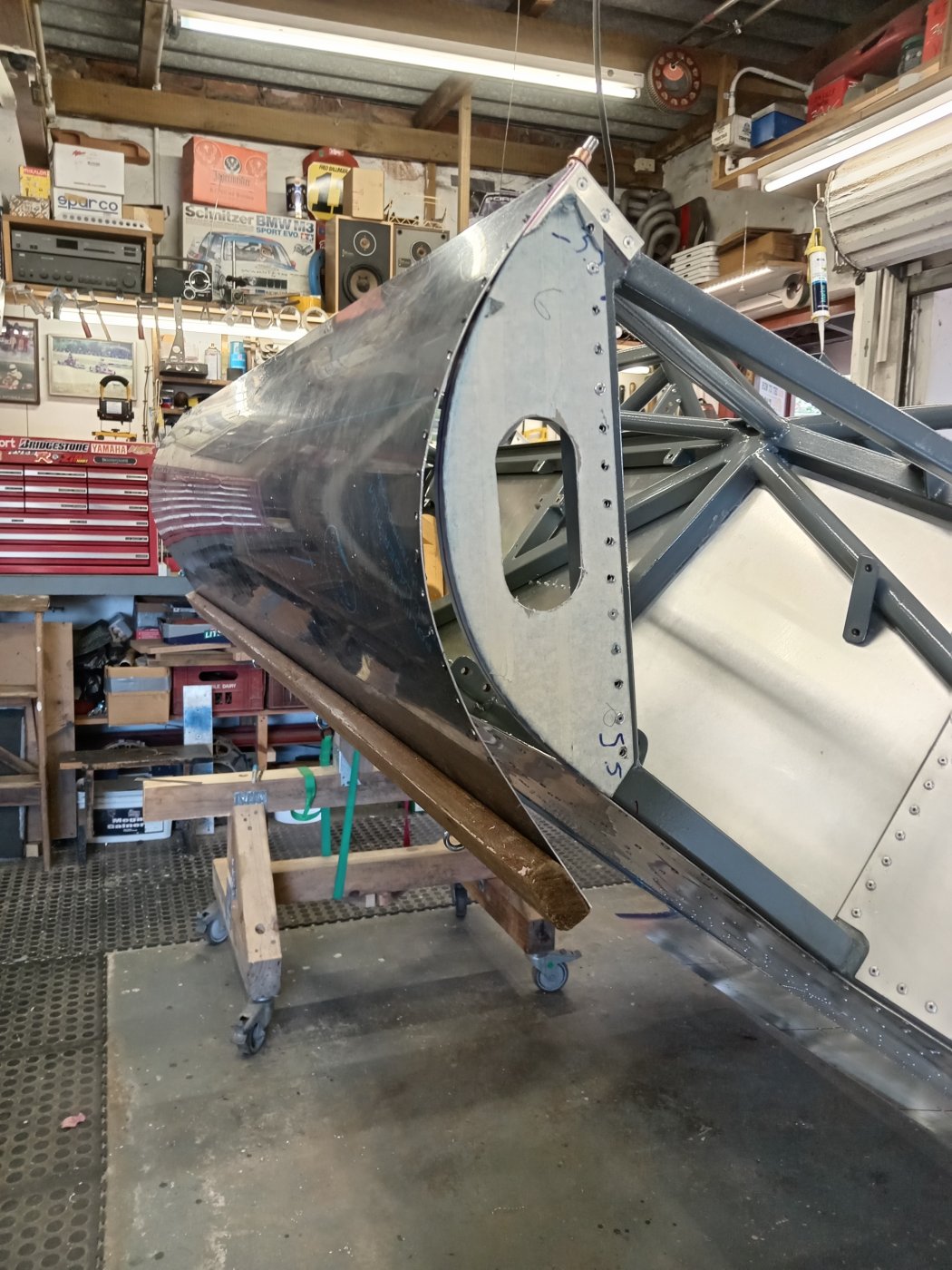

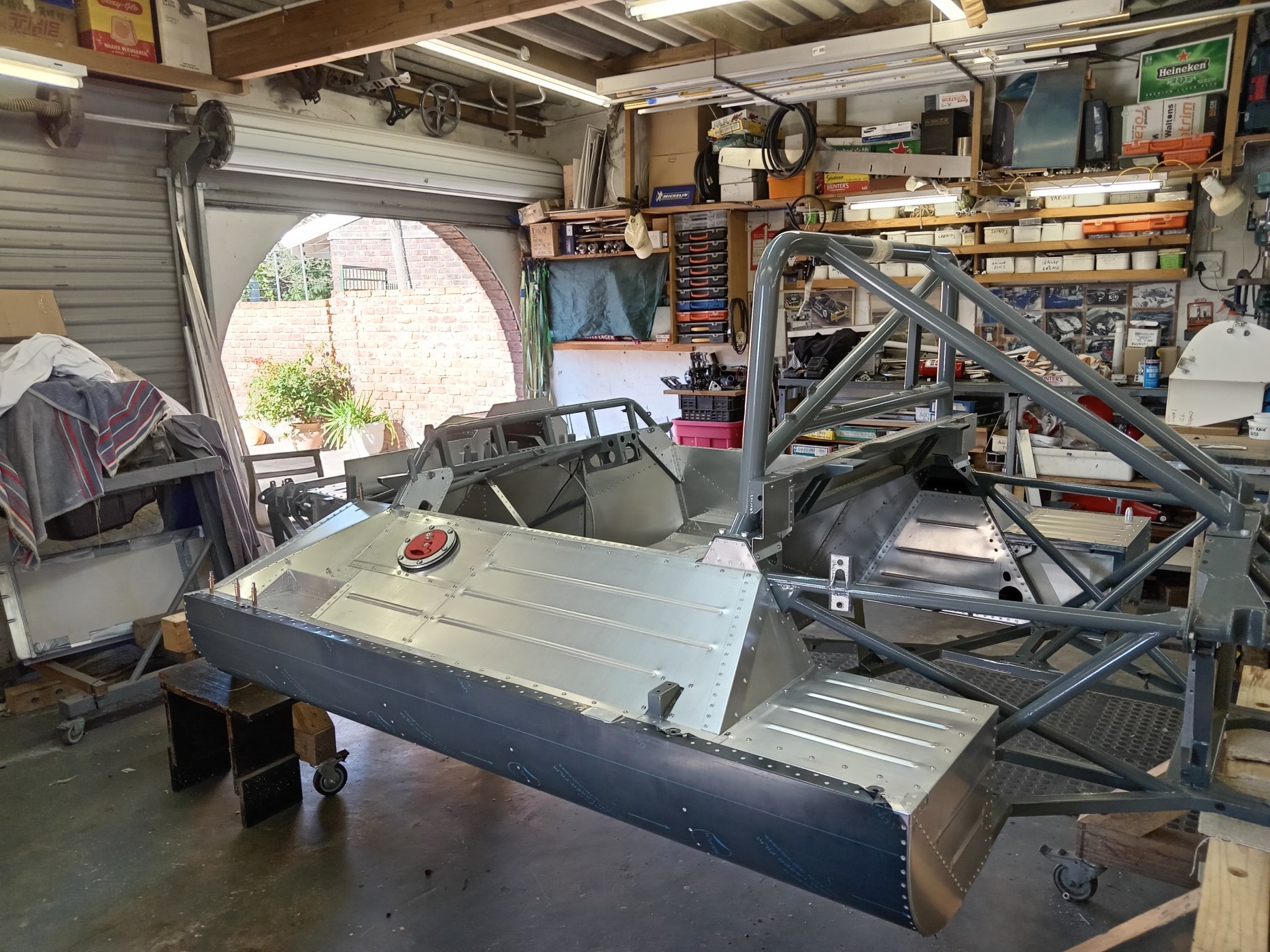

I then used the straps over an aluminum strongback to push the skin against the ribs at each rivet point, working from the top down.

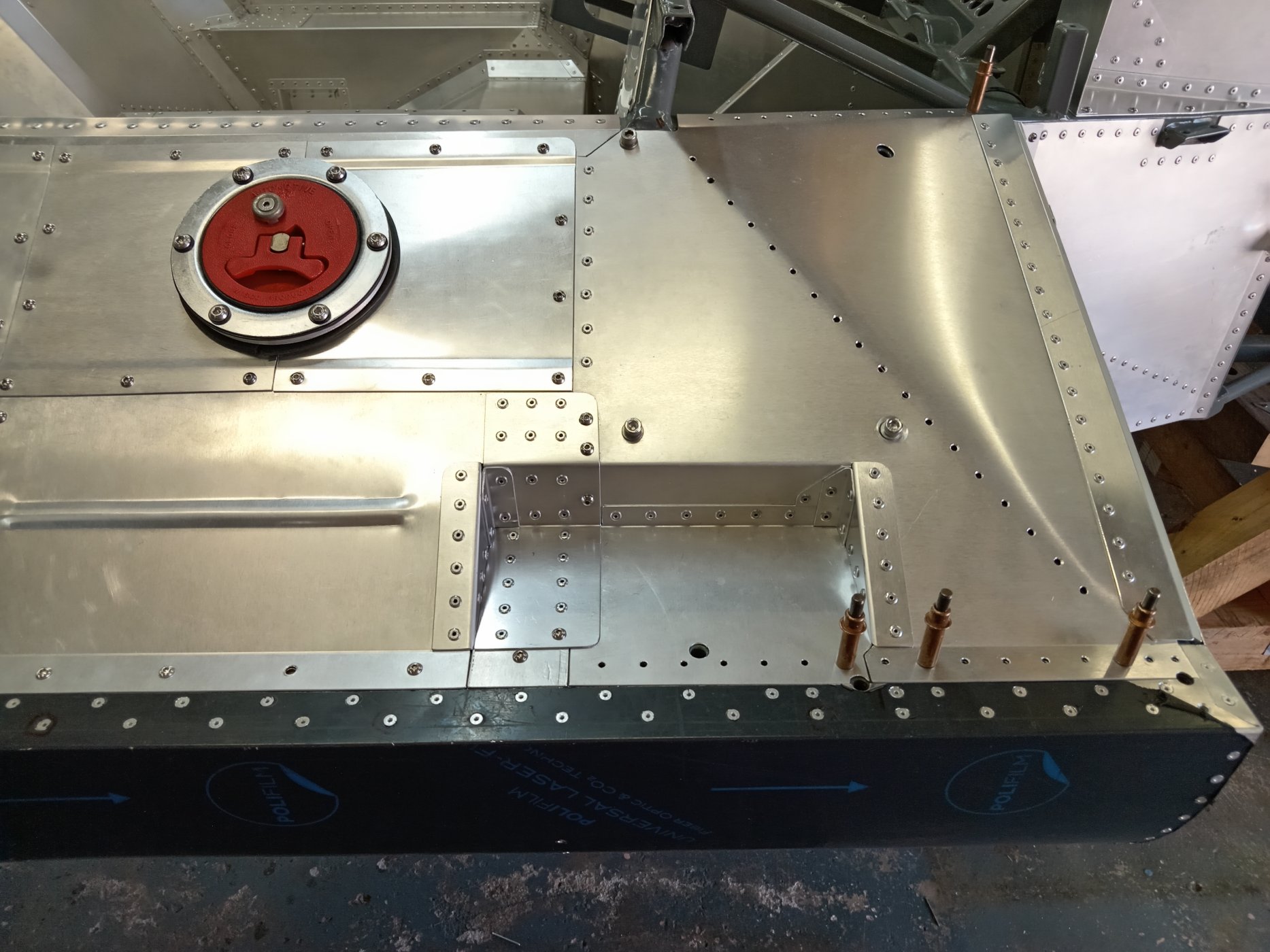

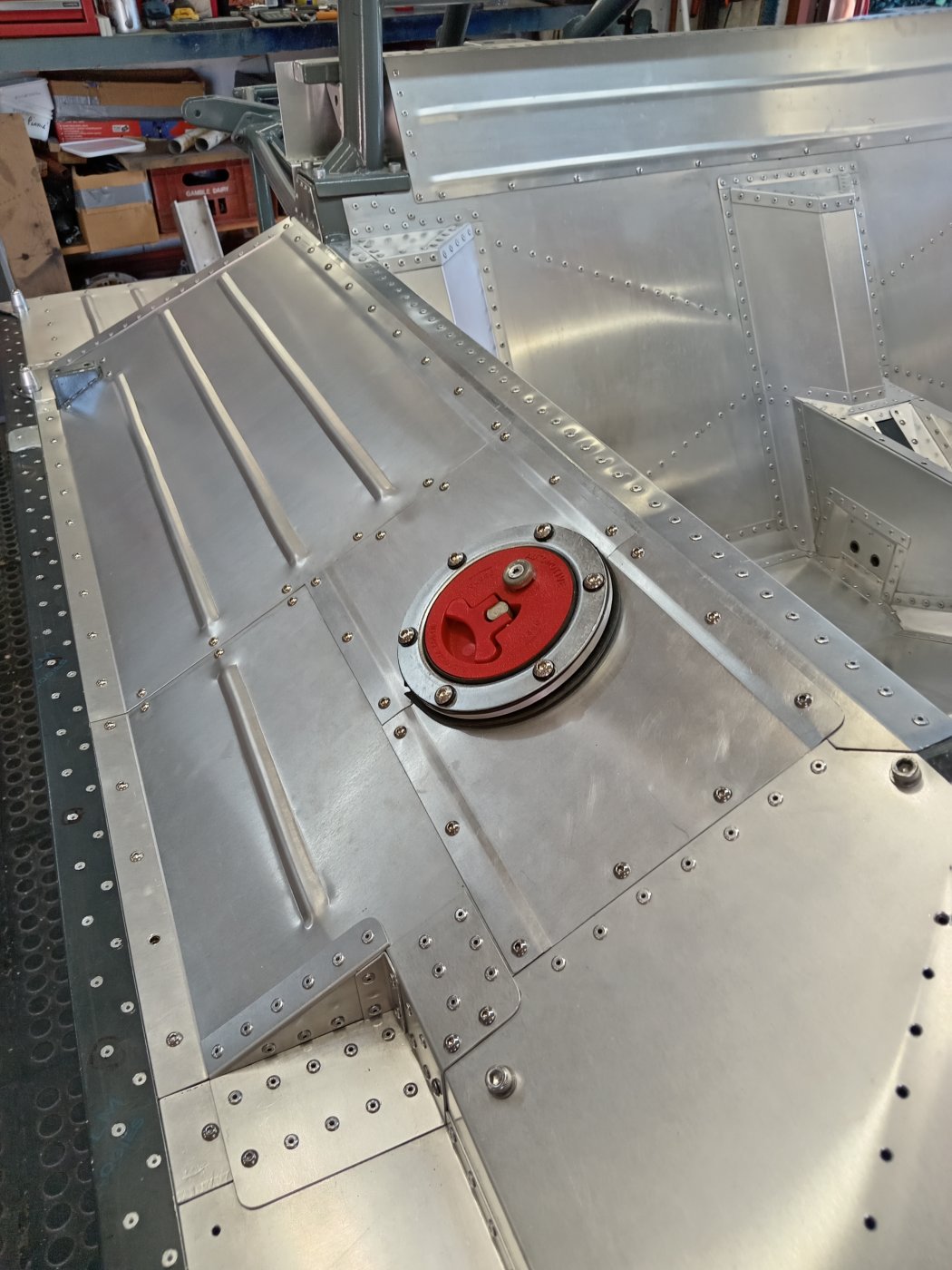

At the front and rear ends the rivets are spaced at 20 mm over the whole length of the rib flanges. On the 4 intermediate ribs on each side I started the rivets at 100 mm down from the top, and spaced at 40 mm. I did this as I was worried that lots of rivets though the body of the skin would detract from the appearance, and I was aware that the upper theoretically flat part of the skin would in fact bulge outwards slightly due to the lower bend, as we were not able to get the pre bent radius exactly right. Rivets in this area might pull a small local dent in the skin again detracting from the appearance. I did get this effect at a few places, but I could remedy this by releasing the offending rivet and pushing a thin shim between the skin and the rib flange where necessary, before refitting a rivet through the shim. These were in the order of 0.5 mm thick at the outer ribs and up to 1.2 mm thick on the inner ribs.
At the front and rear ends the rivets are spaced at 20 mm over the whole length of the rib flanges. On the 4 intermediate ribs on each side I started the rivets at 100 mm down from the top, and spaced at 40 mm. I did this as I was worried that lots of rivets though the body of the skin would detract from the appearance, and I was aware that the upper theoretically flat part of the skin would in fact bulge outwards slightly due to the lower bend, as we were not able to get the pre bent radius exactly right. Rivets in this area might pull a small local dent in the skin again detracting from the appearance. I did get this effect at a few places, but I could remedy this by releasing the offending rivet and pushing a thin shim between the skin and the rib flange where necessary, before refitting a rivet through the shim. These were in the order of 0.5 mm thick at the outer ribs and up to 1.2 mm thick on the inner ribs.

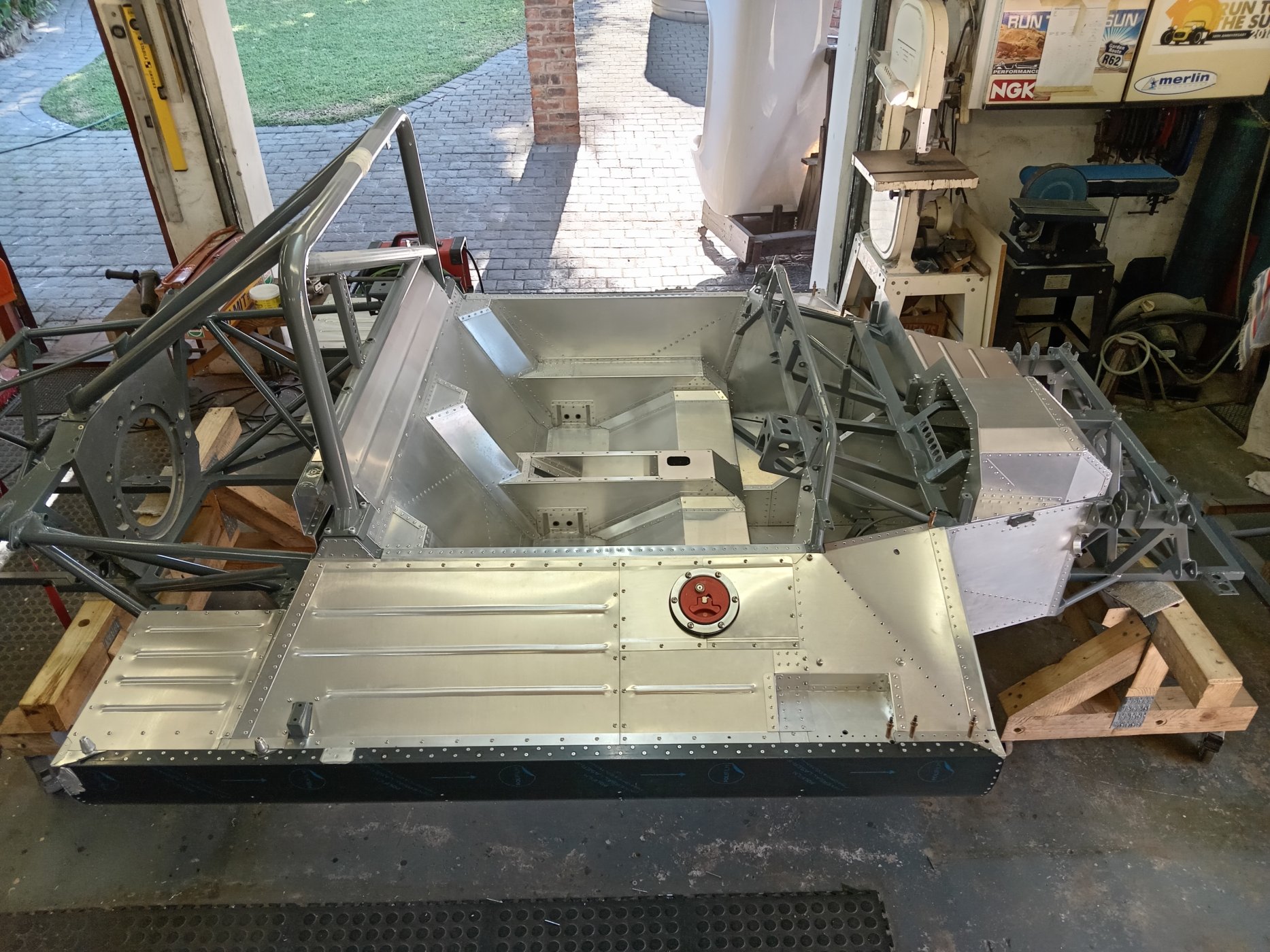

This turned out to be quite a bit of a fiddle to get right, but eventually I was happy with the result, although I haven’t taken the protective film off yet!
