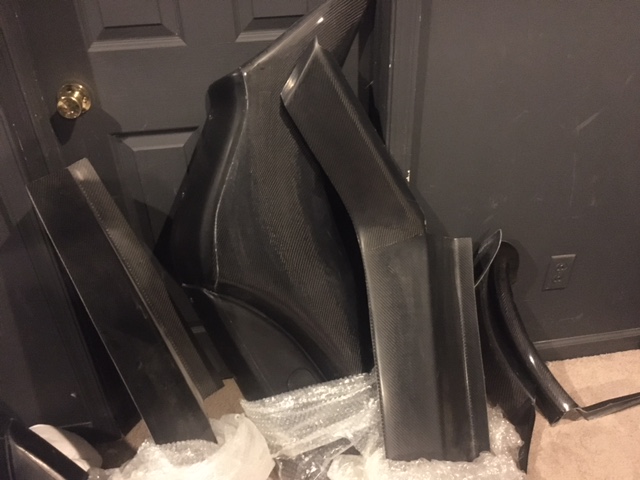

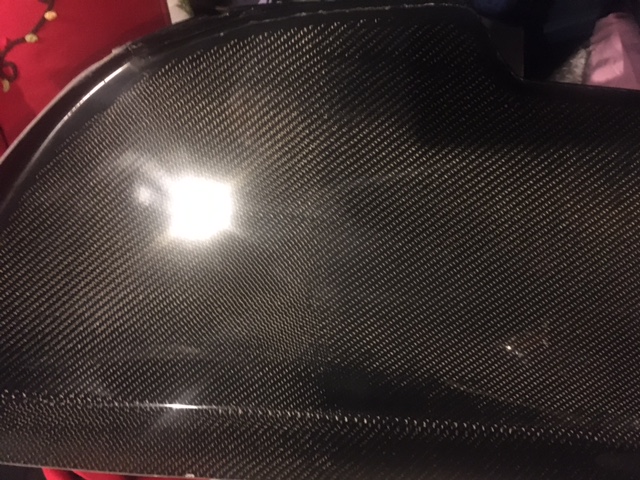

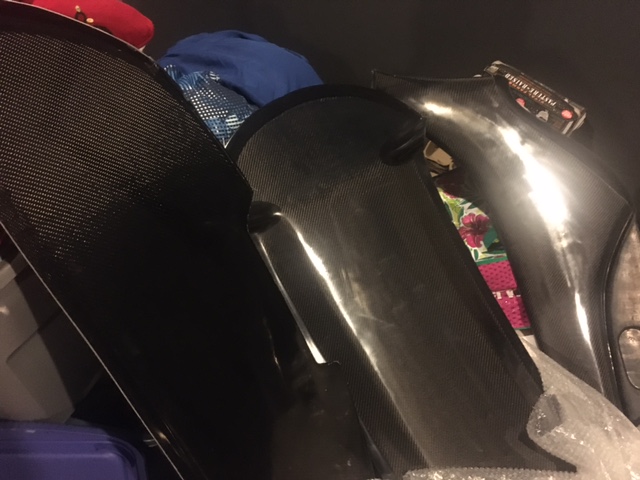

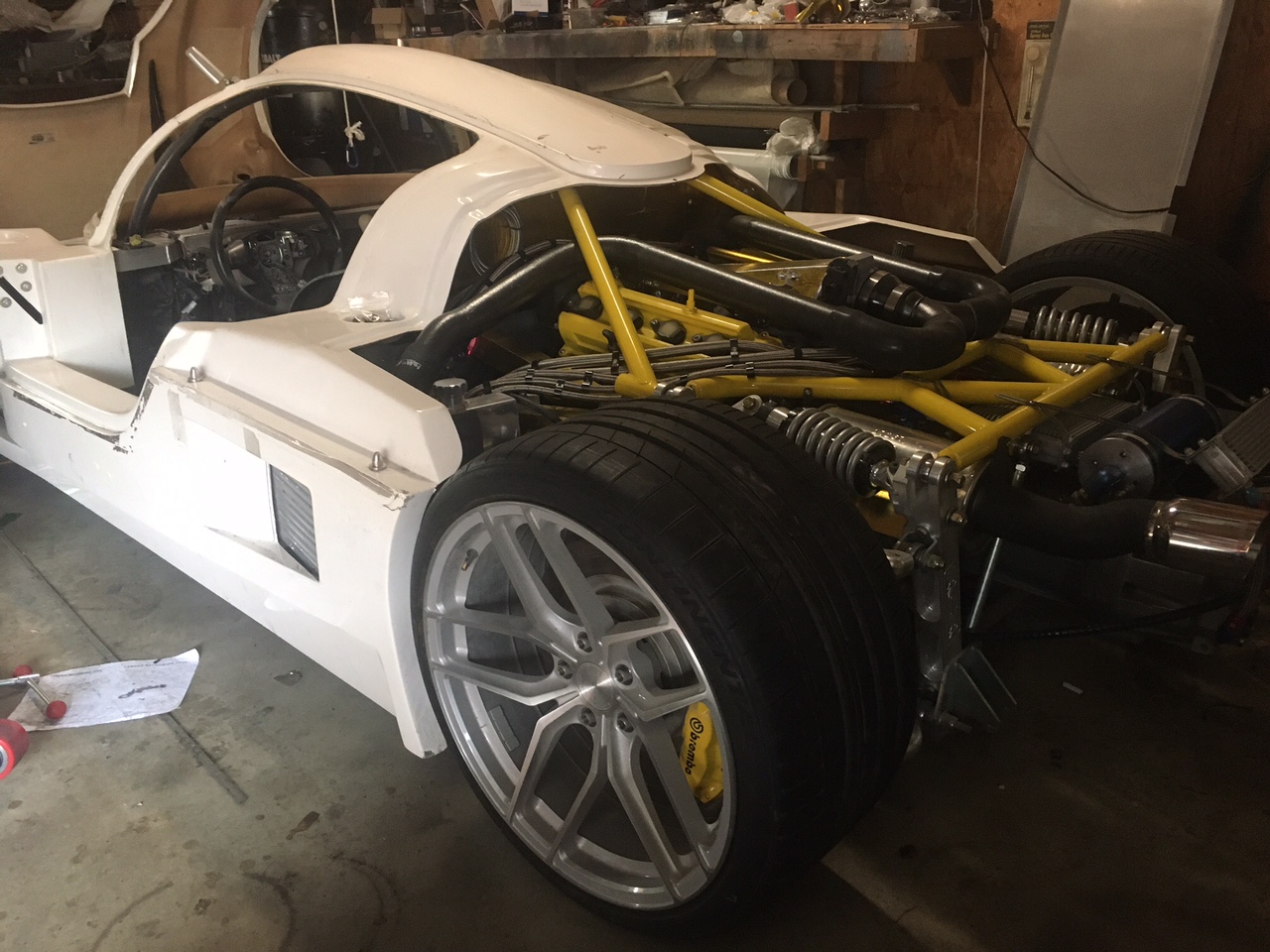

I have been doing little things on my SLC for years and have finally come to conclusion that I will probably not have time to finish it in the foreseeable future. I have a race car team and two cars to maintain, plus work, plus kids, plus wife duties, plus, plus, plus. I purchased the SLC kit, 2011, with the full Carbon Fiber interior package, ram lift kit and street tail in white.
I had a vision of what I wanted and basically have purchased all the items over the years to get there. I would say I am about 1/2 way done with the build and it is not running just yet, but close. A good portion of the design work is done. I wanted a high revving engine and know Toyotas well, which lead me to put in the a 1zufe from a Lexus SC400. 4.0L v8 DOHC with cam on bucket design is ideal for higher rpms and the engine is very overbuilt with a forged crank, 6 bolt mains and overall great design. I have this same engine type, 3mz, that uses all the same valvetrain parts, that revs to 9,000.

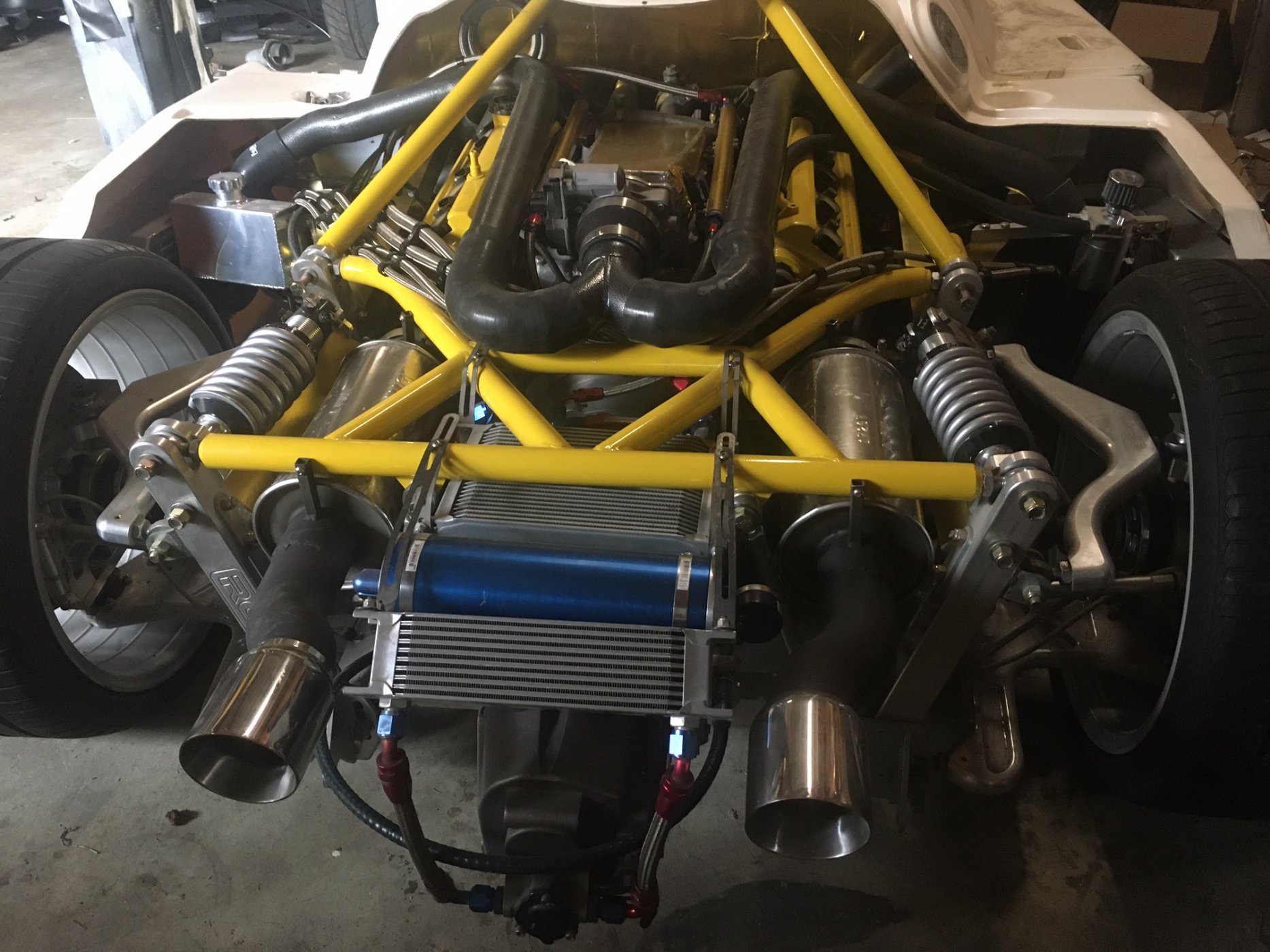

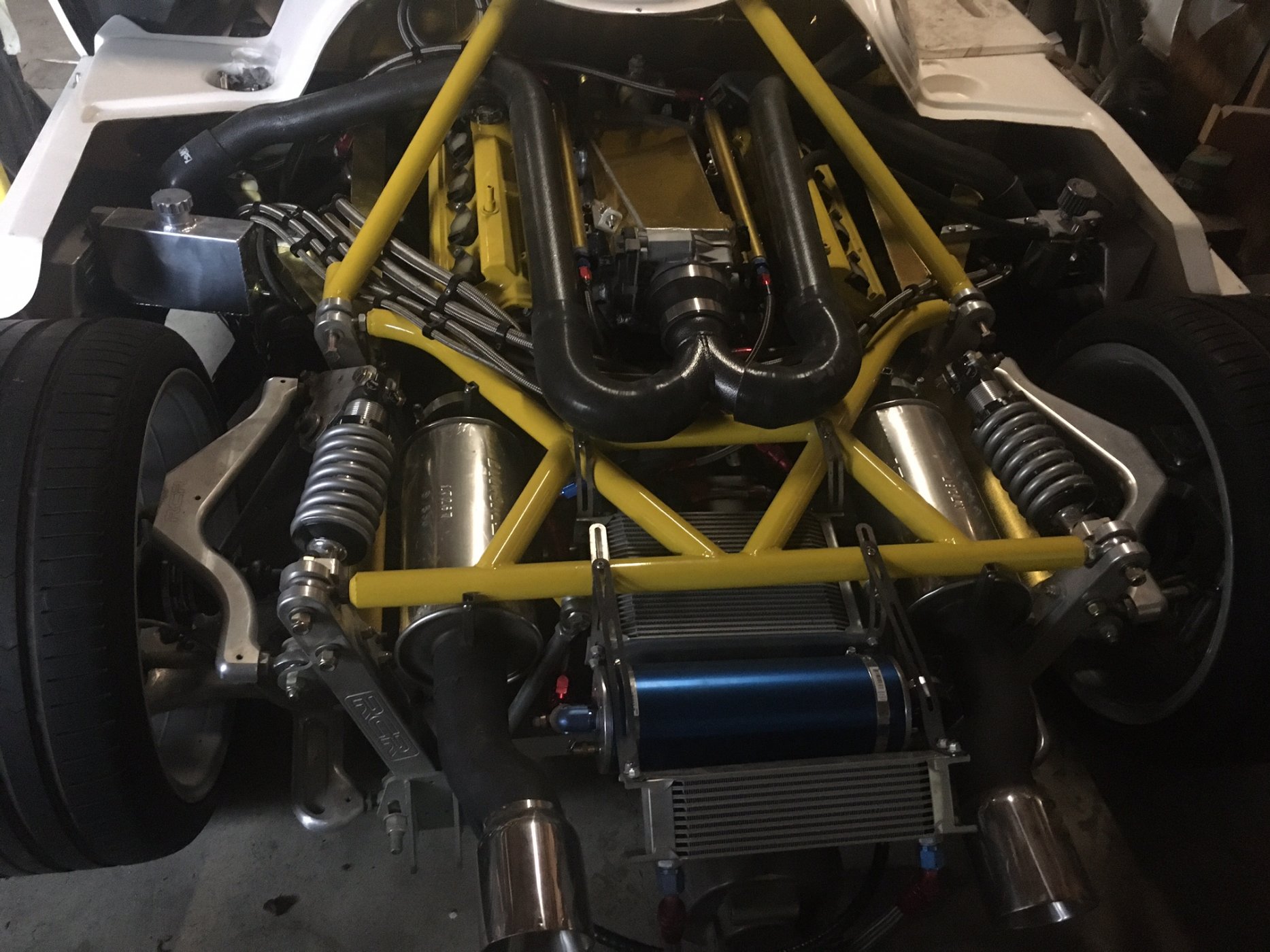

It is also mated to a Quaife full sequential 6 speed LSD transaxle, Quaife LSD shifter with cable and gear indicator. Custom Assco flywheel, RCR adapter, Tilton twin disc clutch and Tilton release bearing. You only need to use the clutch to start and stop and it shifts crazy fast. I have been into bikes forever and the idea of having a full sequential trans like a motorcycle had me wanting to go in that direction. The engine is twin turbo with Borg Warner EFR turbos for very fast spool up and long term higher rpm capabilities and not run out of air. I made a custom TIG welded alum sheet metal intake manifold with velocity stacks inside at the correct plenum size. The stock manifold is the biggest bottleneck on the engine as it was made for 2K rpm. This intake is designed for higher rpms and to open up the hp potential. My goal was to do it in two stages. The stage I, which is what it is now, is for 10-14 psi and have 500-550rwhp and stage II would be with custom cams, shimless buckets, forged con rods and pistons. Then I would rev to 8500rpm with 18psi and have 600-700rwhp. I will share all my information on the engine and specs on what to do for stage II. I have the engine/trans mounted in the car, made custom SS hard coolant lines, rad is mounted with fans, coolant hoses and lines figured out, all oil lines are an fittings and fuel lines, accusump, oil cooler and trans cooler. Fuel fill up hoses and fittings are purchased. The fuel system uses a walbro lift pump to WIX filter system to a Radium Surge tank with high flow pump and FPR built it. It is a slick setup and I made custom fuel rails to make it all work. I used 1,000cc injector dynamics fuel injectors as they are controllable for idle, but also plenty enough flow long term to high rpm and boost without going static. I made a custom engine harness and it mates to a MS3pro, though I did decide to put a DBW TB and get a CTS pedal as I was going to use an EMU Black ecu instead. The MS3 pro custom engine harness is complete and could be used if you go with that ecu. The engine headers are custom made to fit the turbos with 8 EGT bung setup if needed and a 3" downpipe to dual muffler setup. It has dual air to air intercoolers with fans and inlet piping is powdercoated as well as the rear X member. I did the Gold heat tape on the rear chassis and firewall as well.
I took the calipers apart and had them powdercoated in yellow with custom brembo stickers and rebuilt with all new seals. I read people had the wilwood brake reserves leak so I got the Tilton brake/clutch reserve. I did make the pedals move back and forth via a linear actuator as I am short guy and wanted to make it driveable for all. It is a pretty nice setup and I have a video to show if you want. On the body I wanted a more modern headlight configuration and purchased a set of Jaguar F type headlight assemblies, but the body is not cut and stock now. I also got the wire connectors and terminals from the UK. I have not seen anyone do that light setup, but it will fit the SLC very nice with the same type of curve that goes with the hood. I have not cut up the stock clam yet and the stock SLC lights and setup will come with it also. For rear taillights I was going to use the C7 vette lights and they come as well if you want to use those instead of stock, but it also comes with the stock SLC taillights and the body was not modified for them yet. This will give you choices of what you will want to do.

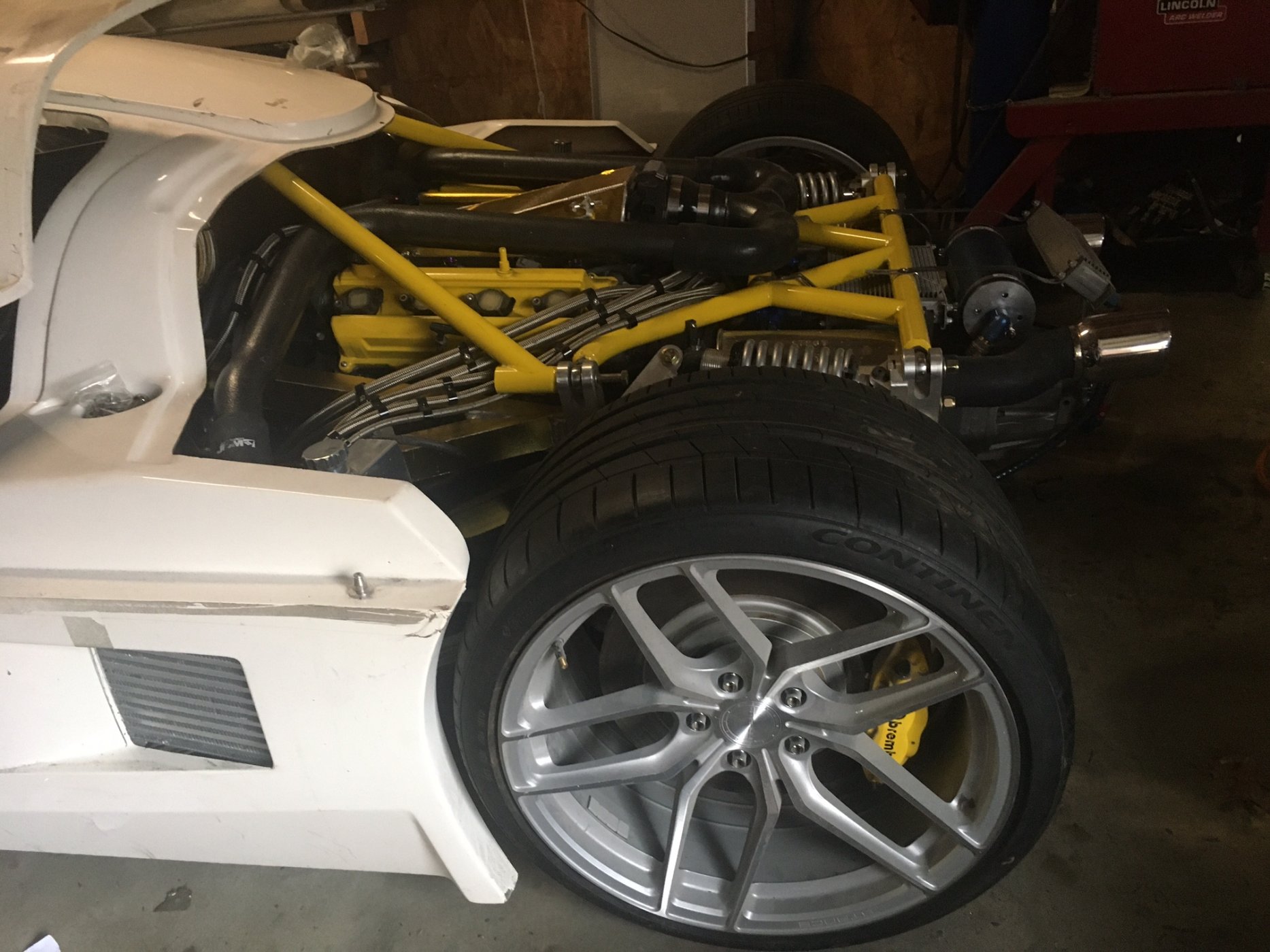

Wheels and tires are 20" Stance SF03 wheels with Continental DW 335/25/20 and 285/30/20 tires in the ZO6 sizing. It has the QA1 stock shock setup and I was going to upgrade the springs, I just have not gotten to it yet. Interior I did get to yet, but having the full carbon package will make it easy. I was planning on getting an AIM PNP dash, but I still have the stock cluster it came it.
I figure I have spent 85-90K on all the parts I have purchased and I am sure I have forgotten some items on my list, see the list below. I am asking $60K for it all. You can email at [email protected]

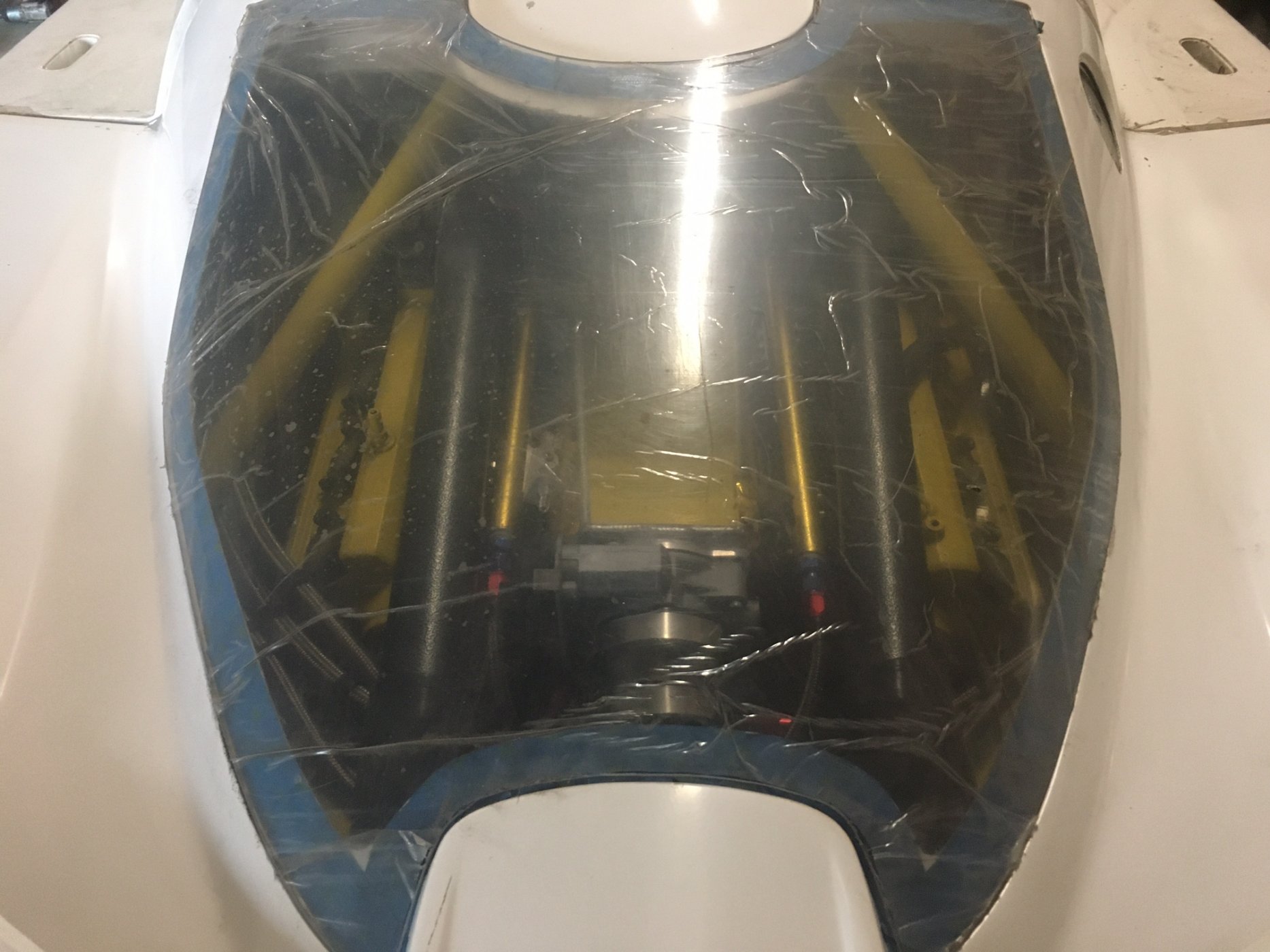

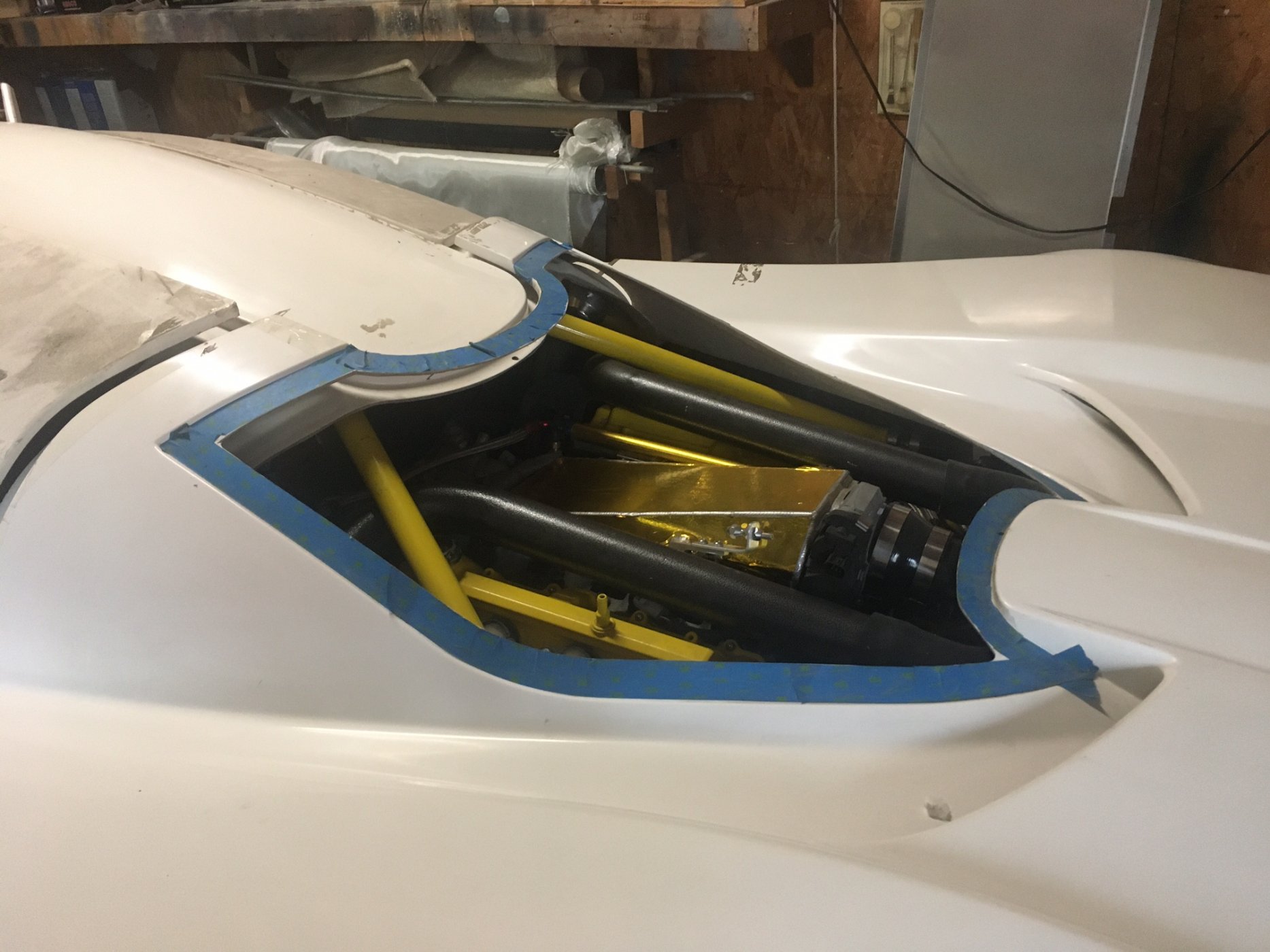

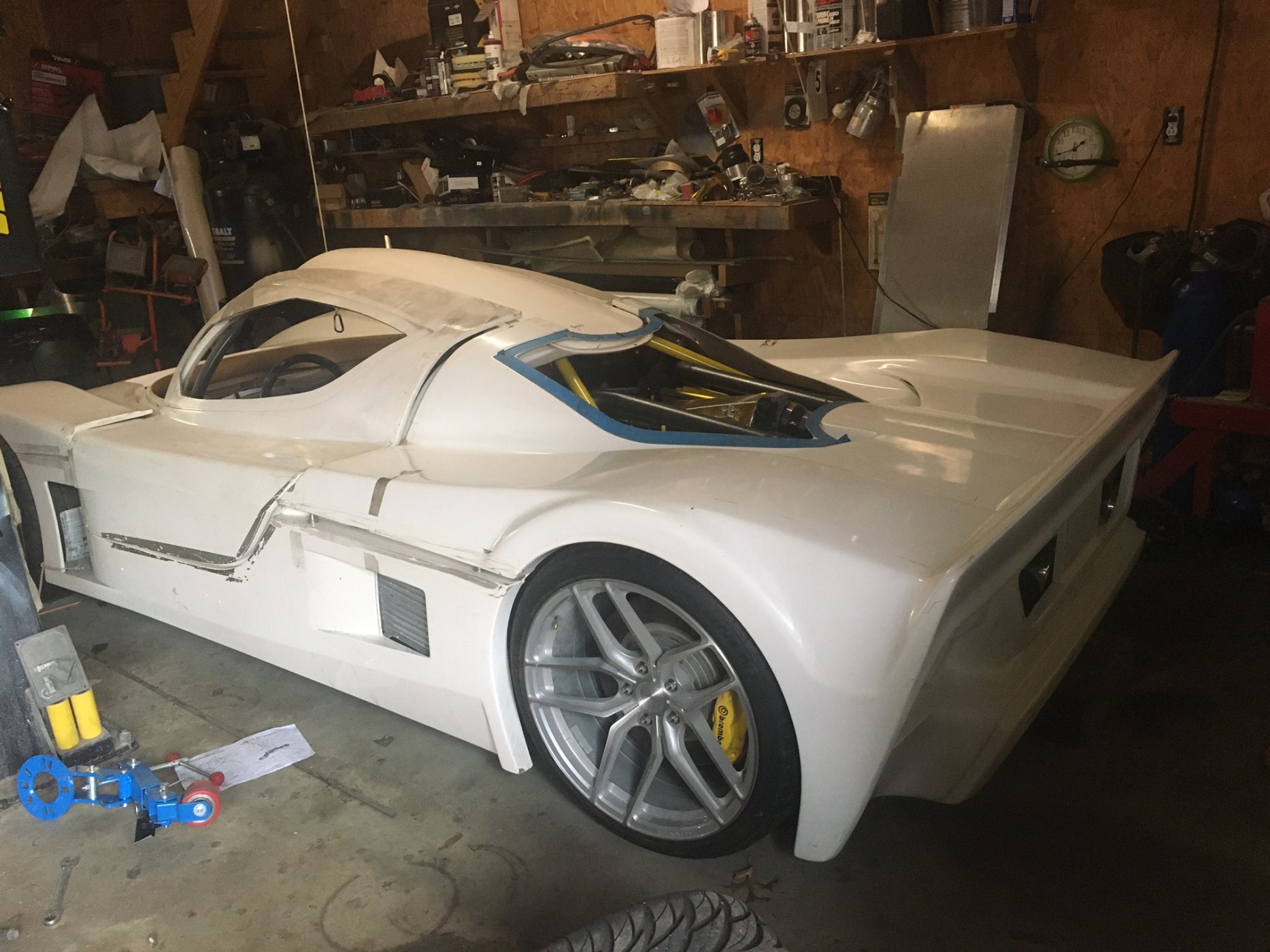

FYI- the body is fine, it is just dirty from tape from shipment from years ago.
I had a vision of what I wanted and basically have purchased all the items over the years to get there. I would say I am about 1/2 way done with the build and it is not running just yet, but close. A good portion of the design work is done. I wanted a high revving engine and know Toyotas well, which lead me to put in the a 1zufe from a Lexus SC400. 4.0L v8 DOHC with cam on bucket design is ideal for higher rpms and the engine is very overbuilt with a forged crank, 6 bolt mains and overall great design. I have this same engine type, 3mz, that uses all the same valvetrain parts, that revs to 9,000.
It is also mated to a Quaife full sequential 6 speed LSD transaxle, Quaife LSD shifter with cable and gear indicator. Custom Assco flywheel, RCR adapter, Tilton twin disc clutch and Tilton release bearing. You only need to use the clutch to start and stop and it shifts crazy fast. I have been into bikes forever and the idea of having a full sequential trans like a motorcycle had me wanting to go in that direction. The engine is twin turbo with Borg Warner EFR turbos for very fast spool up and long term higher rpm capabilities and not run out of air. I made a custom TIG welded alum sheet metal intake manifold with velocity stacks inside at the correct plenum size. The stock manifold is the biggest bottleneck on the engine as it was made for 2K rpm. This intake is designed for higher rpms and to open up the hp potential. My goal was to do it in two stages. The stage I, which is what it is now, is for 10-14 psi and have 500-550rwhp and stage II would be with custom cams, shimless buckets, forged con rods and pistons. Then I would rev to 8500rpm with 18psi and have 600-700rwhp. I will share all my information on the engine and specs on what to do for stage II. I have the engine/trans mounted in the car, made custom SS hard coolant lines, rad is mounted with fans, coolant hoses and lines figured out, all oil lines are an fittings and fuel lines, accusump, oil cooler and trans cooler. Fuel fill up hoses and fittings are purchased. The fuel system uses a walbro lift pump to WIX filter system to a Radium Surge tank with high flow pump and FPR built it. It is a slick setup and I made custom fuel rails to make it all work. I used 1,000cc injector dynamics fuel injectors as they are controllable for idle, but also plenty enough flow long term to high rpm and boost without going static. I made a custom engine harness and it mates to a MS3pro, though I did decide to put a DBW TB and get a CTS pedal as I was going to use an EMU Black ecu instead. The MS3 pro custom engine harness is complete and could be used if you go with that ecu. The engine headers are custom made to fit the turbos with 8 EGT bung setup if needed and a 3" downpipe to dual muffler setup. It has dual air to air intercoolers with fans and inlet piping is powdercoated as well as the rear X member. I did the Gold heat tape on the rear chassis and firewall as well.
I took the calipers apart and had them powdercoated in yellow with custom brembo stickers and rebuilt with all new seals. I read people had the wilwood brake reserves leak so I got the Tilton brake/clutch reserve. I did make the pedals move back and forth via a linear actuator as I am short guy and wanted to make it driveable for all. It is a pretty nice setup and I have a video to show if you want. On the body I wanted a more modern headlight configuration and purchased a set of Jaguar F type headlight assemblies, but the body is not cut and stock now. I also got the wire connectors and terminals from the UK. I have not seen anyone do that light setup, but it will fit the SLC very nice with the same type of curve that goes with the hood. I have not cut up the stock clam yet and the stock SLC lights and setup will come with it also. For rear taillights I was going to use the C7 vette lights and they come as well if you want to use those instead of stock, but it also comes with the stock SLC taillights and the body was not modified for them yet. This will give you choices of what you will want to do.
Wheels and tires are 20" Stance SF03 wheels with Continental DW 335/25/20 and 285/30/20 tires in the ZO6 sizing. It has the QA1 stock shock setup and I was going to upgrade the springs, I just have not gotten to it yet. Interior I did get to yet, but having the full carbon package will make it easy. I was planning on getting an AIM PNP dash, but I still have the stock cluster it came it.
I figure I have spent 85-90K on all the parts I have purchased and I am sure I have forgotten some items on my list, see the list below. I am asking $60K for it all. You can email at [email protected]
Total parts cost so far | $ 85,440 |
SLC kit- street tail | $ 43,000 |
Carbon interior kit | $ 2,000 |
body cut out | $ 2,000 |
Ram lift kit | $ 1,000 |
Quaife seq LSD 6sp trans | $ 16,000 |
Flywheel | $ 1,000 |
tilton twin disc | $ 750 |
tilton release bearing | $ 250 |
Quaife SEQ shifter and cable | $ 800 |
Quaife gear indicator | $ 200 |
starter | $ 100 |
powder coated brembos | $ 200 |
water pipes welded | $ 250 |
Stance 20" wheels | $ 1,600 |
Conti DW tires | $ 1,000 |
Corvette steering wheel | $ 100 |
pedals move | $ 200 |
tilton brake fluid res | $ 150 |
brake lines | $ 50 |
wilwood parking calipers | $ 150 |
throttle cable | $ 150 |
new seats from RCR | $ 400 |
jag F type headlights | $ 750 |
jag F type connector | $ 100 |
C7 taillights | $ 400 |
C7 taillights connector | $ 50 |
1uzfe engine | $ 750 |
1uzfe new water pump | $ 100 |
Alternator | $ 75 |
AC compressor | $ 75 |
custom headers | $ 750 |
BW EFR turbos | $ 3,700 |
exhaust | $ 150 |
mufflers | $ 150 |
muffler tips | $ 50 |
intake | $ 1,500 |
fuel rail | $ 250 |
fuel injectors ID 1000cc | $ 1,000 |
coolant tank | $ 50 |
oil blow by tank | $ 25 |
accusump | $ 200 |
oil cooler | $ 75 |
trans cooler | $ 50 |
oil an lines and fittings | $ 750 |
Radium surge tank/pump/FPR | $ 700 |
lift pump | $ 100 |
fuel filters | $ 80 |
fuel an lines | $ 250 |
harness | $ 500 |
intercoolers | $ 150 |
intercooler fans | $ 60 |
intercooler pipes | $ 150 |
intercooler pipes powdercoated | $ 100 |
cross X brace powdercoated | $ 50 |
stereo/radio/amp/speakers | $ 500 |
brake pads upgraded | $ 450 |
