Want a little engine riddle?
- Thread starter weisserheilbronn
- Start date

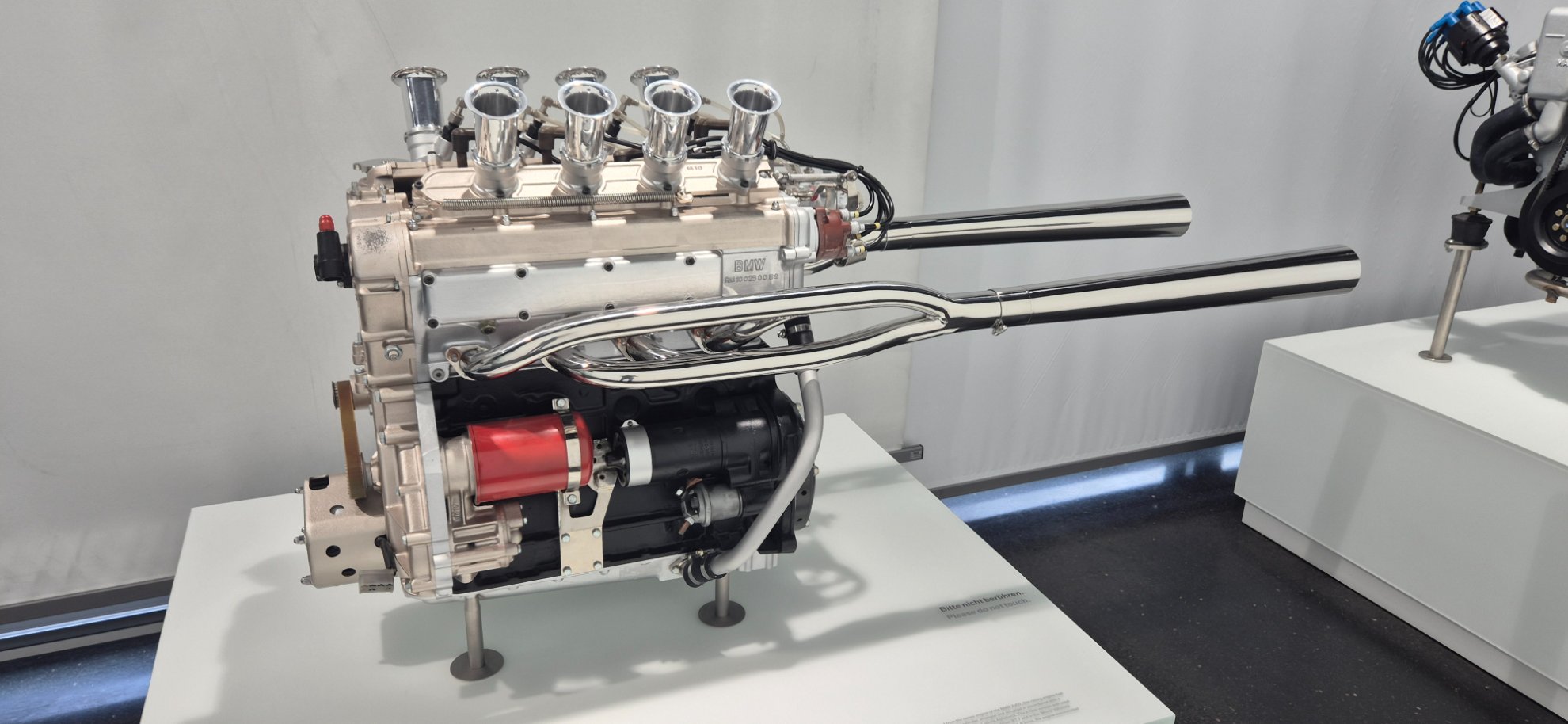

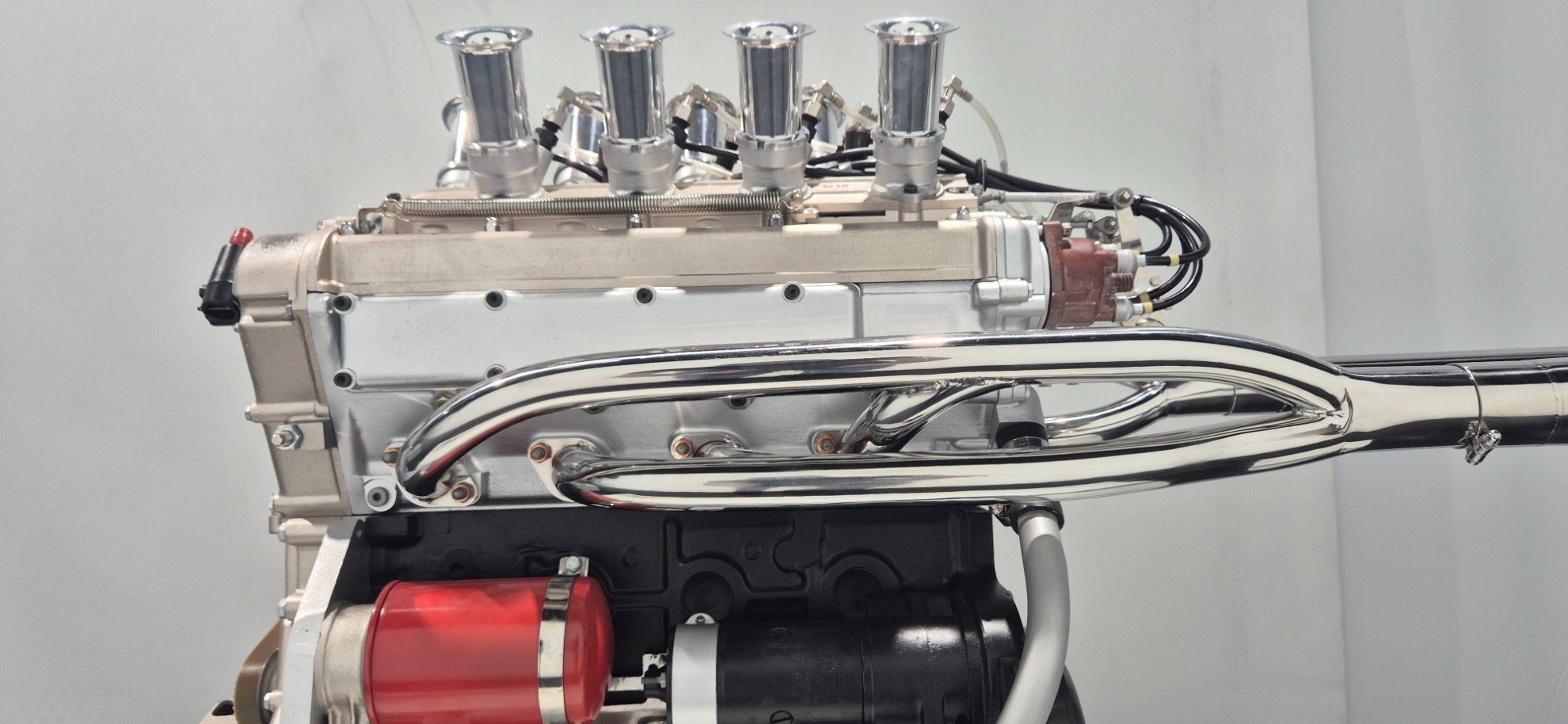

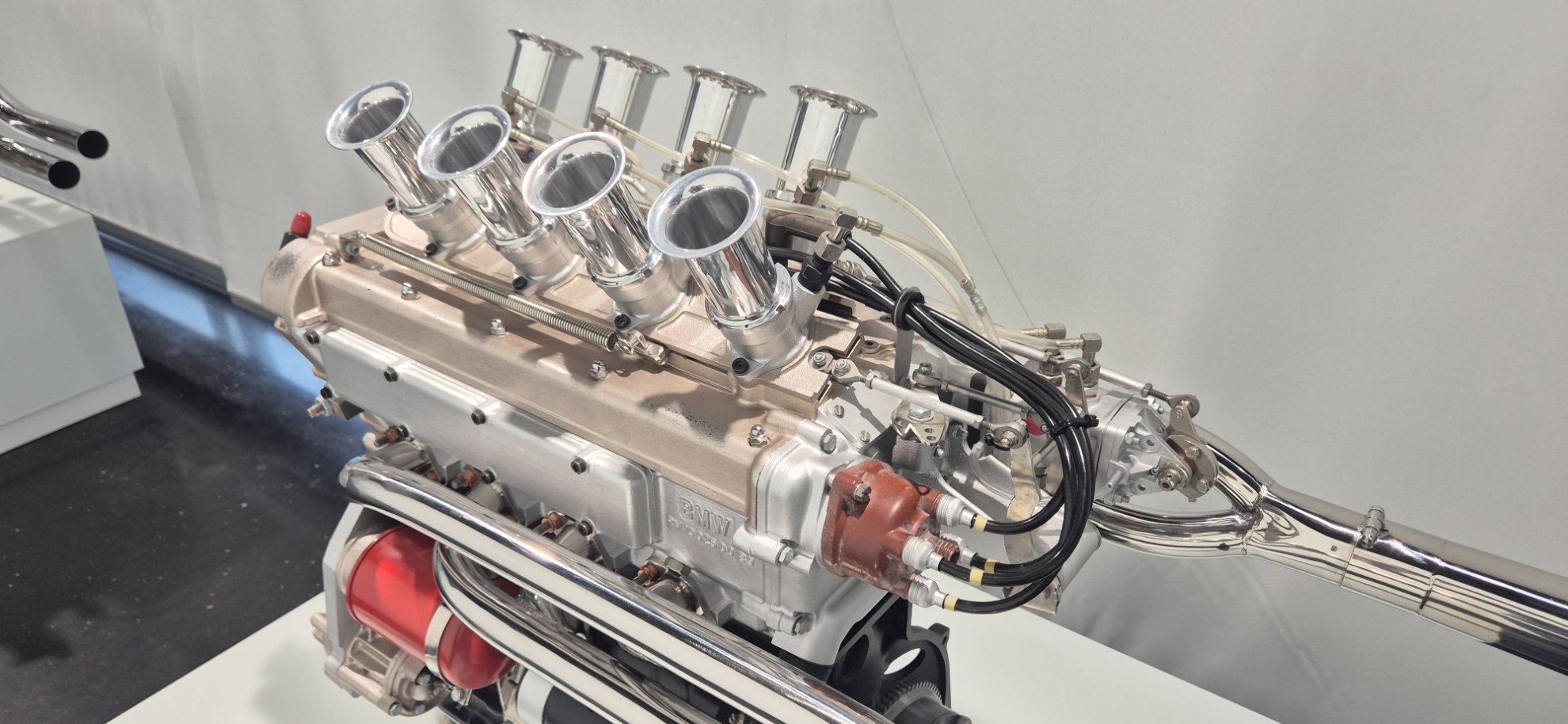

Ludwig Apfelbeck ?
Paul, you got it
historicmotorsportcentral.com
www.fritzenfest.hu
www.lolaheritage.co.uk
#Tech – The BMW Apfelbeck Cylinder Head.
Was ist das ? Yeah, that’s what comes to mind when seeing an Apfelbeck cylinder head. A very unusual design seen in the sixties in motor sport and particularly with BMW and their early Formul…
historicmotorsportcentral.com
A BMW M10 Apfelbeck története |
www.fritzenfest.hu
Lola Heritage
www.lolaheritage.co.uk
i have the book Wege zum hochleistungs viertakt motor , and i think the concept of radial valves is still used in the KTM 650?
If I remember correctly one of the Italians also tried a similar layout of the valves, maybe Alfa or Maserati?
The first I heard of this Apfelbeck head/engine was in a book about "best racing engines" or something like that. It may have been "legendary car engines" as that looks familiar.
The first I heard of this Apfelbeck head/engine was in a book about "best racing engines" or something like that. It may have been "legendary car engines" as that looks familiar.
Legendary Car Engines: Inner Secrets of the World's 20 Best by Simister, John: New hardcover (2004) | Positive Tutors
ISBN: 9780760319413 - hardcover - Motorbooks Intl - 2004 - Condition: New - Legendary Car Engines: Inner Secrets of the World's 20 Best
www.abebooks.com
Bill Kearley
Supporter
I win, It's a kit, a pretty model from a foreign land !!

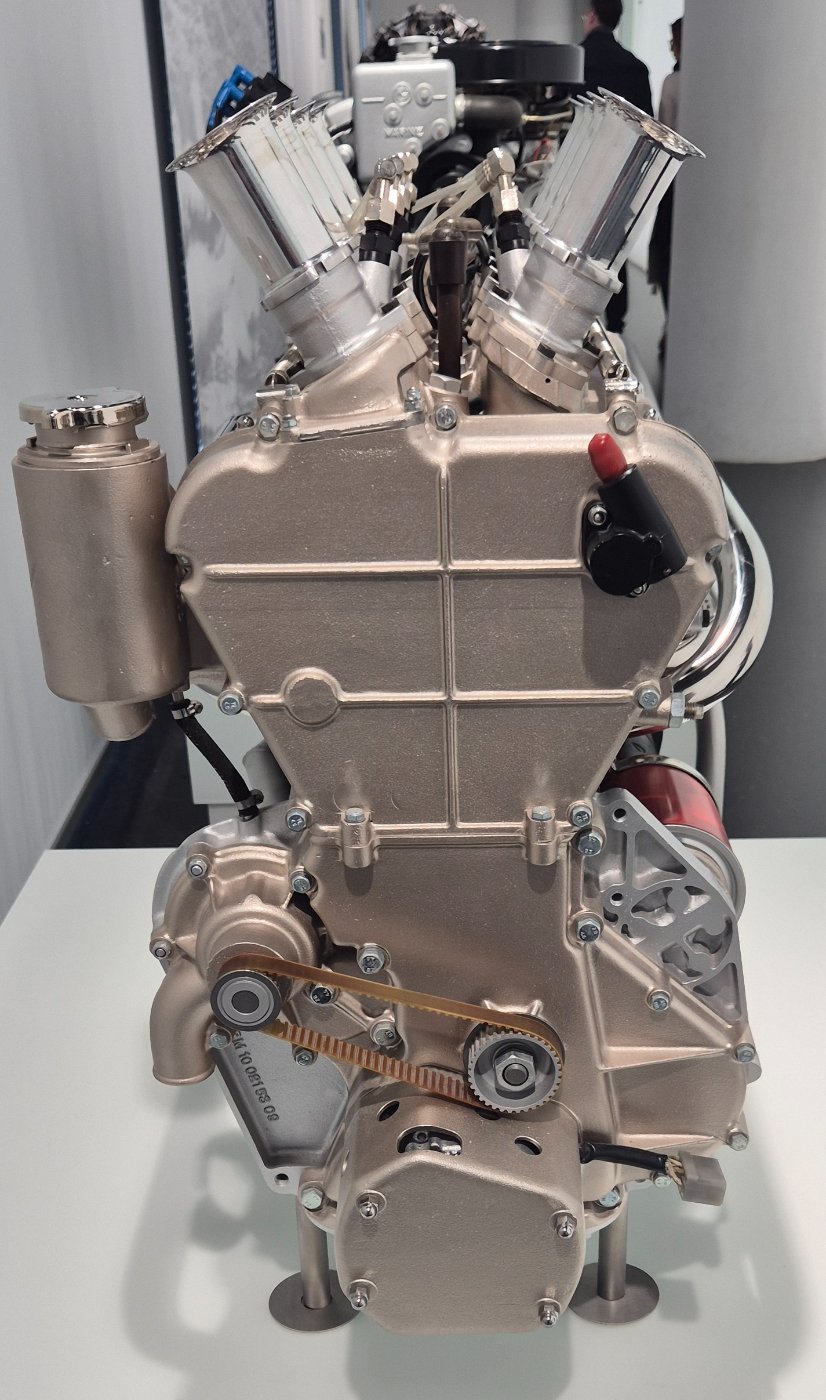

Exactly, the interesting part is the diametral valve positioning, which means that there's always a intake- and an exhaustvalve sitting opposite to each other and beside each other in an hemispherical combustion chamber. Check how the valve train is designed......
But it did not sucseed - great in theory but too many other disadvantages.

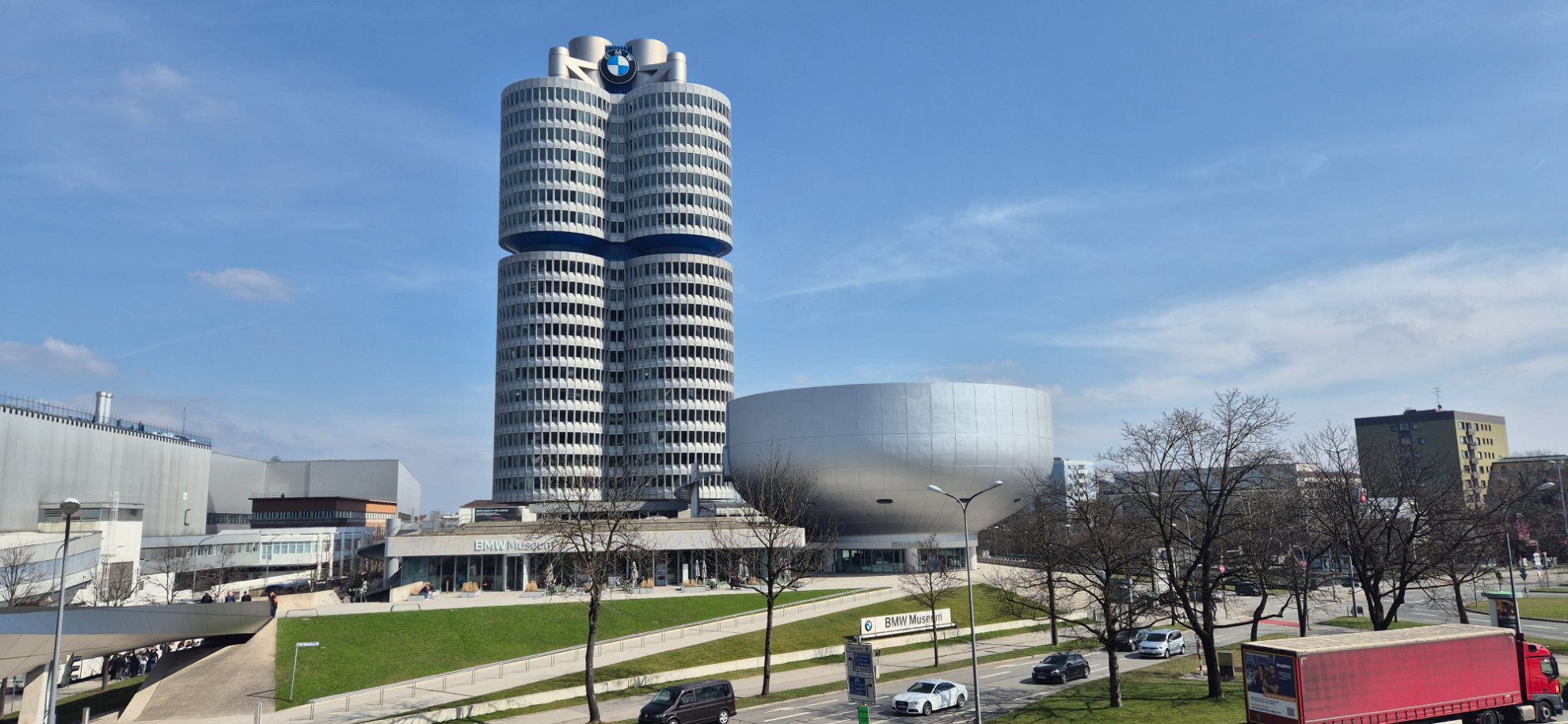

Yes, I have the very same book but never saw that engine in reality until last week at the BMW museum in Munich.
Not sure about the KTM.... radial valves is one thing but the diametral orientation the other.....
